7360-K117 2-Bag Bagwell Upgrade (RAL 7021 Black)
| Part Number | Description | |
|---|---|---|
| 497-0527952 | 7360-K117 2-Bag Bagwell Upgrade Kit (RAL 7021 Black) | |
| 497-0522278 | Bagwell Assembly - 2-Bag | |
| 497-0468420 | Assembly- NCR Scale Controller | |
| 009-0006593 | Screws M4 x 10 (2 pcs) | |
| 497-0511500 | Fastlane R6 Load Cell and Cable (4 pcs) | |
| 006-8624052 | Screw - 18-8 SS, M5 x 12 mm, Pan Head, Phillips, External-Tooth Washer (8 pcs) | |
| 009-0006599 | Screw Hex M6 x 12 MC COMB (4 pcs) | |
| 795-0264907 | Panel - Outer - Bagwell (RAL 7021 Black) | |
| 795-0262907 | Panel - LH Front - 2-Bag (RAL 7021 Black) | |
| 795-0263107 | Panel - RH Front - 2-Bag (RAL 7021 Black) | |
| 795-0217107 | Backsplash - Mount (RAL 7021 Black) (2 pcs) | |
| 006-8627026 | Nut - M5 Serrated Flange, Hex (8 pcs) | |
| 795-0217307 | Backsplash - 2-Bag (RAL 7021 Black) | |
| 007-7022121 | Screw MA Flat Poz M4 8L (2 pcs) | |
| 497-0527258 | Scale Tray Frame - 2-Bag | |
| 497-0506269 | Scale Tray Plastic - 2 Bag | |
| 497-0421485 | Power Strip, IEC 4-POS, Plastic Case | |
| 497-0532327 | Skirt - 2-Bag BOM Package | |
| 006-8624541 | Screw M6 Size, 12 mm Length, 1 mm Pitch Pan Head Phillips Thread Locking Patch (6 pcs) | |
| 497-0508973 | Tree Clip for 0.197 in Hole Diameter 0.50 Lng 0.63 Head OD (12 pcs) | |
| * 497-0445077 | Cable: (Black) 4M USB + Power (12 V) to 2x4 Latch-N-Lok | |
| * 795-0281607 | Hole Cover Label - (RAL 7021 Black) | |
| * 007-9714414 | Tie Strap Plain 5.60 LG (20 pcs) | |
| 497-0506283 | Bracket - Bumper Brace - 2-Bag (2 pcs) | |
| 497-0517634 | Black Nylon Spacer 10.0Mm Od X 6.3Mm Id X 28.00Mm L (8 Pcs) | |
| 497-0519707 | Bumper - Lower - End | |
| 497-0519708 | Bumper - Lower - 2Bag (2 Pcs) | |
| * 497-0426042 | Bag - 2 and 3.5 Bagger, LHC and RHC, Input Belt | |
| 009-0007088 | Serrated Nut - Self Locking (M6, 6.0) (8 Pcs) | |
| 009-0007087 | Serrated Nut - Self Locking (M4, 4.2) (2 Pcs) | |
| 006-8612049 | Washer - #8, External Tooth, Zinc Plated Steel | |
| * 497-0423108 | Instructions-Kit (Reference Sheet) | |

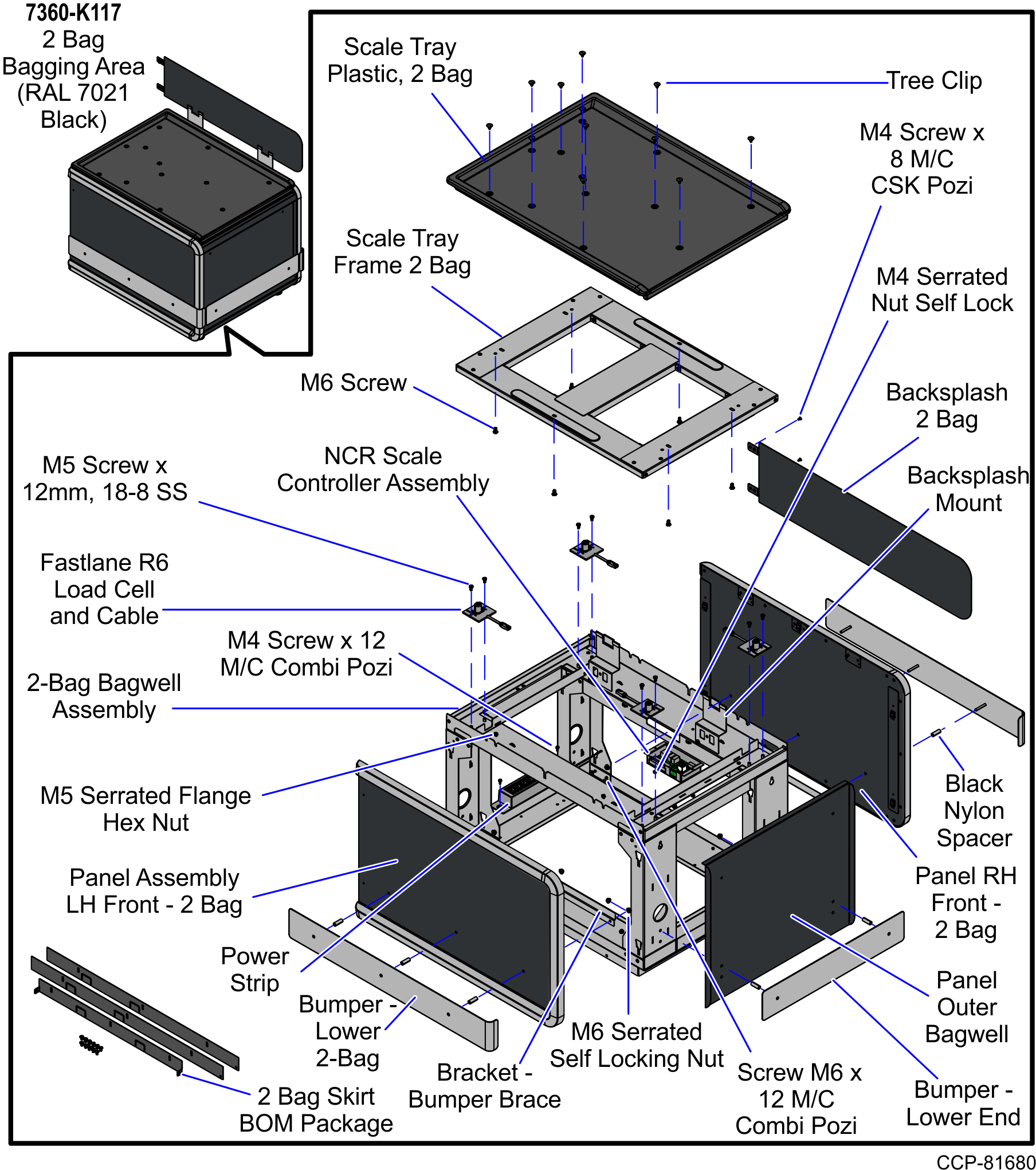

* Items marked with an asterisk are not called out on the image.
