Loading Notes in the Loader Cassette

Note

When loading notes in the Loader Cassette, ensure that they are properly aligned to reduce the chance of improper refill cycle.

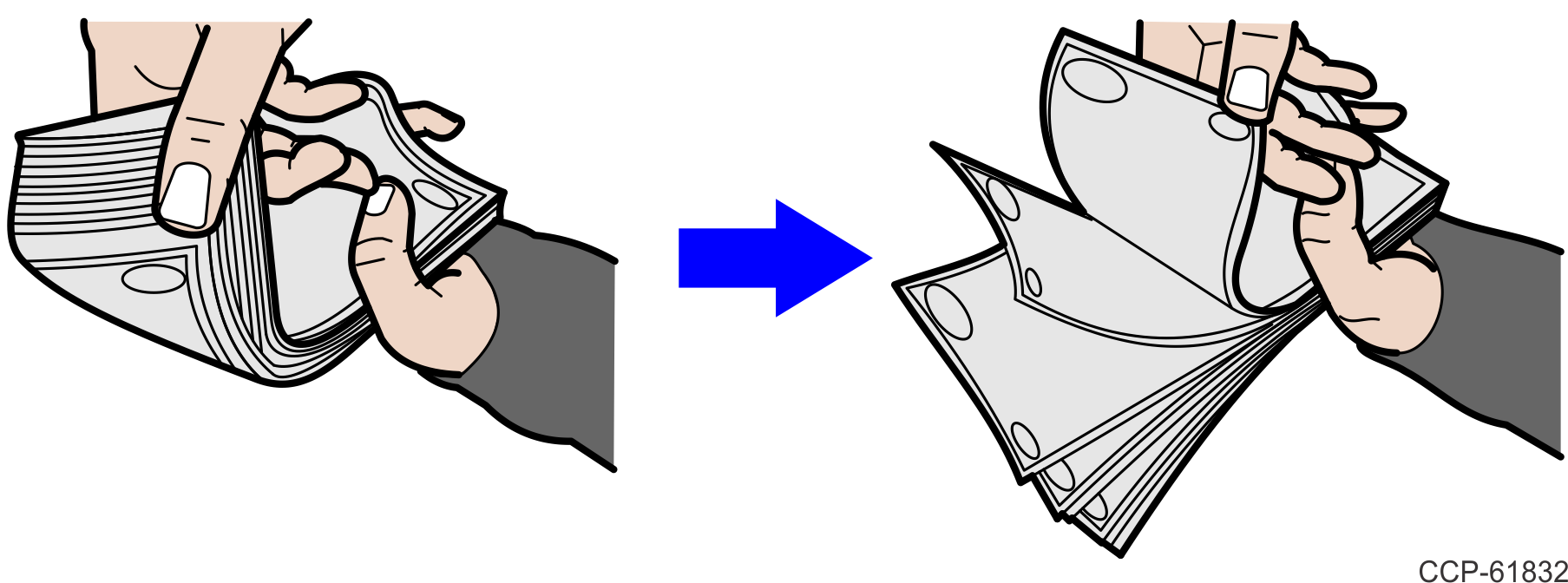

  1. With stacks of fairly new notes, fan through the stack several times to separate notes from one another.

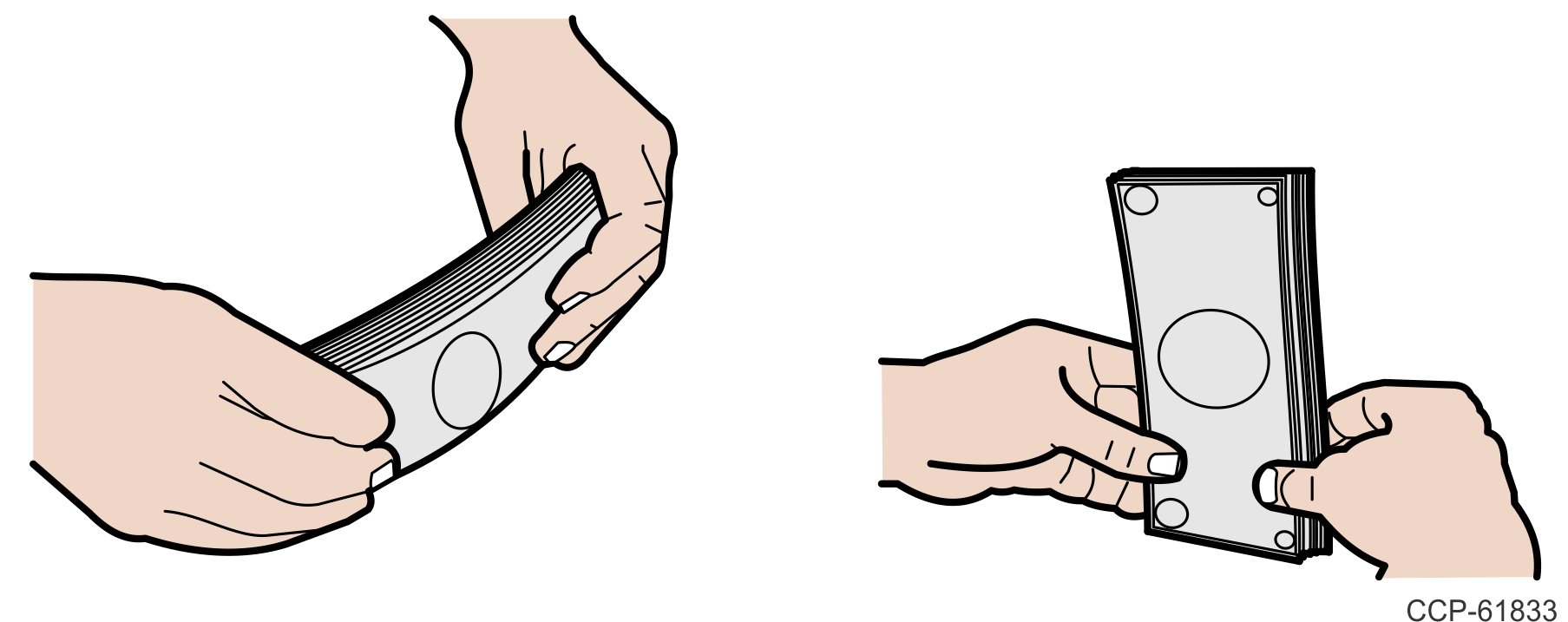

  2. Align the notes lengthwise and widthwise.

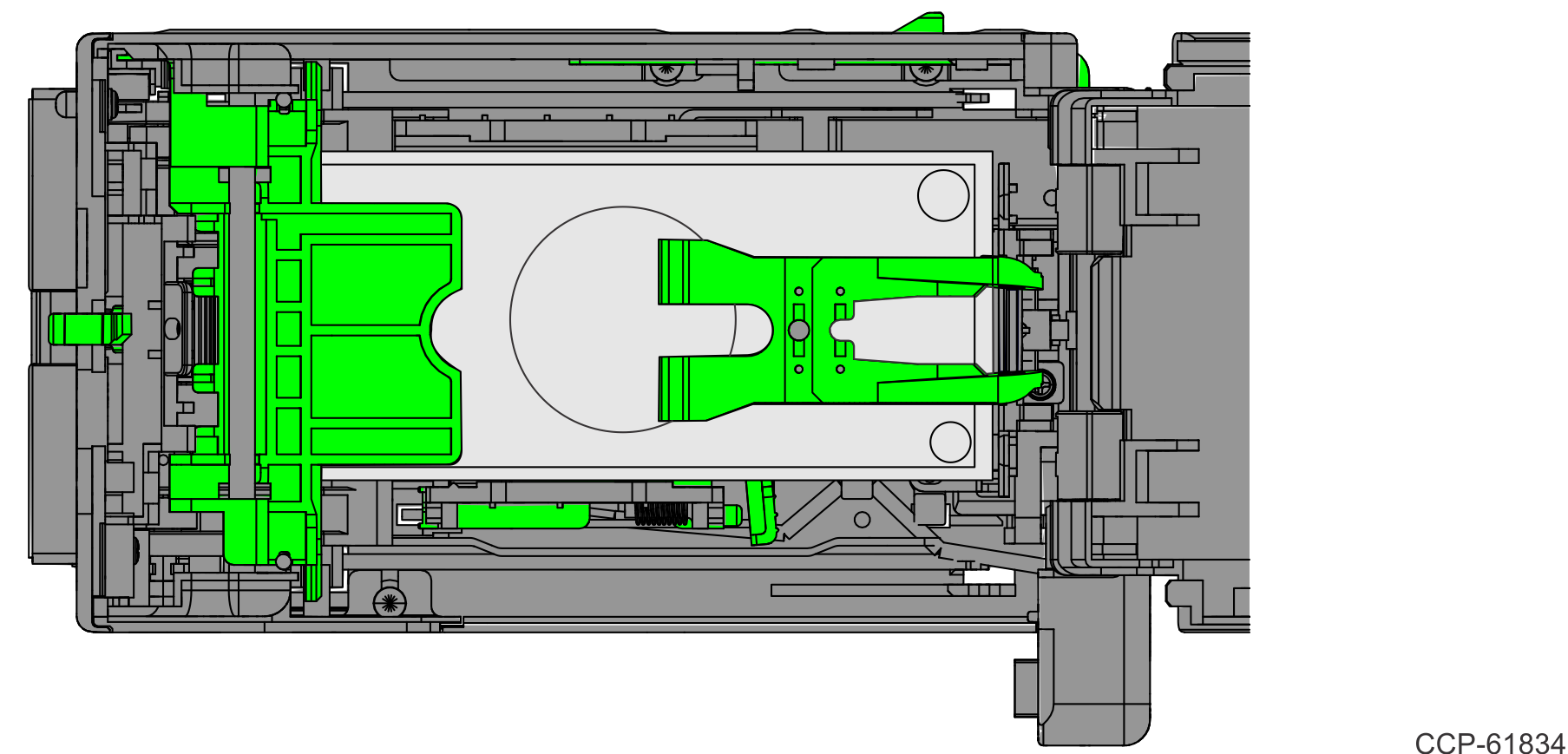

  3. Insert the notes into the Loader Cassette. Ensure that they correctly fit between the side guides.

  4. Lower the Pressure Plate and Rear Guide.

  5. Close the Loader Cassette lid.
