Installing the Rear Cosmetic Cover

To install the Rear Cosmetic Cover, follow these steps:

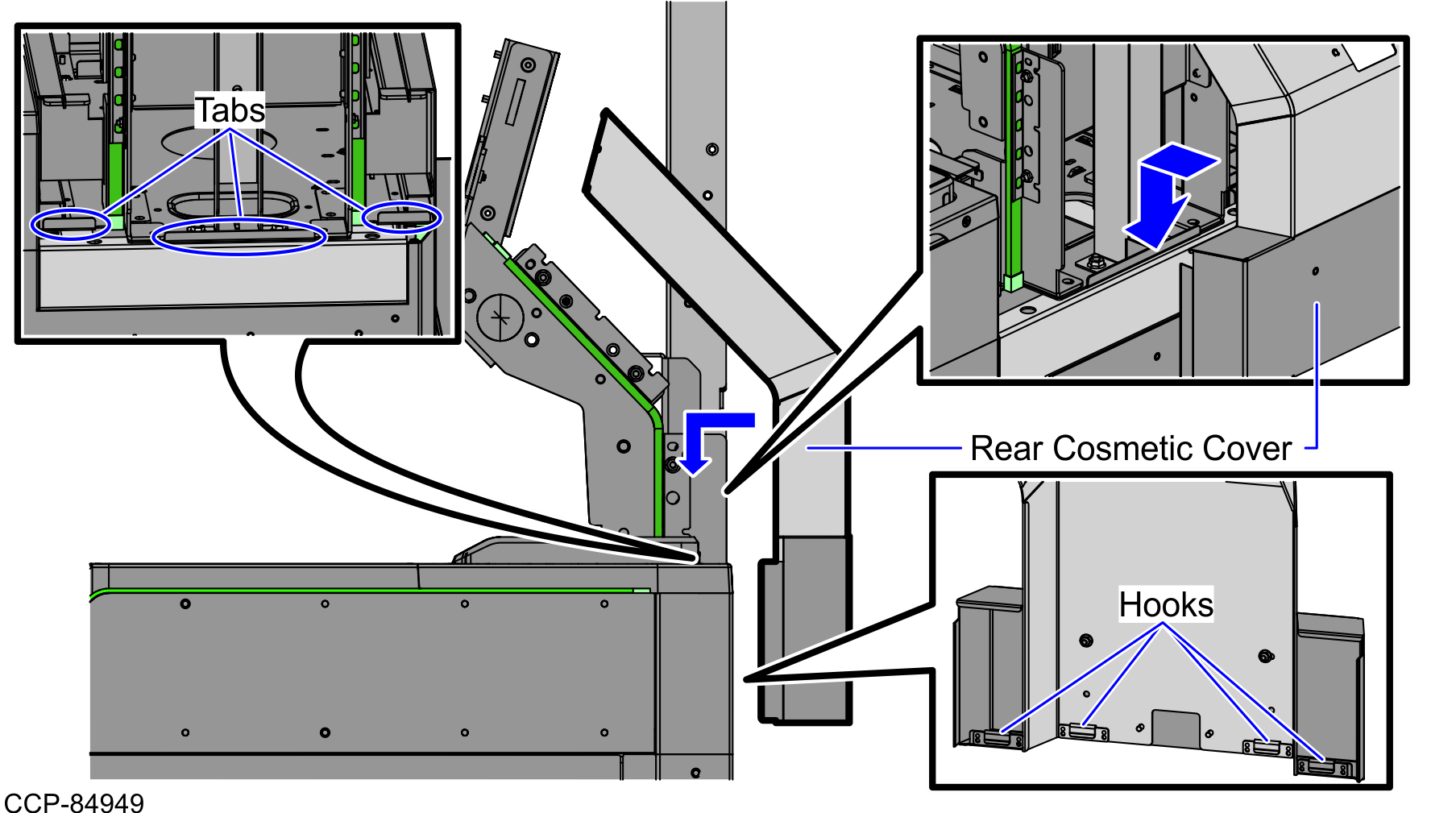

1. Attach the Rear Cosmetic Cover to the Scanner/Scale Bucket.
   Note

   Ensure that all four (4) hooks are engaged to the tabs.



2. Secure the Rear Cosmetic Cover to the Tower Frame with two (2) screws.
