Removing the Rear Cosmetic Cover

To remove the Rear Cosmetic Cover, follow these steps:

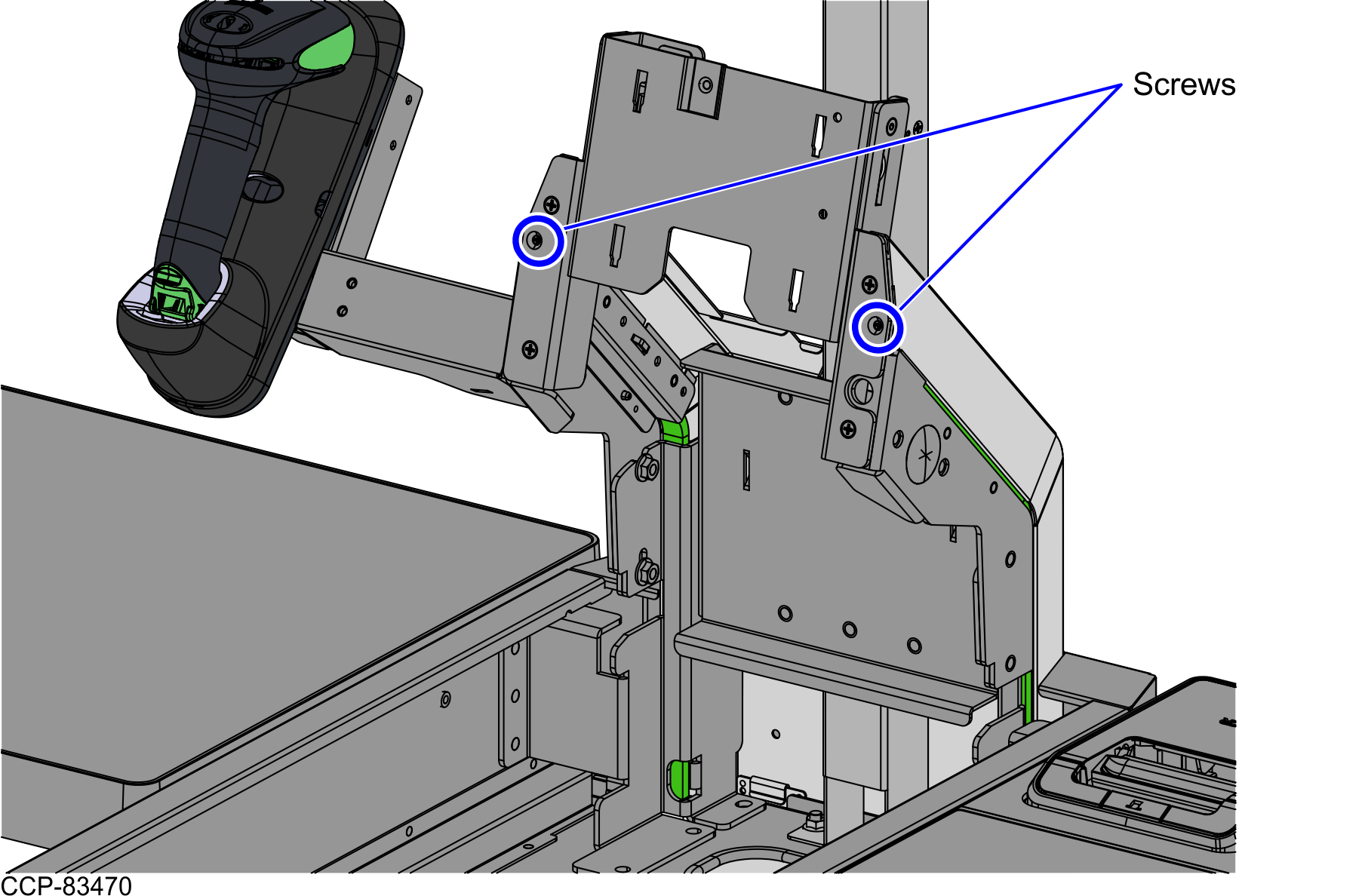

1. Remove two (2) screws to detach the Rear Cosmetic Cover from the Tower Frame.

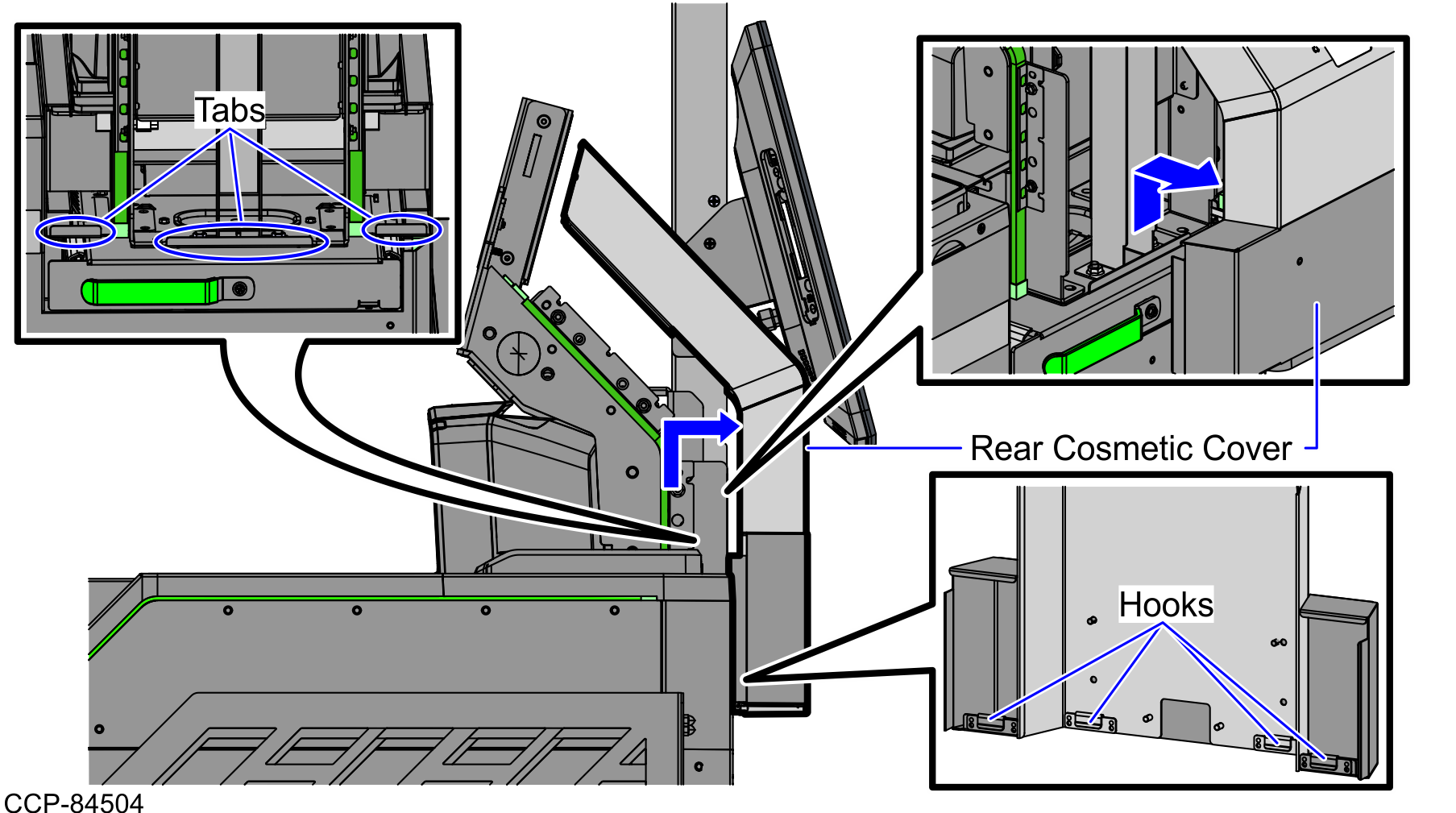

2. Detach the Rear Cosmetic Cover from the Scanner/Scale Bucket by disengaging four (4) hooks from the Scanner Bucket tabs.
