Routing the PIN Pad cable
To route the PIN Pad cable, follow these steps:
- Access the Retail I/O Box. For more information, refer to Accessing the Retail I/O Box.
- Connect the PIN Pad device cable to the 12V powered USB port E of the Retail I/O Box.
- Secure the PIN Pad device cable on the Retail I/O Box Mounting Bracket using a cable tie, as shown in the image below.
- Do the following:
- Secure the PIN Pad device cable on the lance bridges of the Core (Cabinet).
- Route the cable up and through the cable access hole on the Top Plate, as shown in the image below.

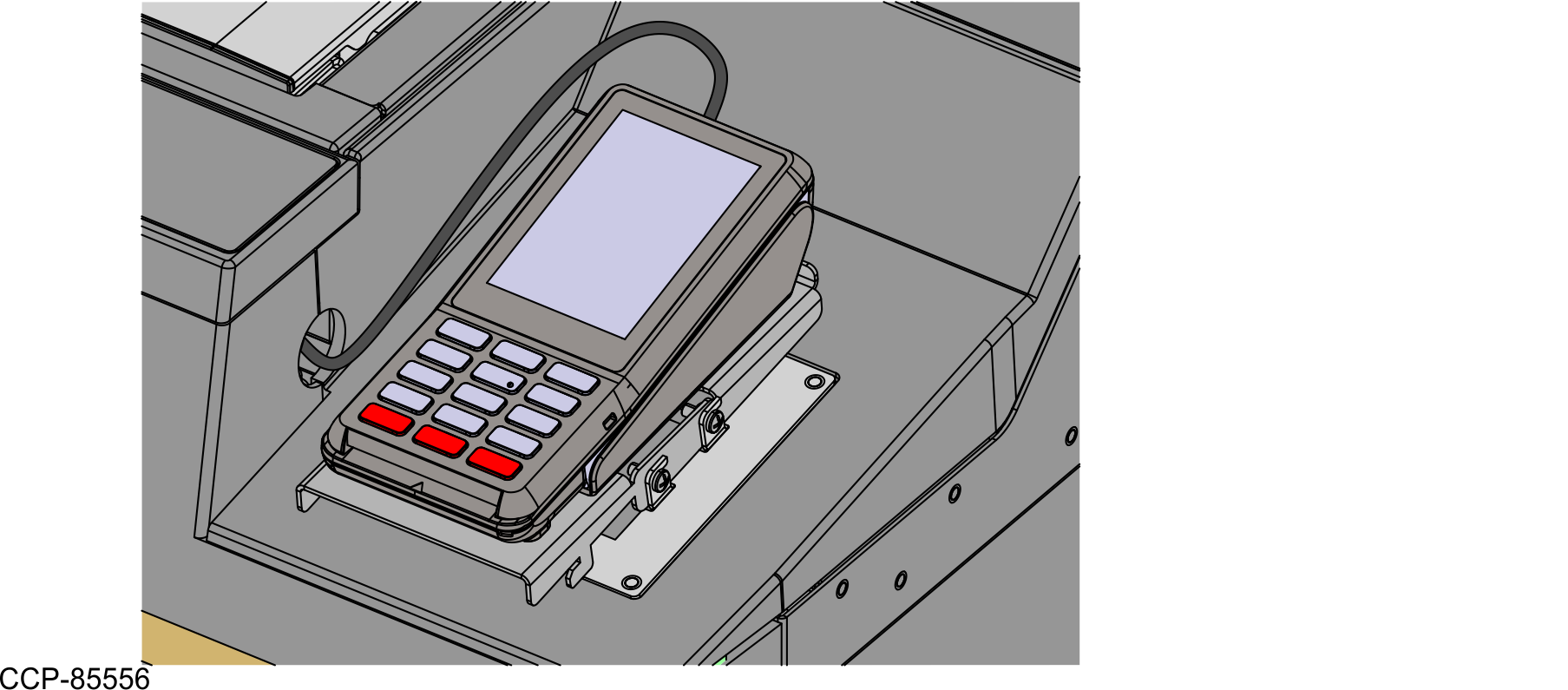

- Connect the PIN Pad cable to the Verifone P400 PIN Pad.
- Slide the Coin Recycler back in place.
- Close and lock the Cosmetic Door using a key.
Fixed Configuration
Hybrid Configuration
