Removing the Secondary Display

To remove the Secondary Display from the Tower Cabinet, follow these steps:

1. Do the following:

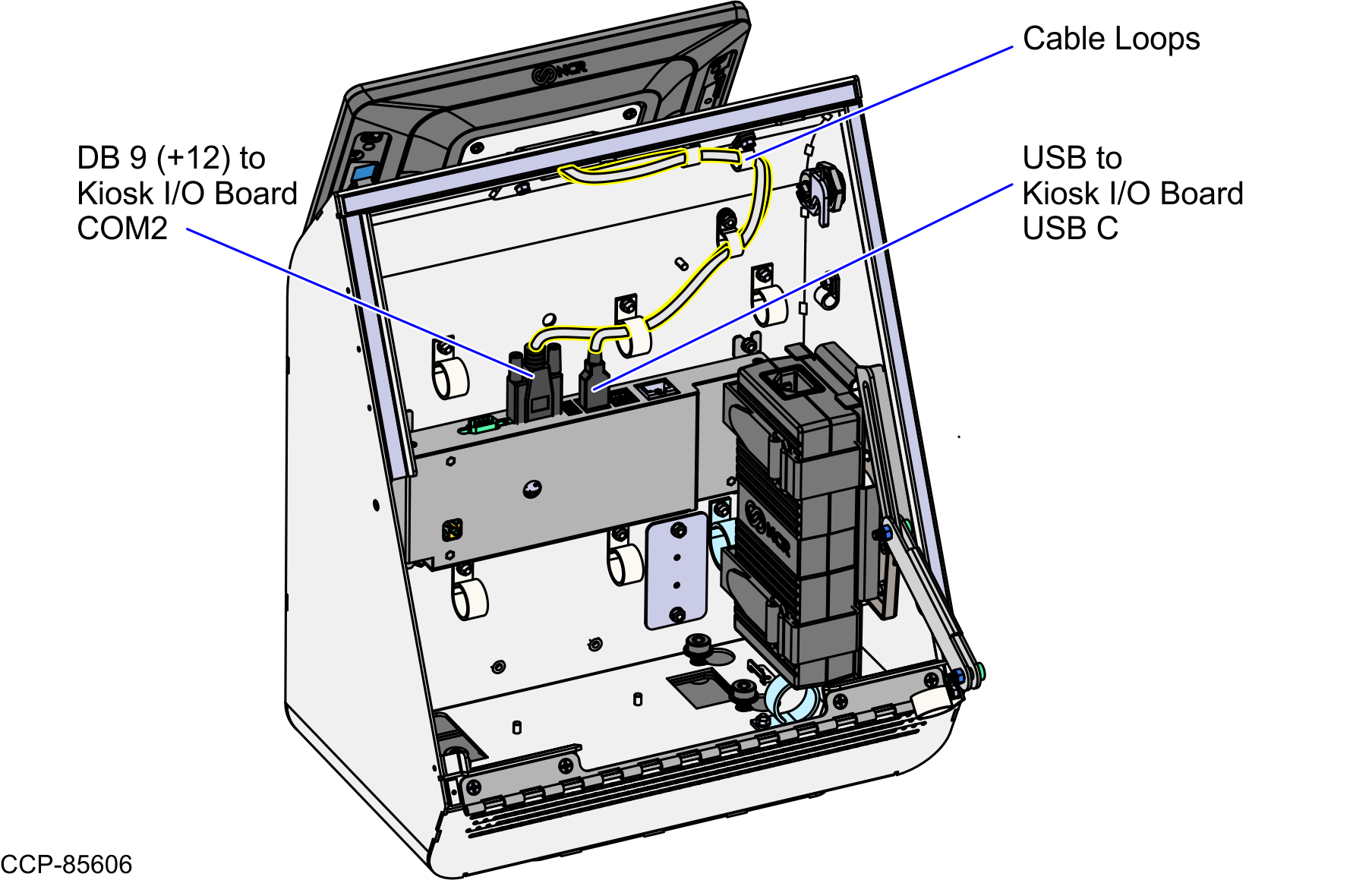

   • Disconnect the DB9/USB Split Cable from the KIO Board, as shown in the image below.

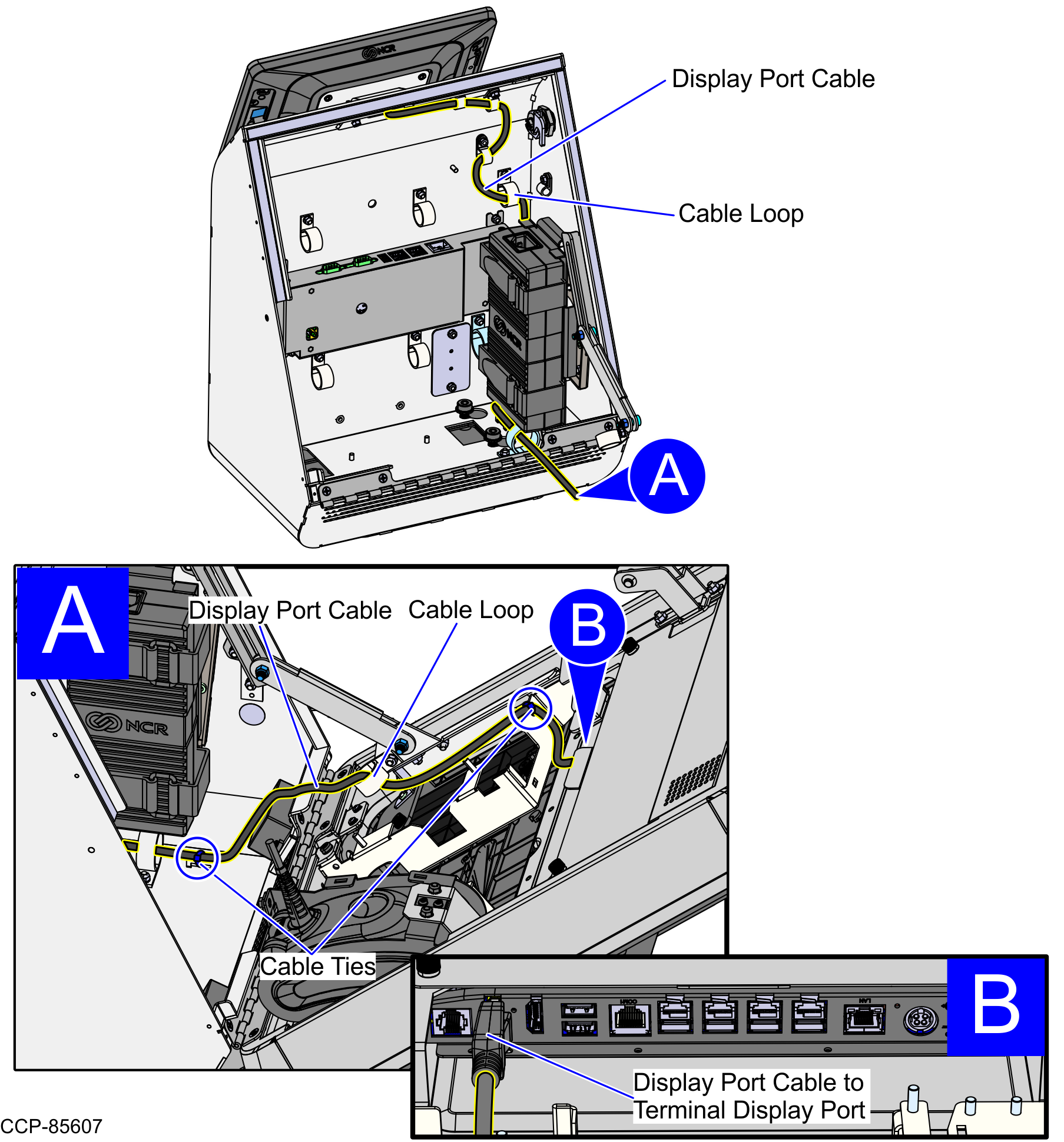

   • Disconnect the Display Port Cable from the Terminal Display Port, as shown in the image below.

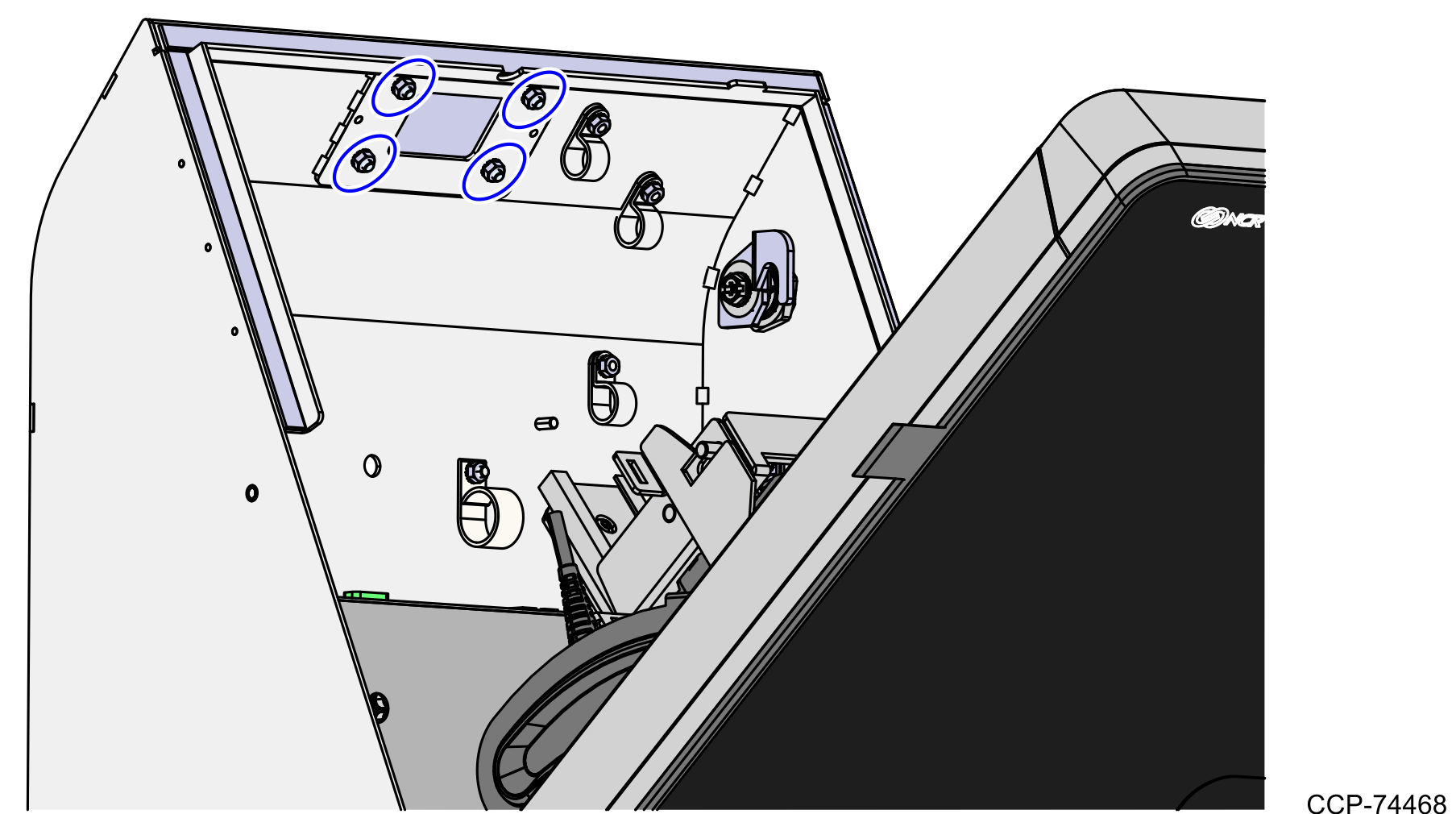

2. Remove four (4) nuts securing the Secondary Display while holding the assembly.



3. Detach the Secondary Display assembly while pulling out the cables through the Tower Cabinet hole as shown in the image below.
