Installation Procedure

To install the 7371-K599 Coin Purge Bin follow these steps:

1. Unlock and open the Cosmetic Door using a key.

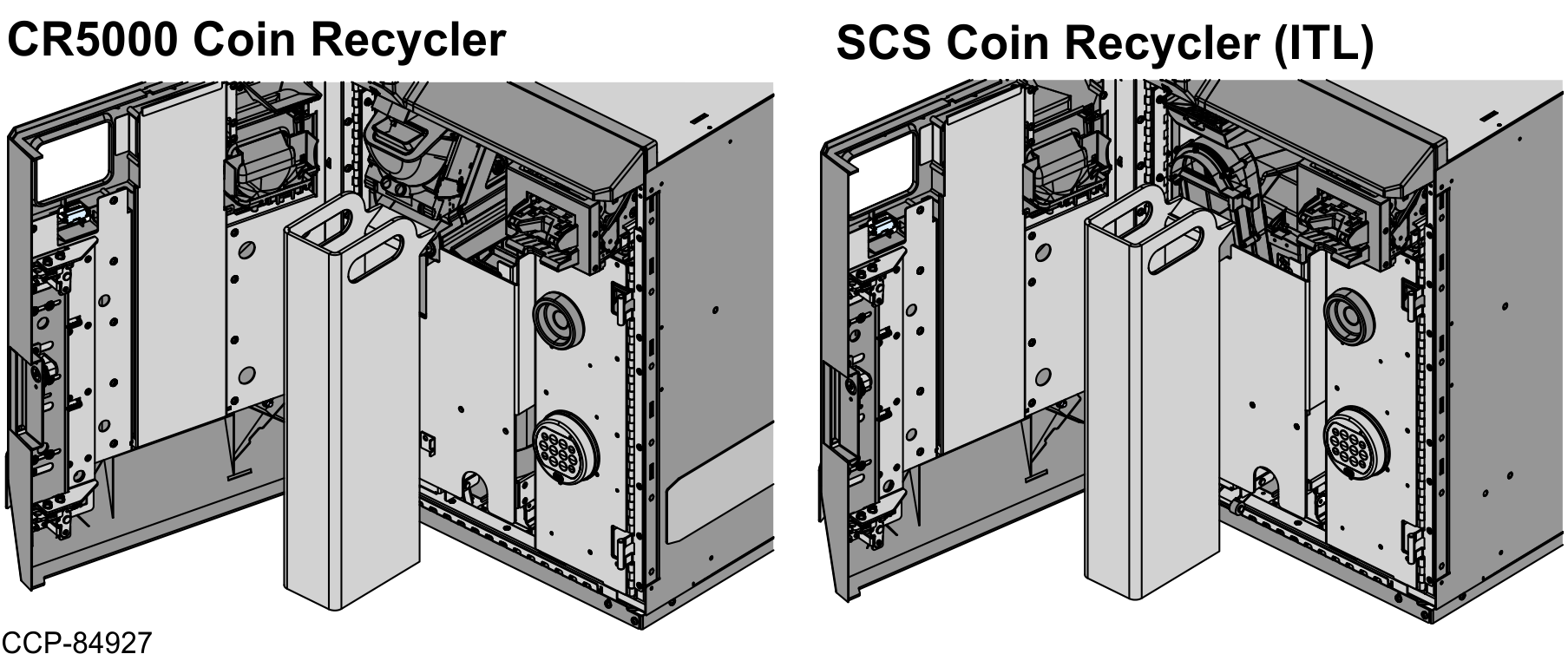

2. Place the Coin Purge Bin in front of the Coin Recycler.
   Note

   To avoid coins from spilling out of the bin, ensure that the bin snout is aligned with the coin exit.



3. Dispense the coins into the Coin Purge Bin using the Profile Manager Lite (PML) application. For more information, refer to Profile Manager Lite (PML) User Guide for ADD 3.X (B005-0000-2279).
   Note

   If the Cash Management function is installed, it can be used to dispense all coins from the Coin Recycler.
