Installing the PIN Pad Arm Extender on Full Function Self-Checkout (7371) Configuration
To install the PIN Pad Arm Extender, follow these steps:
- Do the following, if necessary:
- Remove the PIN Pad device.
- Remove the PIN Pad Mount.
NoteDepending on the type of PIN Pad device and PIN Pad mount used in the SelfServ Checkout unit, refer to the 7371 Kit Repository for more information on removing or installing the specific PIN Pad device and mount.
- Mount the PIN Pad Arm Extender onto the PIN Pad Arm and secure using two (2) screws, as shown in the images below.

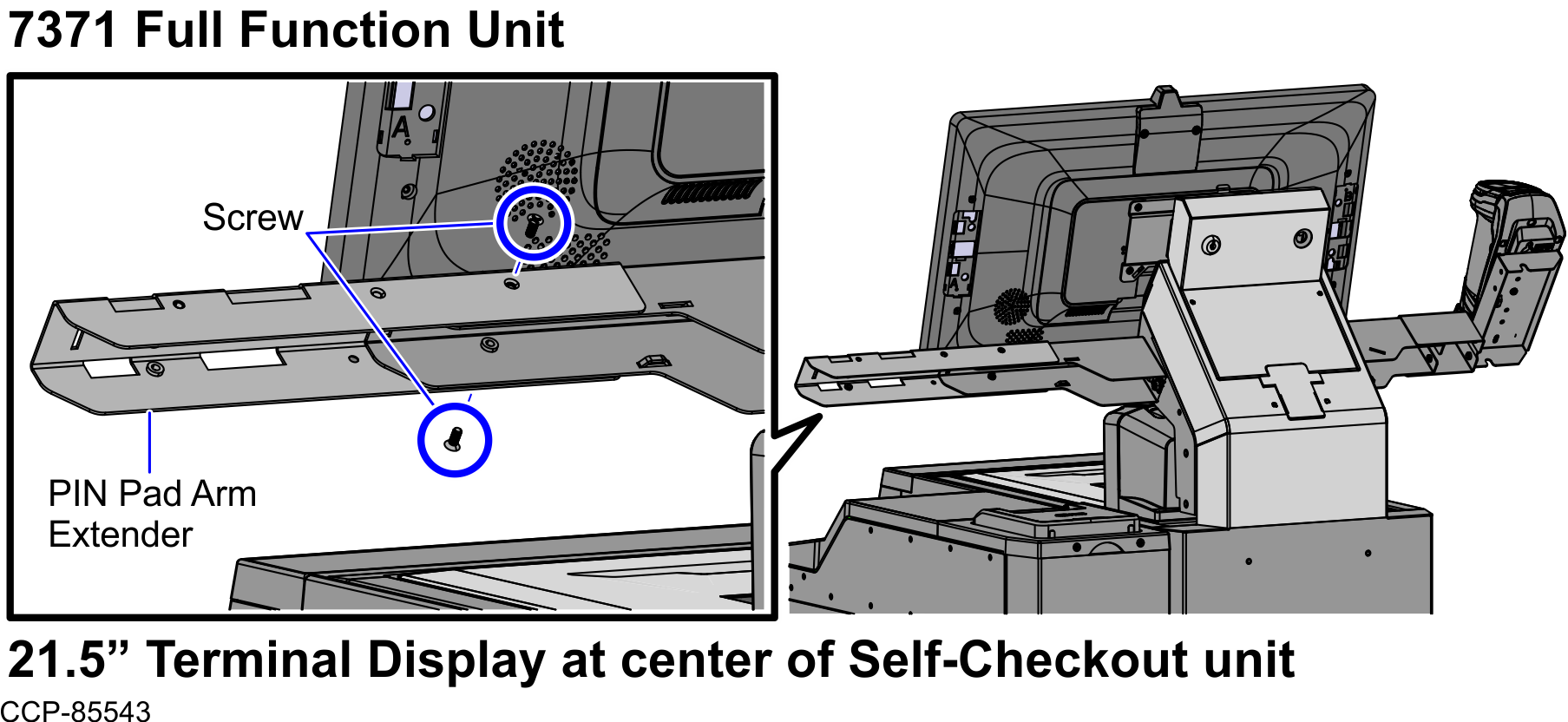

- 21.5" Terminal Display installed in landscape orientation is positioned at the center relative to the Self-Checkout unit.

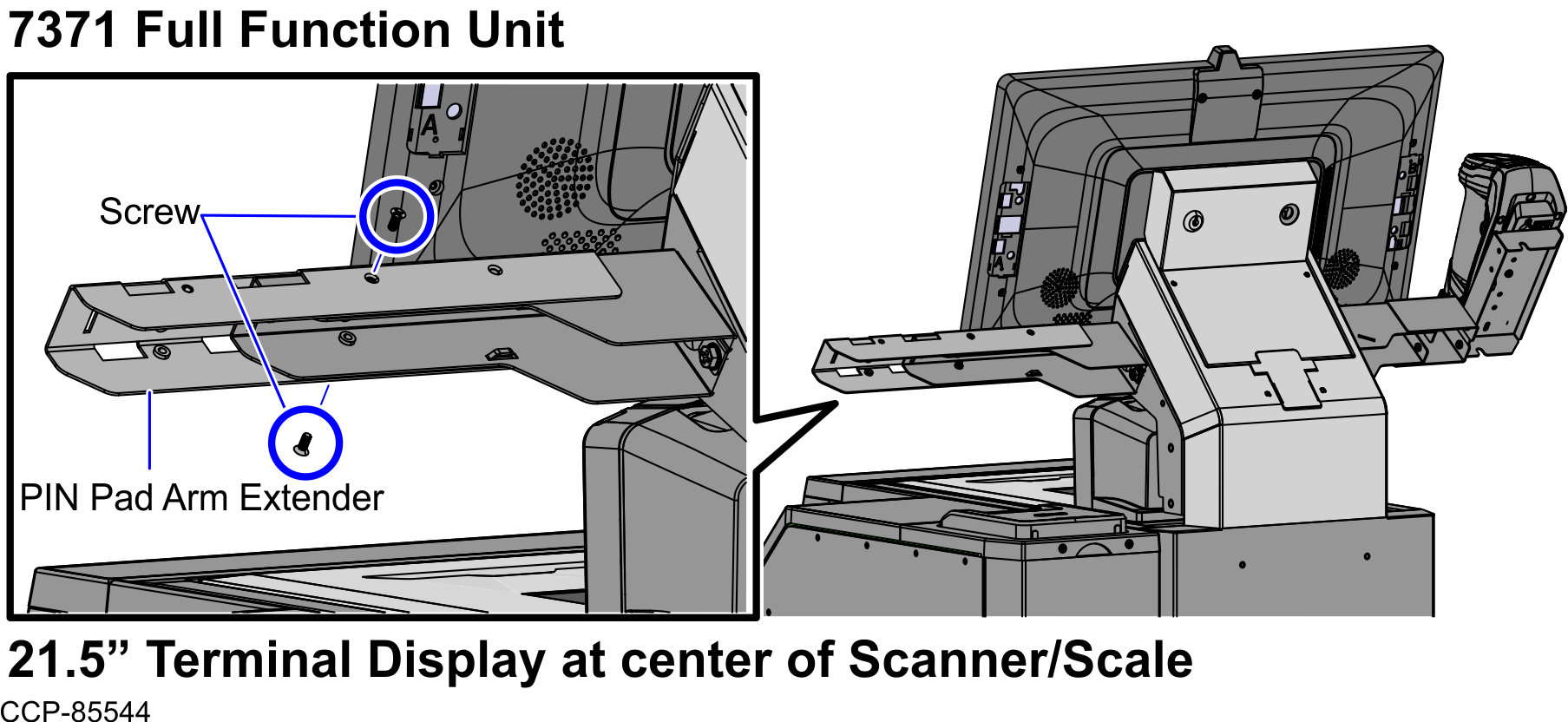

- 21.5" Terminal Display installed in landscape orientation is positioned at the center relative to the Scanner/Scale.
- 21.5" Terminal Display installed in landscape orientation is positioned at the center relative to the Self-Checkout unit.
- Do the following:
- Install the PIN Pad Mount.
- Install the PIN Pad device.
NoteDepending on the type of PIN Pad device and PIN Pad mount used in the SelfServ Checkout unit, refer to the 7371 Kit Repository for more information on removing or installing the specific PIN Pad device and mount.
