Installing the Handheld Scanner Arm

To install the Handheld Scanner Arm, follow these steps:

Note

For the purpose of illustration only, the procedure shows installing the Handheld Scanner Arm on a Right-hand (RH) orientation unit.

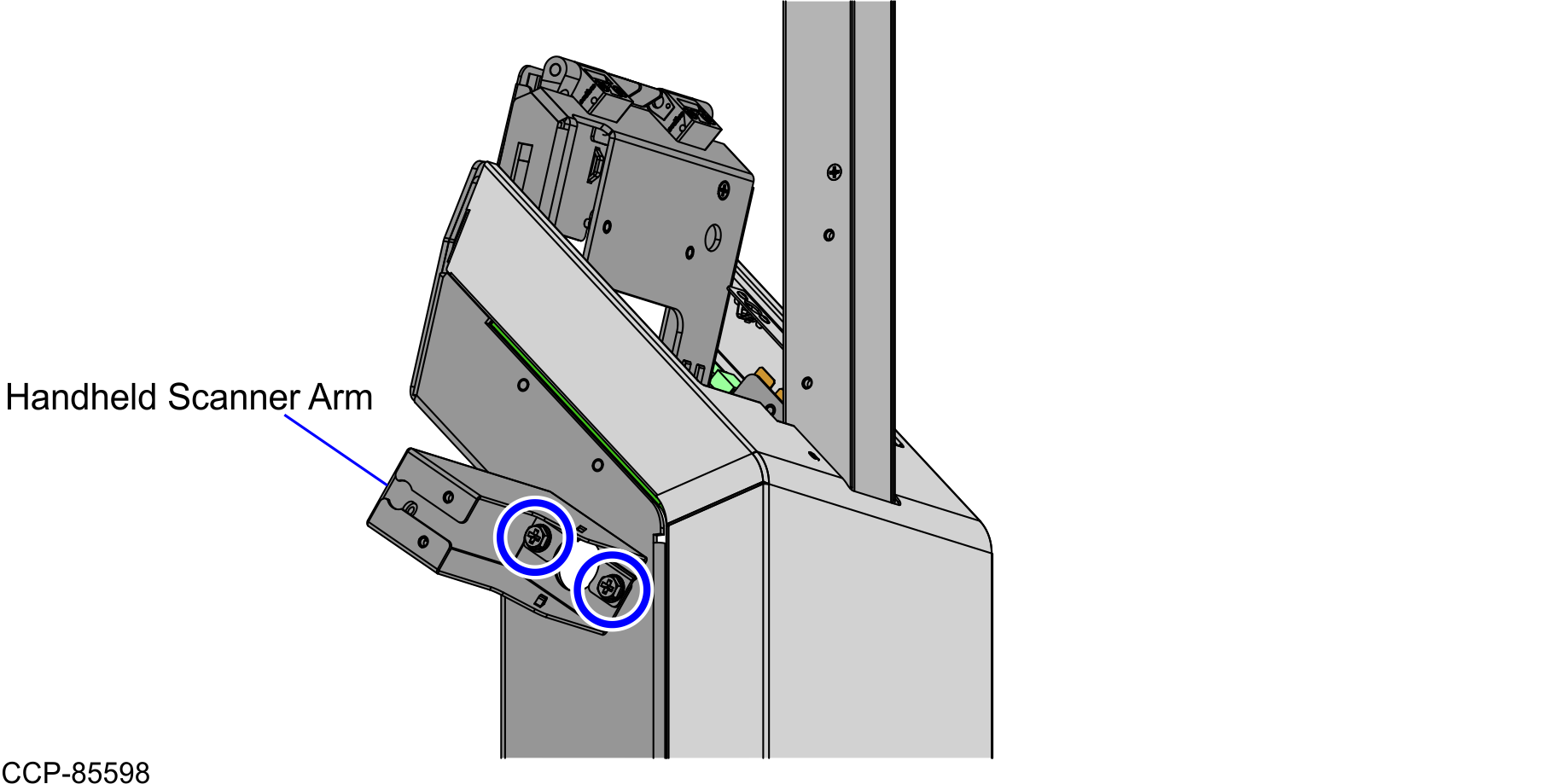

  1. Attach the Handheld Scanner Arm to the Tower Cabinet using two (2) screws, as shown in the image below.

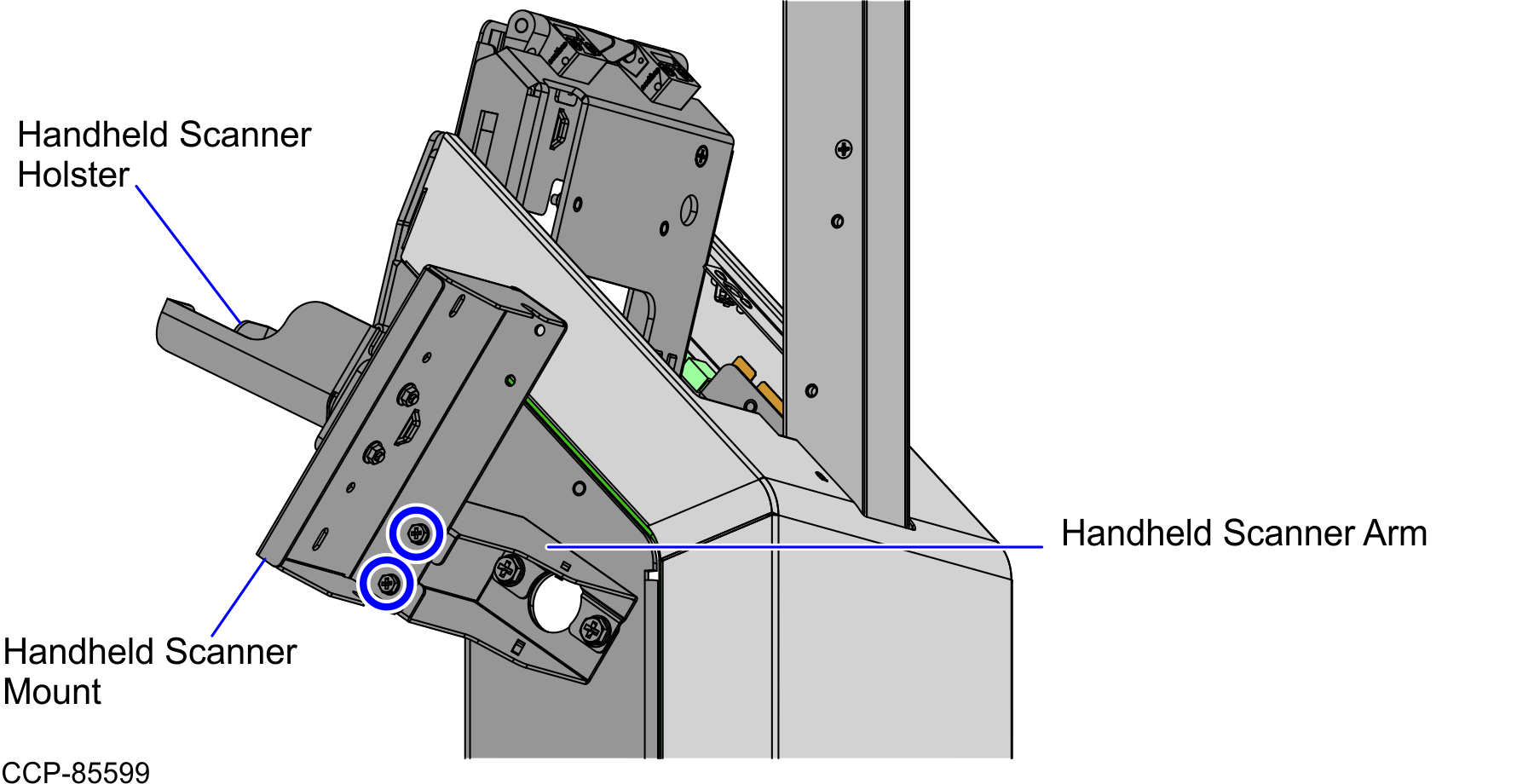

  2. Attach the Handheld Scanner Mount and Holster assembly to the Handheld Scanner Arm using two (2) screws, as shown in the image below.
