7372-K001 Bagwell Spacer (Card Only)
This publication provides instructions for installing the 7372-K001 Bagwell Spacer (Card Only) kit to the NCR Voyix SCO Hardware (7372) unit.

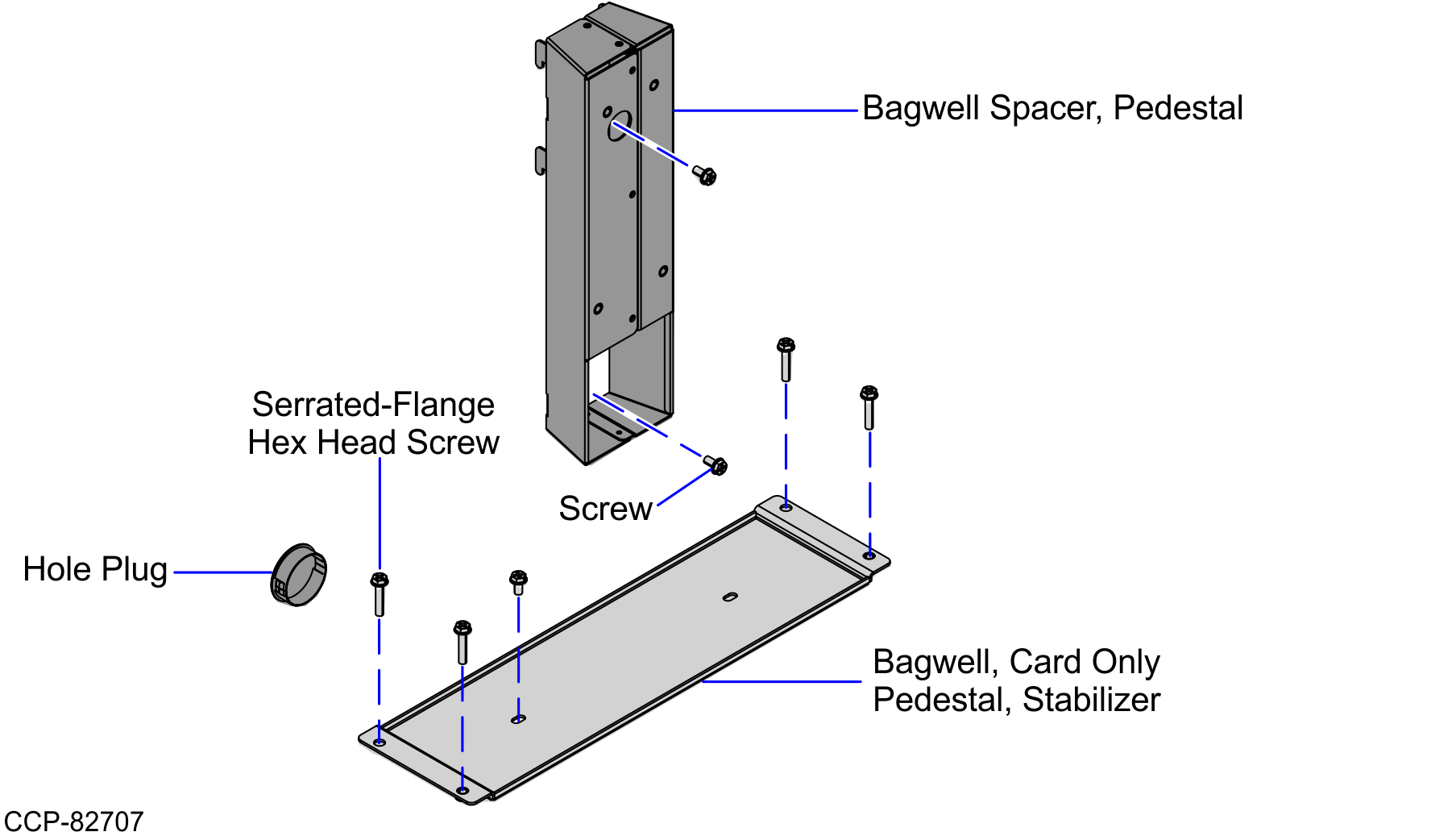

Kit Contents
| Part Number | Description |
|---|---|
| 497-0533875 | 7372-K001 Bagwell Spacer - Card Only |
| 497-0533475 | Bagwell Spacer, Pedestal |
| 009-0006599 | Screw Hex M6 X 12 Mc Comb (2 Pcs) |
| * 497-0534350 | Hole Cover Label, 7372 Bagwell |
| 006-8628595 | Metric Screw Machine-Thread Forming-Combined Hex/Pozi Head – M6 X 30 (4 Pcs) |
| 497-0534264 | Bagwell, Card Only Pedestal, Stabilizer |
| 006-8614720 | Hole Plug, 1.75" diameter |
| * 497-0423108 | Instructions Kit (Reference Sheet) |
* Items marked with an asterisk are not called out on the image.
