Removing the Power Supply bracket

To remove the Power Supply Bracket, follow these steps:

1. Turn off the NCR Self-Checkout hardware and software systems.
2. Open the Pedestal Cabinet. For more information, refer to Opening the Pedestal Cabinet.
3. Remove one (1) nut to detach the Power Supply assembly from the rear cabinet wall, as shown in the image below.

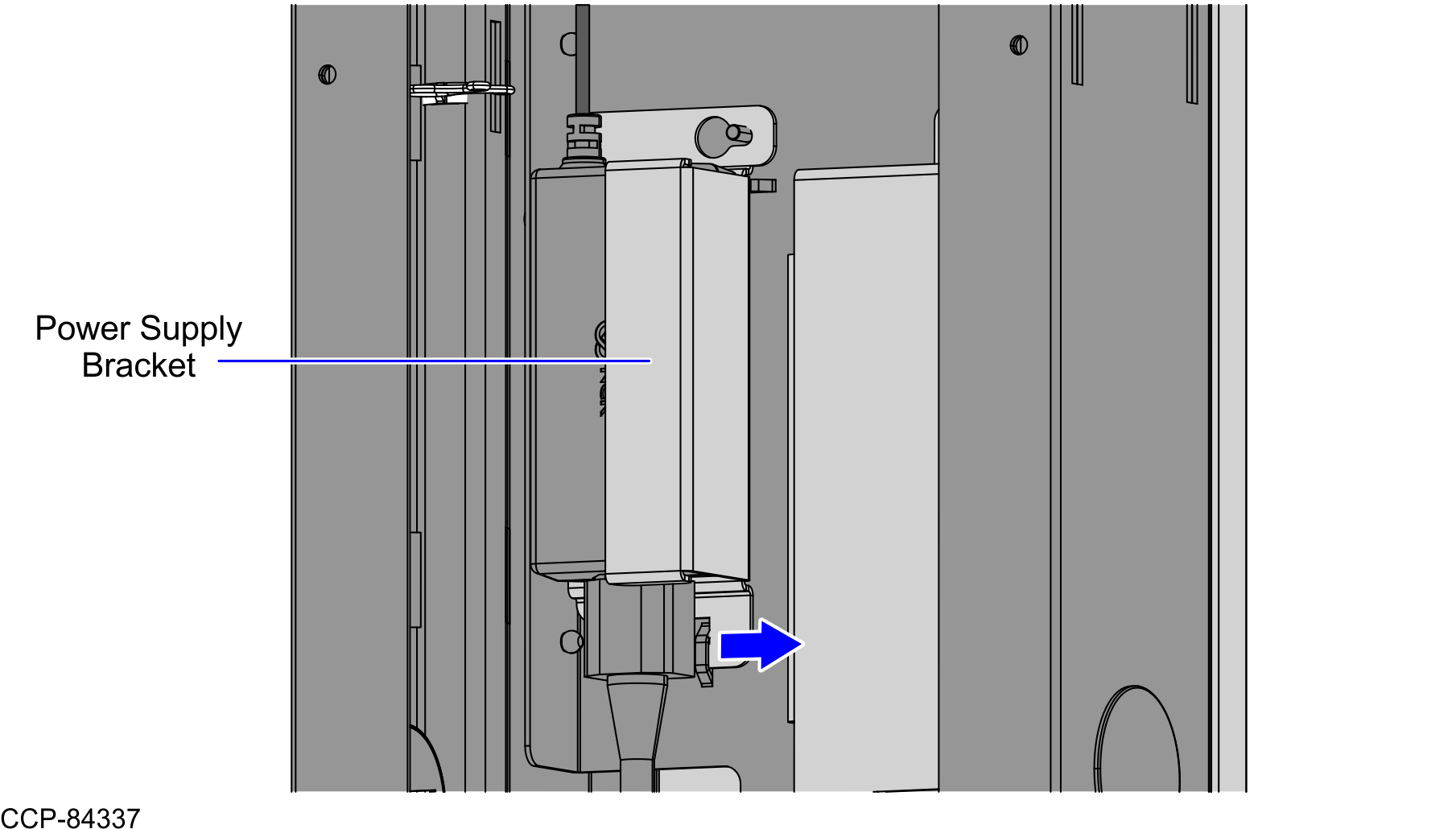

4. Disengage the Power Supply assembly from the lance bridge of the rear cabinet wall, as shown in the image below.



5. Disconnect the cables.
