Routing the uNav and Coupon cables

To route the uNav and Coupon cables, follow these steps:

1. Route and bundle the excess uNav cable along the side frame using cable ties, and then connect to the KIO Board(USB 2.0 Type A Port A), as shown in the image below.

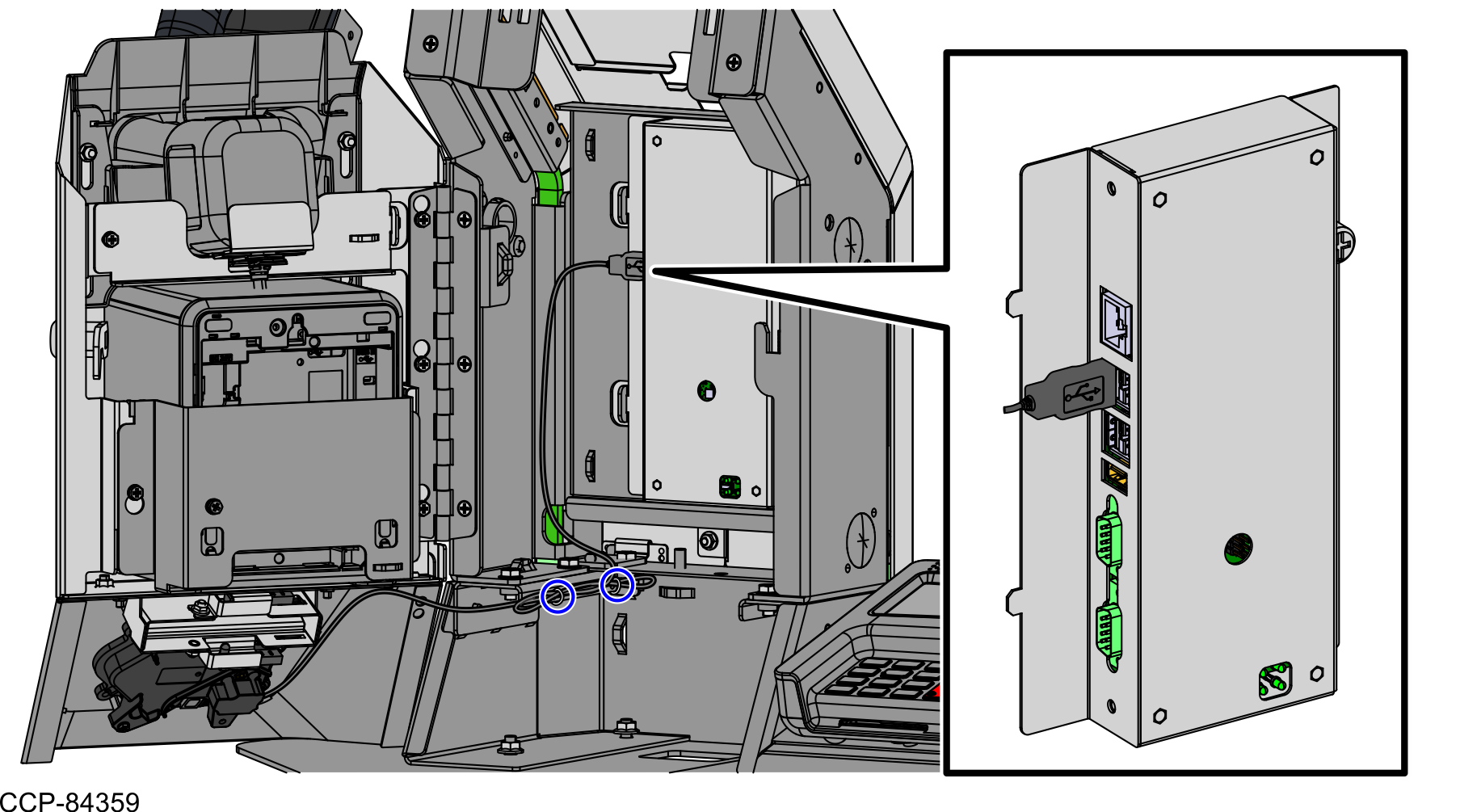

2. Route and bundle the excess Coupon cable along the Tower Frame using cable ties, and then connect to the KIO Board (CPN SENSOR Port), as shown in the image below.
