7372-K500 Input Shelf (Half Depth - Card Only)
This publication provides instructions for installing the 7372-K500 Input Shelf (Half Depth - Card Only) kit on either of the following 7372 NCR Voyix SCO configurations:
- 7372 NCR Voyix SCO Card Only
- 7372 NCR Voyix SCO Kiosk
Note
The maximum load capacity for the 7372-K500 Input Shelf (Half Depth-Card Only) is 50 lbs.
Kit Contents
| Part Number | Description |
|---|---|
| 497-0533850 | 7372-K500 Input Shelf (Half Depth- Card Only) |
| 497-0536773 | Input Shelf - Half Depth - Co |
| 497-0533337 | Support, Main, Input, Card Only |
| 497-0536774 | Support, Bottom, Input, Card Only (2 Pcs) |
| 497-0536775 | Gusset - Input Shelf - Co |
| 006-8628707 | Serrated Nut - Self Locking (M6, 6 (14 Pcs) |
| 497-0533364 | Input Shelf Plastic |
| 497-0533363 | Top, Shelf |
| 006-8628739 | Screw Hex M6 X 12 Mc Comb |
| 006-8628552 | Screw - Flat Head, Phillips, M6X1, 50Mm Long, Zinc (2 Pcs) |
| 006-8628553 | Screw - Flat Head, Phillips, M6X1, 30Mm Long, Zinc (4 Pcs) |
| * 006-8628981 | Screw, 8-32 X 3/4", Typ F Thd Cutting, Slt Hex Wshr Hd, Zn Stl |

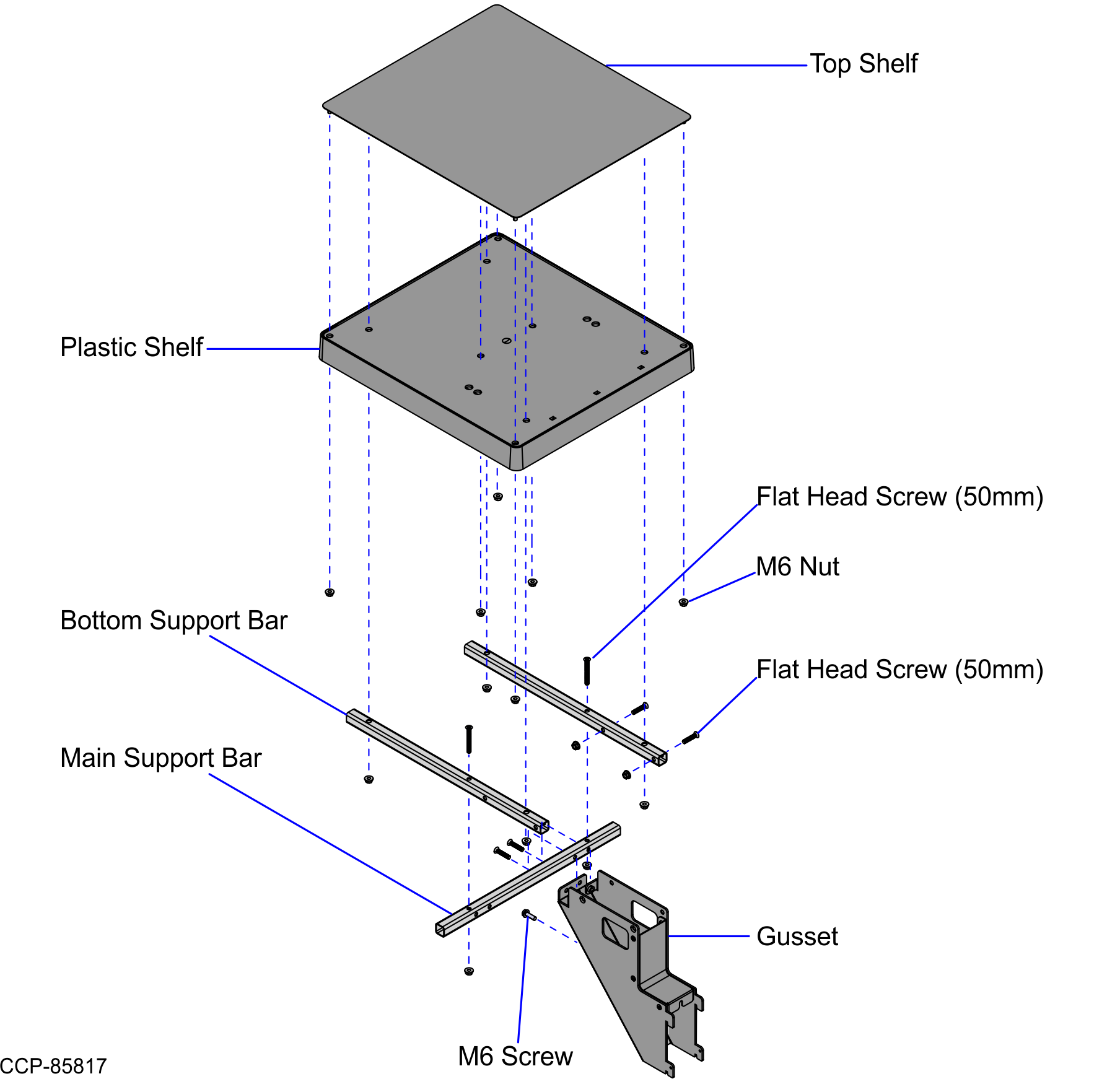

* Items marked with an asterisk are not called out on the image.
