Removing the Note Recycler (Glory RAD-375)

To remove the Note Recycler (Glory RAD-375), follow these steps:

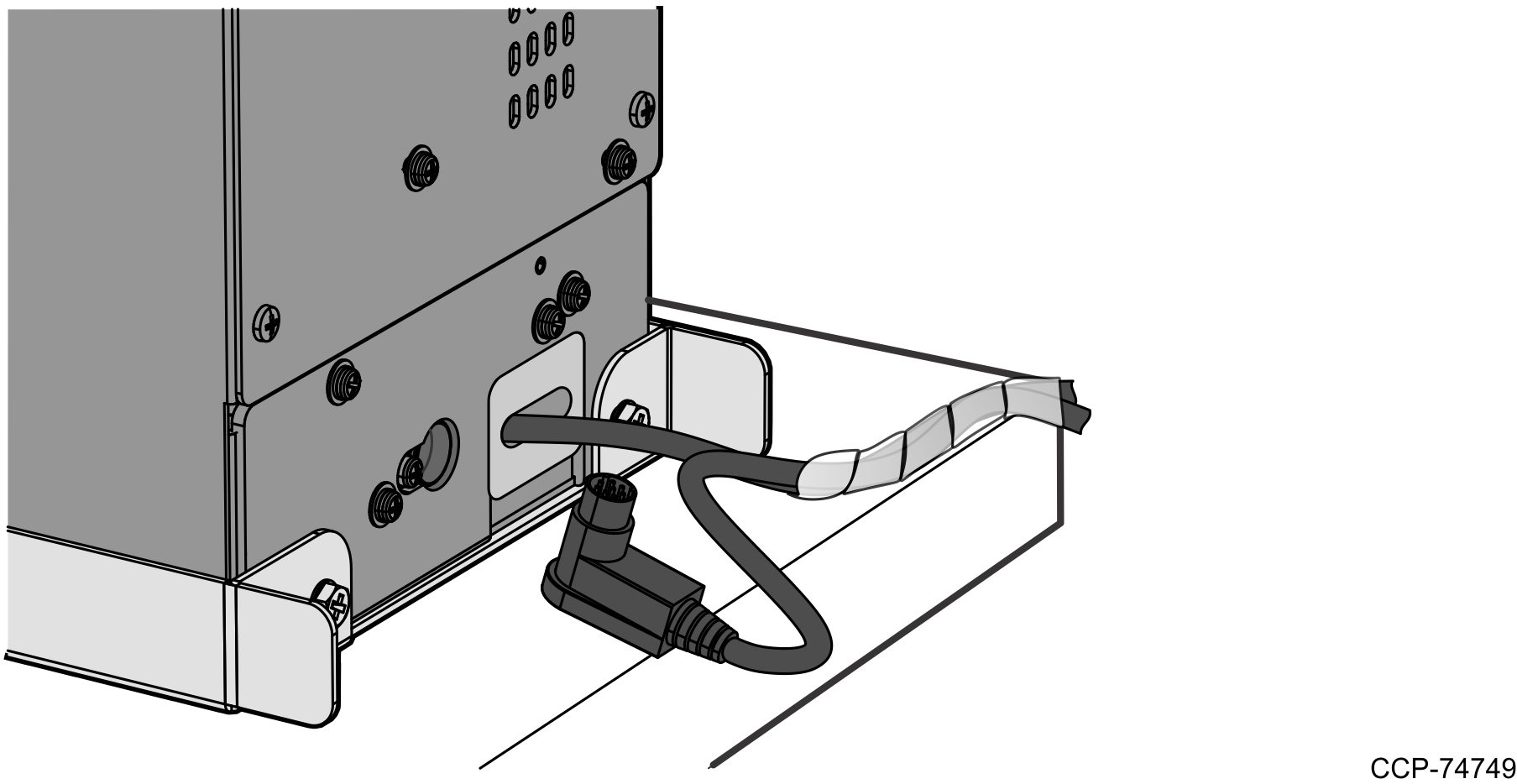

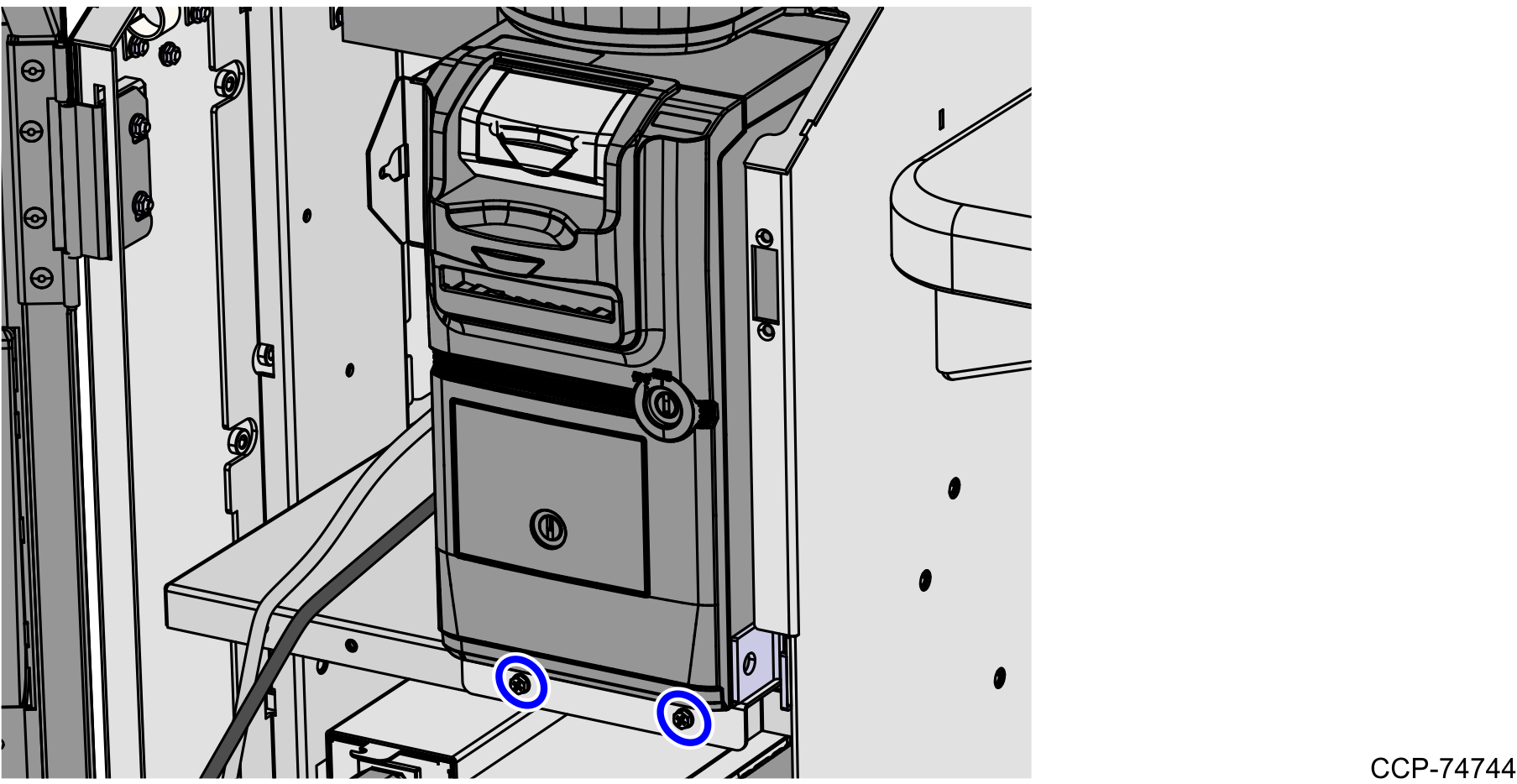

1.Remove two screws securing the Note Recycler (Glory RAD-375) to the Note Recycler bracket as shown in the image below.

2.Rack out the Note Recycler from the cabinet as shown in the image below.

Note:   Use a flat surface with an approximate height of 40 cm and place it up to 13 cm from the edge of the Cabinet.

Caution:  For safety reasons, NCR recommends placing the Note Recycler on a flat surface to hold the weight. The Note Recycler (Glory RAD-375) weighs approximately 20 kgs.
