7707-K255 Scanner (Datalogic Magellan 1500i)
This publication provides procedures for installing a Datalogic Magellan 1500i Scanner on any of the following units:
- NCR SelfServ™ Checkout (7707)
- NCR SelfServ™ Checkout (7350)
- Third Party Kiosks
Prerequisites
The 7707-K255 Scanner (Datalogic Magellan 1500i) must be ordered together with any of the following kits, depending on where the scanner should be installed.
- 7707-K908 Scanner Mount Assembly (Datalogic Magellan 1500i)
- 7707-K909 Scanner Bracket with Black Mount Assembly (Datalogic Magellan 1500i)
- 7350-K989 Scanner Mount Assemby (Datalogic Magellan 1500i)
- 7884-K900 Box Mount Assembly (Datalogic Magellan 1500i)

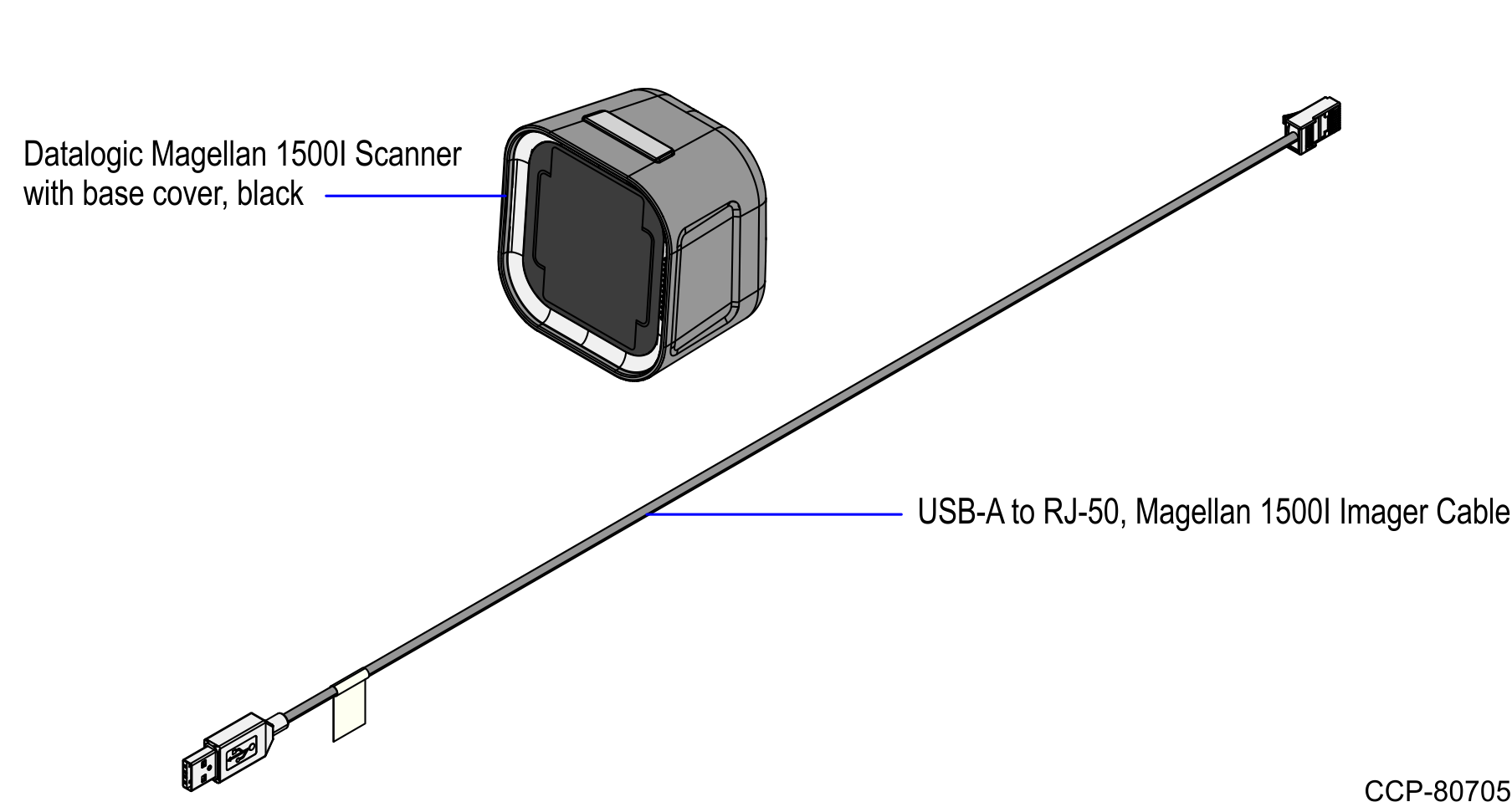

Kit Contents
| Part Number | Description | |
|---|---|---|
| 497-0530547 | KIT - 7707-K255 Datalogic 1500i Scanner (Scanner & 1.5 M Cable) | |
| 497-0533445 | Scanner, Datalogic Magellan 1500i With Base Cover, Black, FW Ver. 3 | |
| 497-0528834 | Cable, USB-A to RJ-50, Magellan 1500i Imager, 1500 mm | |
* Items marked with an asterisk are not called out on the image.
