7707-K909 Scanner Bracket with Black Mount Assembly (Datalogic Magellan 1500I)
This publication provides procedures for installing a Scanner Bracket with Black Mount Assembly for a Datalogic Magellan 1500I Scanner on an NCR SelfServ™ Checkout (7707) unit.
Prerequisite
The 7707-K908 Scanner Mount Assembly (Datalogic Magellan 1500I) must be ordered together with either of the following Scanner kits to complete the assembly:
- 7707-K255 Scanner (Datalogic Magellan 1500i) with 1.5 m Cable
- 7707-K910 Scanner (Datalogic Magellan 1500i) with 3.66 m Cable
Kit Contents
| Part Numbers | Description | |
|---|---|---|
| 497-0533535 | 7707-K909 Kit - Scanner Bracket with Black Mount (Datalogic Magellan DL1500i) | |
| 795-0297601 | Scanner Front Bracket - DL1500i (DARK WHITE) | |
| 497-0533538 | Scanner Mount (Black 7) - DL1500i | |
| 497-0530510 | Scanner Mount | |
| 006-8625120 | Nut, Wing, M4, Steel, Zinc Plated (2 pcs) | |
| 007-7022120 | Screw MA Flat POZ M4 6L (2 pcs) | |
| 006-8611847 | Nut, M4 keps (2 pcs) | |

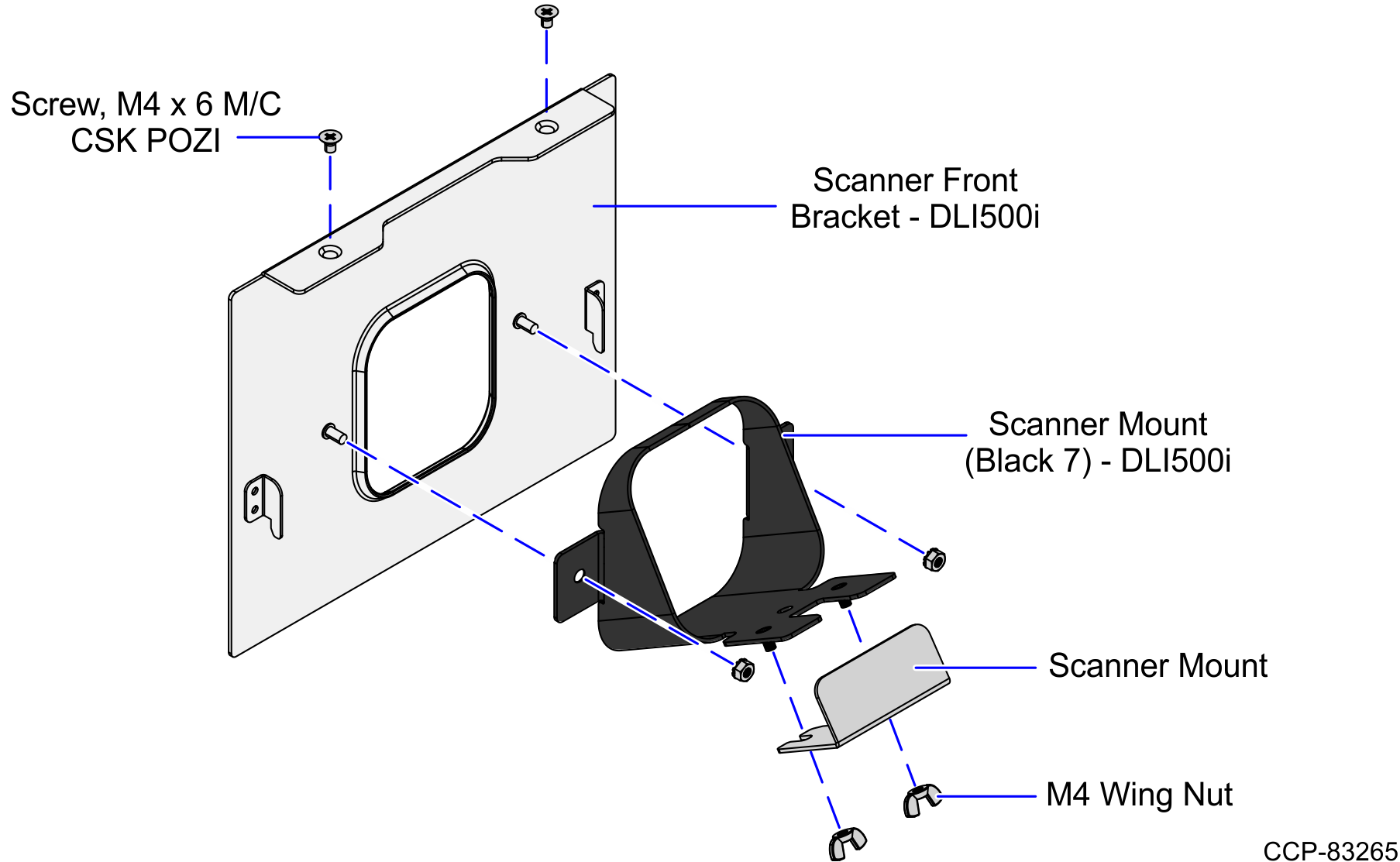

* Items marked with an asterisk are not called out on the image.
