9700-0091-7772/9700-0092-7772 Remote I/O Chassis
This kit provides a Remote I/O Chassis for the NCR CX7 All-in-One POS (7772) or NCR CX5 All-in-One POS (7773).
- 9700-0091-7772 – Remote USB Centric I/O (Retail) Chassis
- 9700-0092-7772 – Remote Serial Centric I/O (Hospitality) Chassis

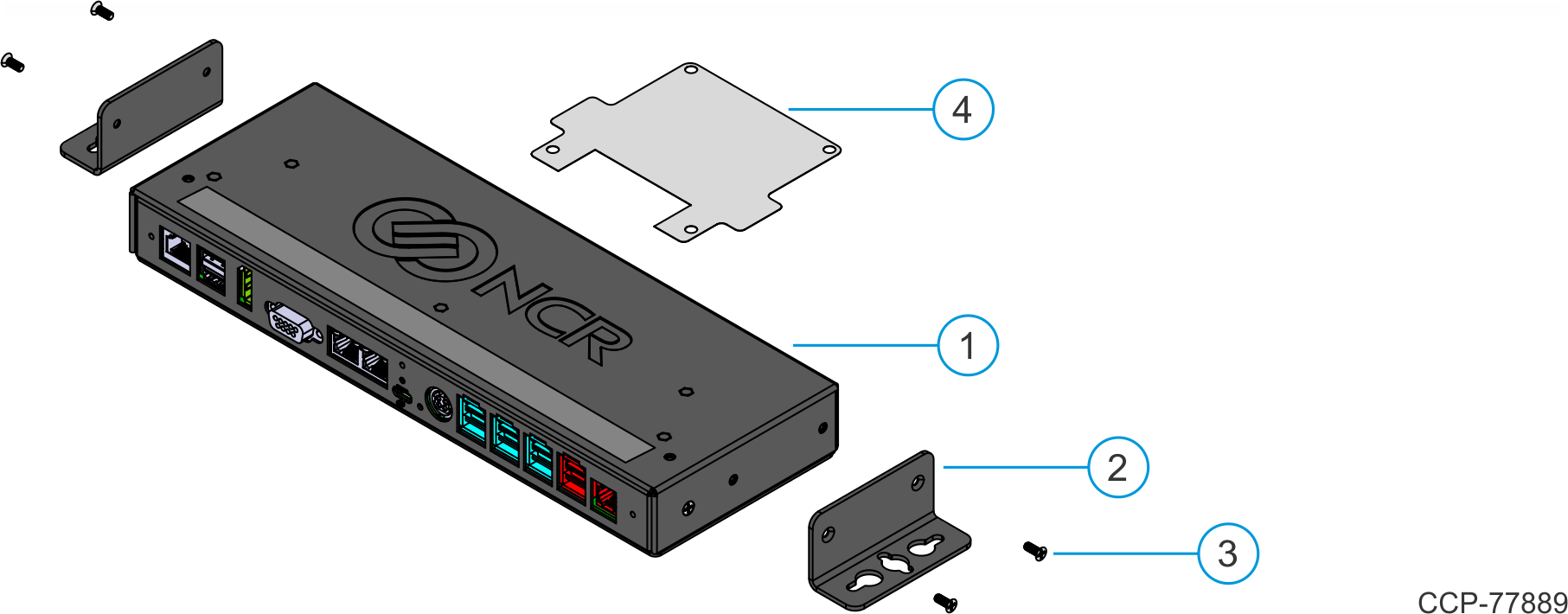

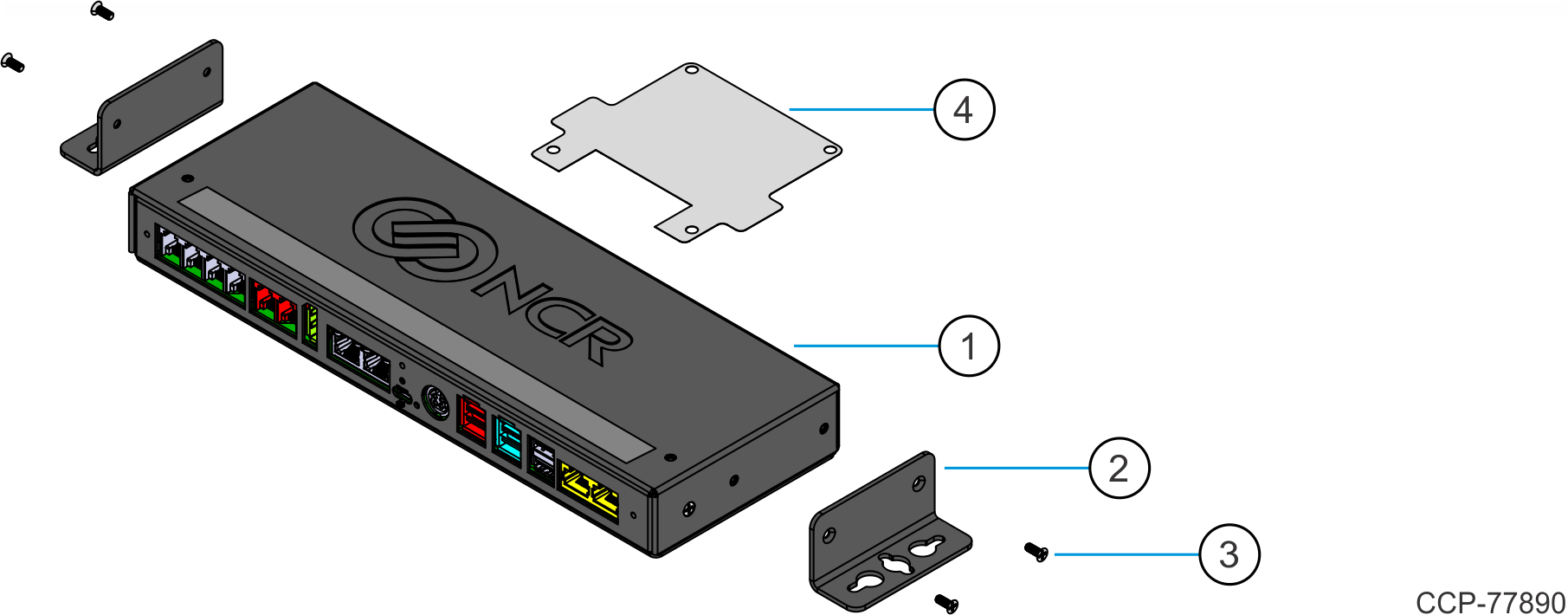

Kit Contents
9700-0091-7772 Remote USB Centric I/O (Retail) Chassis
| Item | Part Number | Description |
|---|---|---|
| 1 | Remote USB Centric I/O (Retail) Chassis Assembly | |
| 497-0526508 | Bottom Plate, Remote I/O, CX7 | |
| 497-0526509 | Casing, Remote I/O, CX7 | |
| 497-0526511 | Remote I/O Plate and Shield, Retail, CX7 | |
| 497-0467780 | Foot, Rubber, 7600 | |
| 497-0525283 | PCB Assembly – CX7 I/O Board, Retail | |
| 006-8617798 | Screw, M3 x 8mm Machine, Phillips, Flat, Black | |
| 006-8613167 | Screw, M3 x 6mm, SEMS, Pan Head, Phillips, Machine Screw External Tooth Washer, Zinc Plate | |
| 497-0527120 | Label, CX7 Remote I/O, Retail | |
| 2 | 497-0526512 | L-Shaped Bracket, CX7 |
| 3 | 006-8617798 | M3 x 8mm Machine, Phillips, Flat, Black |
| 4 | 497-0527274 | Label, Vesa Flame Retardant, Black |
9700-0092-7772 Remote Serial Centric I/O (Hospitality) Chassis
| Item | Part Number | Description |
|---|---|---|
| 1 | Remote Serial Centric I/O (Hospitality) Chassis Assembly | |
| 497-0526508 | Bottom Plate, Remote I/O, CX7 | |
| 497-0526509 | Casing, Remote I/O, CX7 | |
| 497-0526510 | Remote I/O Plate and Shield, HSR, CX7 | |
| 497-0467780 | Foot, Rubber, 7600 | |
| 497-0525263 | PCB Assembly – CX7 I/O Board, HSR | |
| 006-8617798 | Screw, M3 x 8mm Machine, Phillips, Flat, Black | |
| 006-8613167 | Screw, M3 x 6mm, SEMS, Pan Head, Phillips, Machine Screw External Tooth Washer, Zinc Plate | |
| 497-0527119 | Label, CX7 Remote I/O, Hospitality | |
| 2 | 497-0526512 | L-Shaped Bracket, CX7 |
| 3 | 006-8617798 | M3 x 8mm Machine, Phillips, Flat, Black |
| 4 | 497-0527274 | Label, Vesa Flame Retardant, Black |
Installation Procedure
Disconnect the AC power cord from the AC outlet and wait 30 seconds before servicing the terminal.

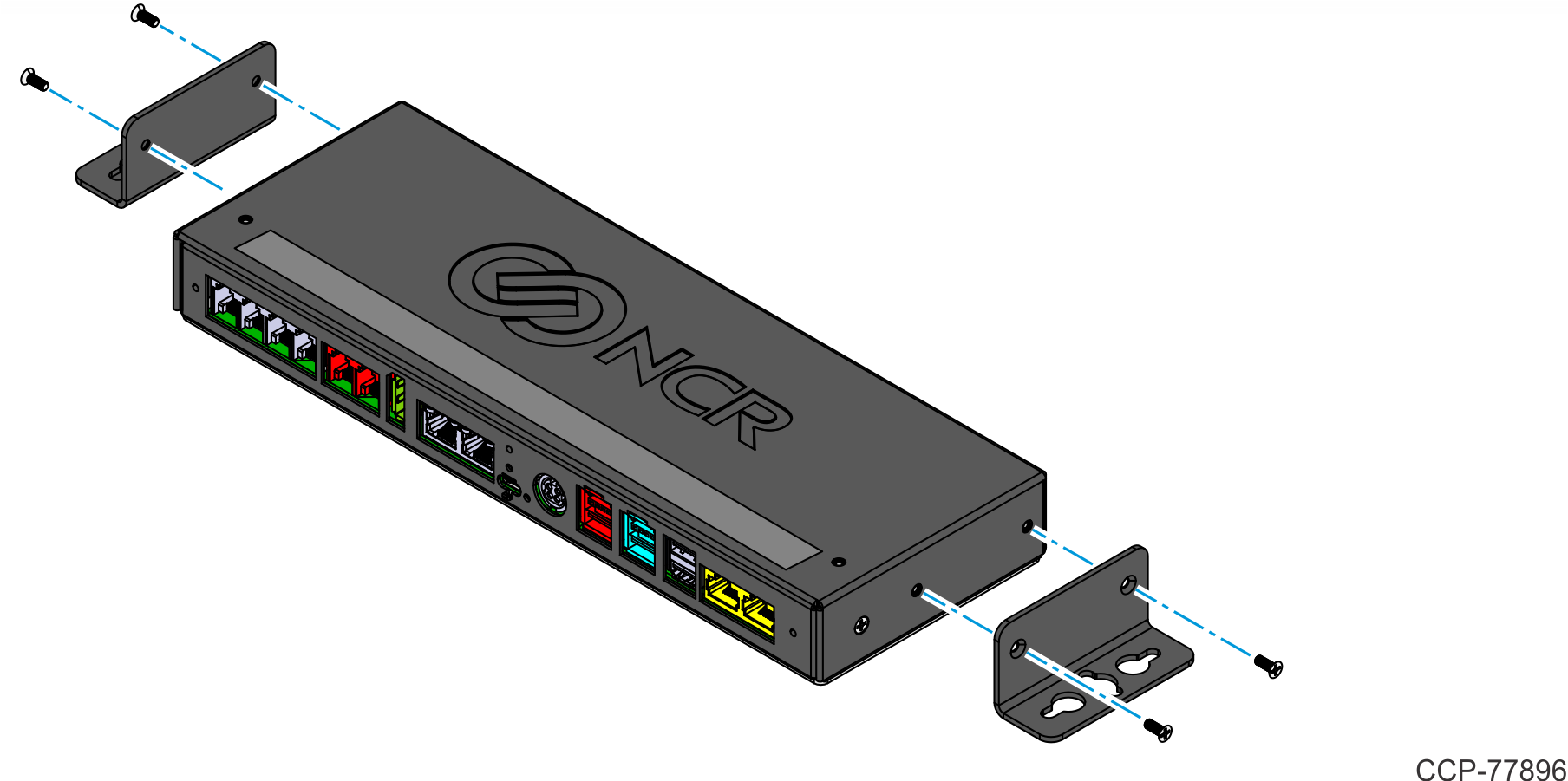

- Install the Brackets on each side of the Remote I/O Chassis (2 screws per bracket) in the orientation shown below.Note
The Brackets may also be mounted 180° from the position shown below. Illustration below shows the Remote Serial Centric I/O (Hospitality) Chassis (9700-0092-7772).

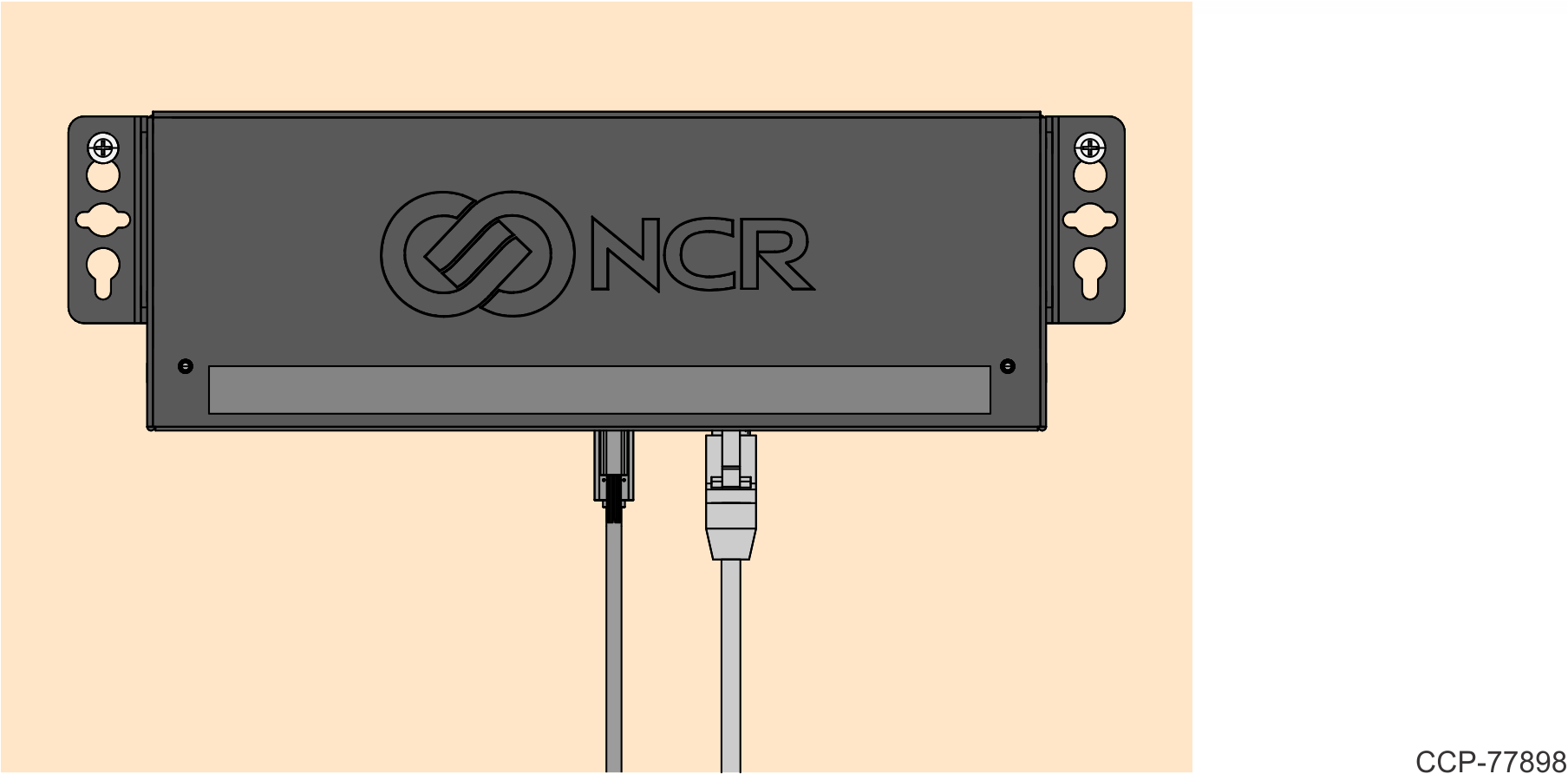

Mount the assembly on the wall as desired. The Remote I/O Chassis can be mounted in four (4) ways:
I/O Facing Up

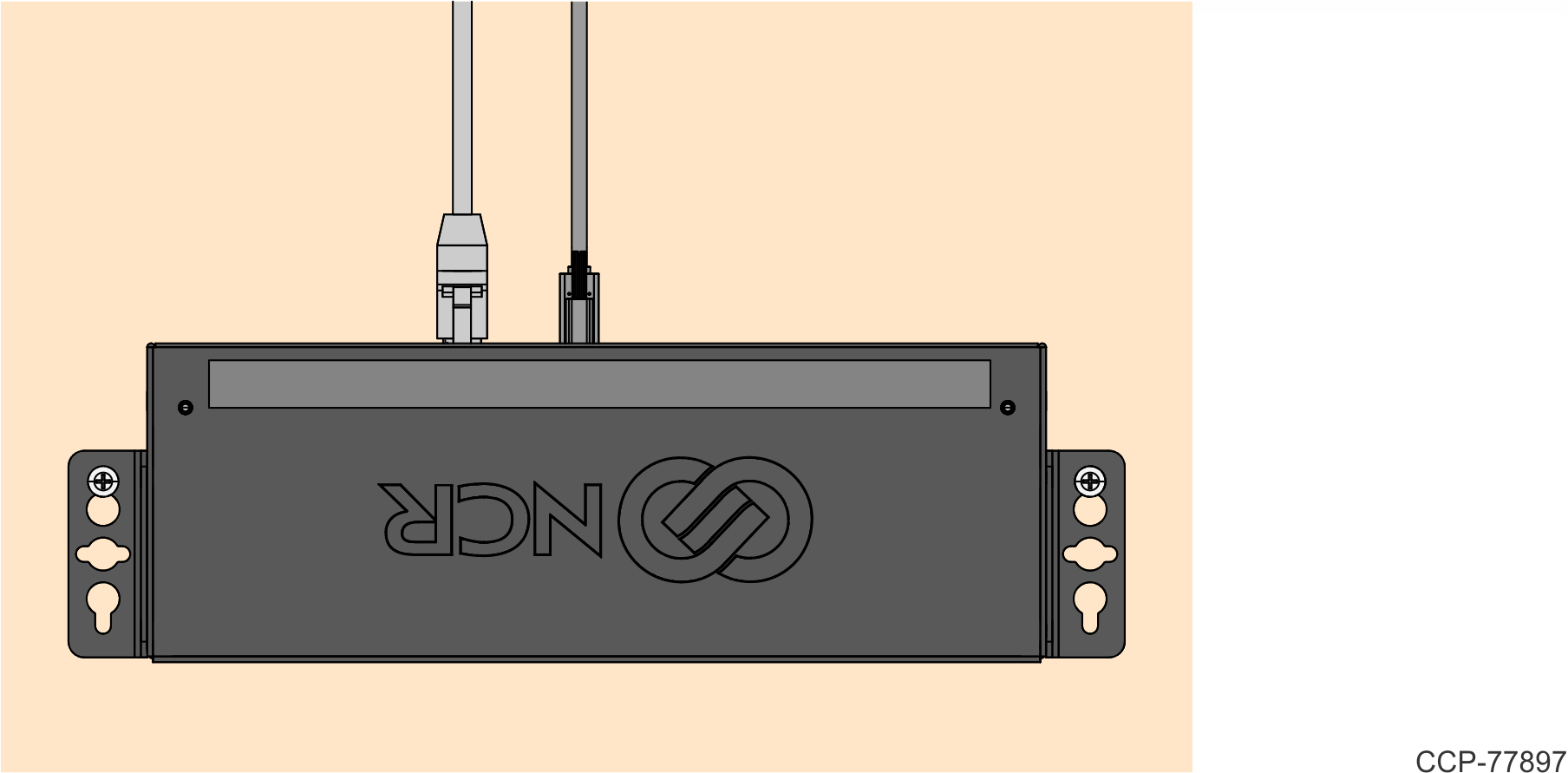

I/O Facing Down

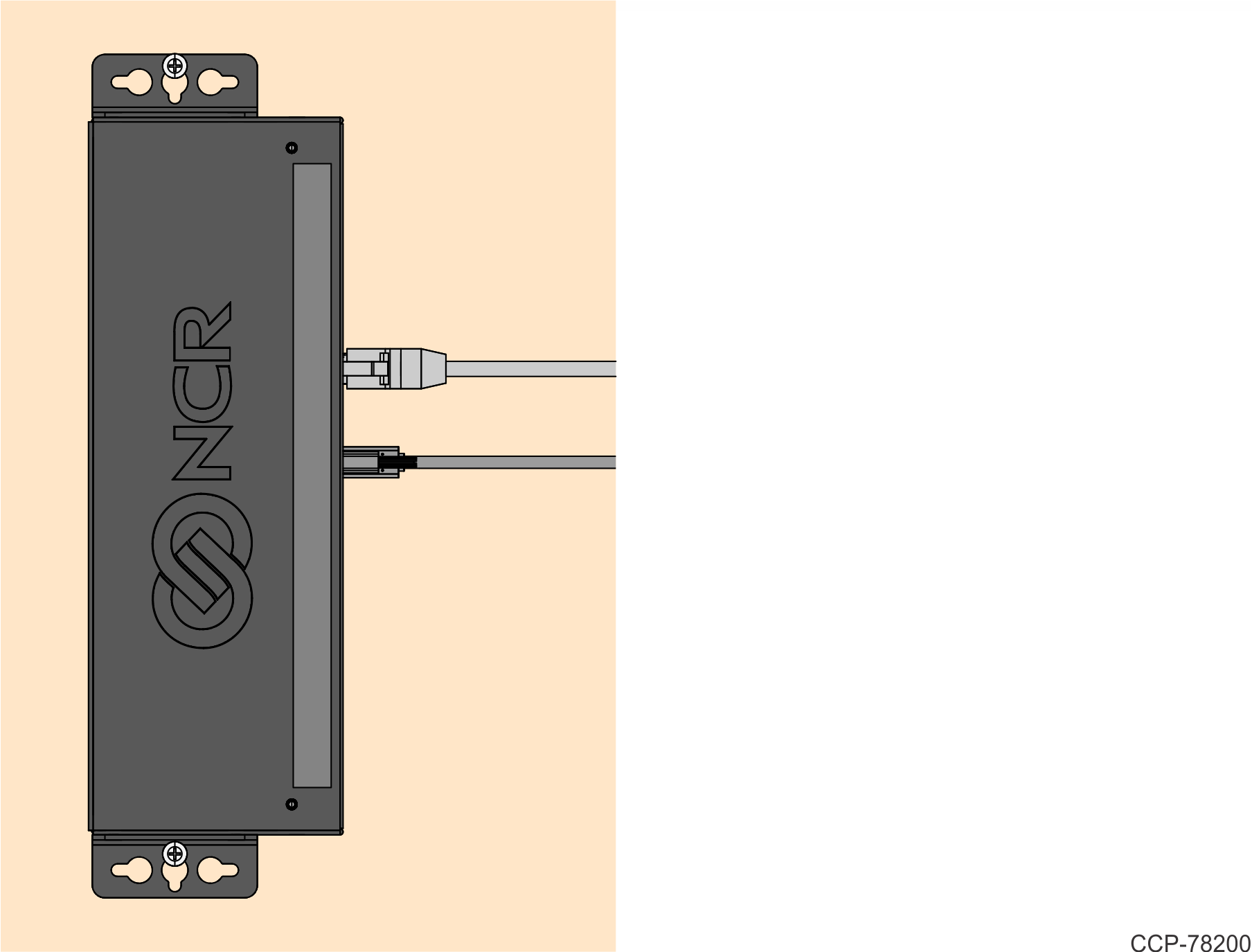

I/O Facing Right

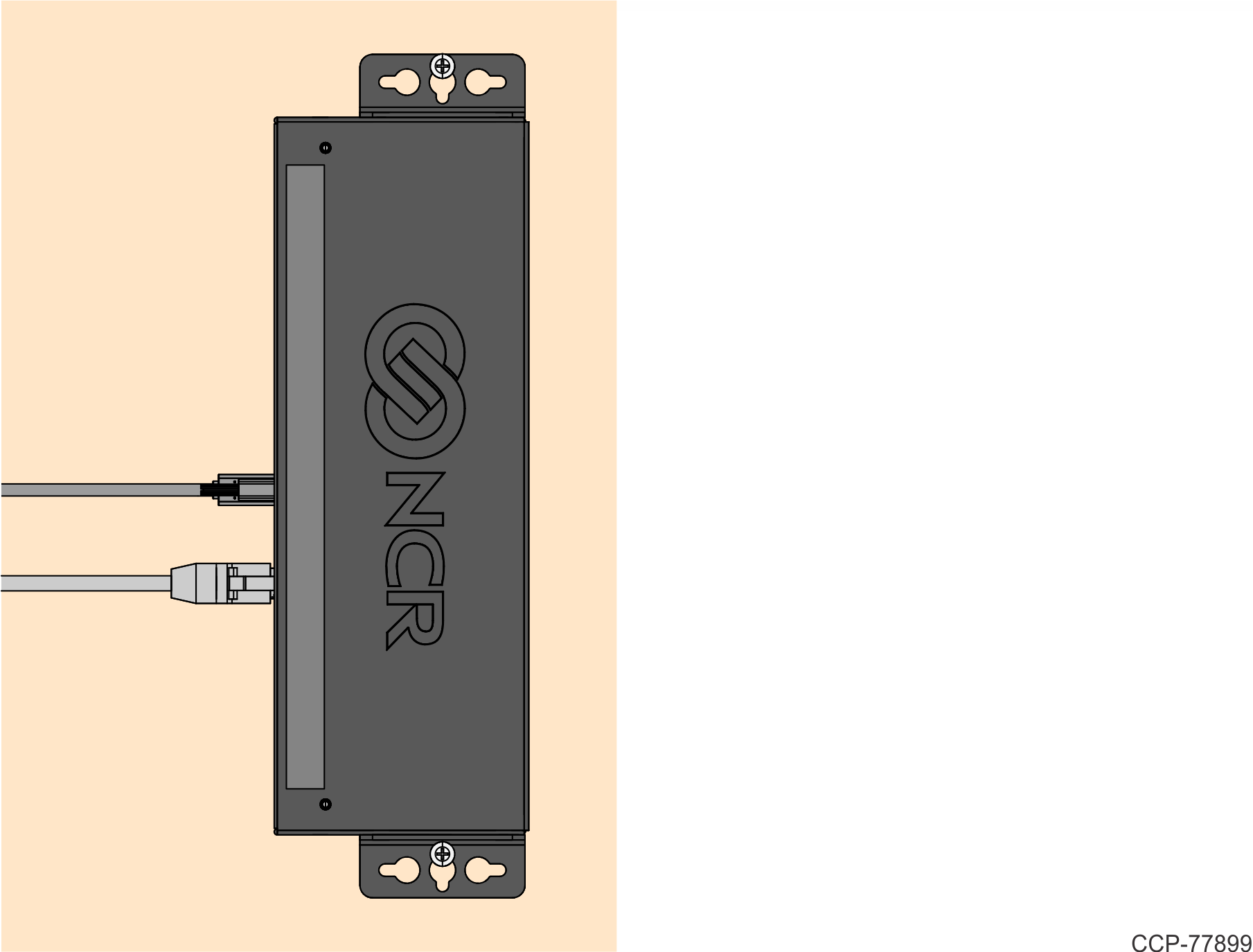

I/O Facing Left
Connect the cables to the appropriate I/O port. For information on the ports available for each kit, refer to the I/O Ports section:

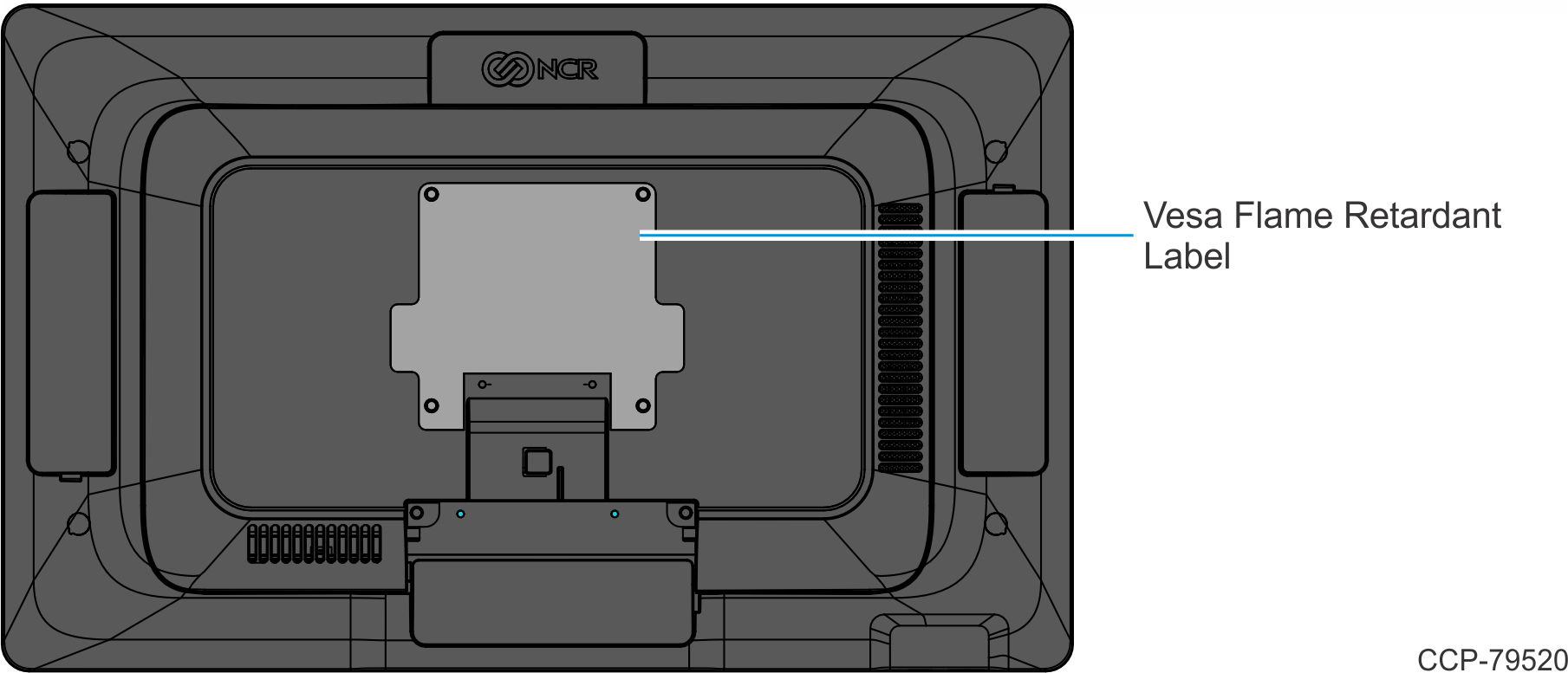

Mount the Vesa Flame Retardant Label on the Back Cover as shown.
NoteThe Label is needed when mounting on a third-party arm.
I/O Ports

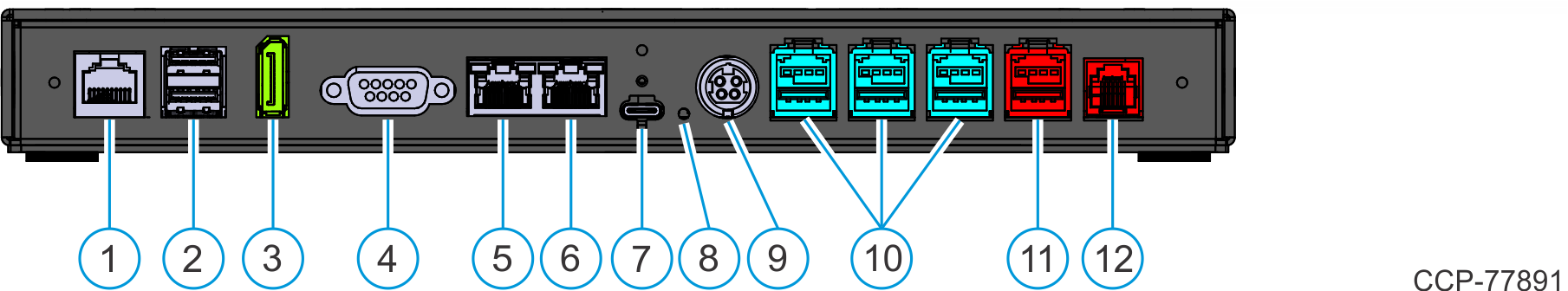

9700-0091-7772 Remote USB Centric I/O (Retail) Chassis
| Callout | Port Name |
|---|---|
| 1 | RJ50 Serial (Enhanced UART) |
| 2 | Dual USB 3.0 |
| 3 | DisplayPort |
| 4 | DB9 Serial (Standard UART) |
| 5 | LAN In Note
Connect to Ethernet Network |
| 6 | LAN Out Note
Connect to the CX Head |
| 7 | USB-C |
| 8 | LED |
| 9 | 24V Power In |
| 10 | USB 12V |
| 11 | USB 24V |
| 12 | Cash Drawer |

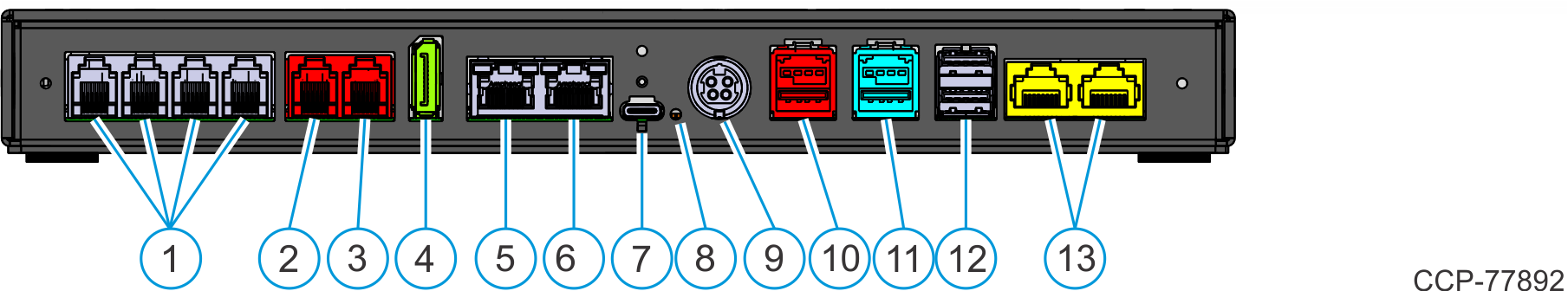

9700-0092-7772 Remote Serial Centric I/O (Hospitality) Chassis
| Callout | Port Name |
|---|---|
| 1 | RJ12 Serial
|
| 2 | Cash Drawer A |
| 3 | Cash Drawer B |
| 4 | DisplayPort |
| 5 | LAN In Note
Connect to Ethernet Network |
| 6 | LAN Out Note
Connect to the CX Head |
| 7 | USB-C |
| 8 | LED |
| 9 | 24V Power In |
| 10 | USB 24V |
| 11 | USB 12V |
| 12 | Dual USB 3.0 |
| 13 | RJ45 Serial
|
