7772-K141 NCR Encrypted MSR

This kit provides an NCR Encrypted MSR for the NCR CX7 All-in-One POS (7772) or NCR CX5 All-in-One POS (7773).

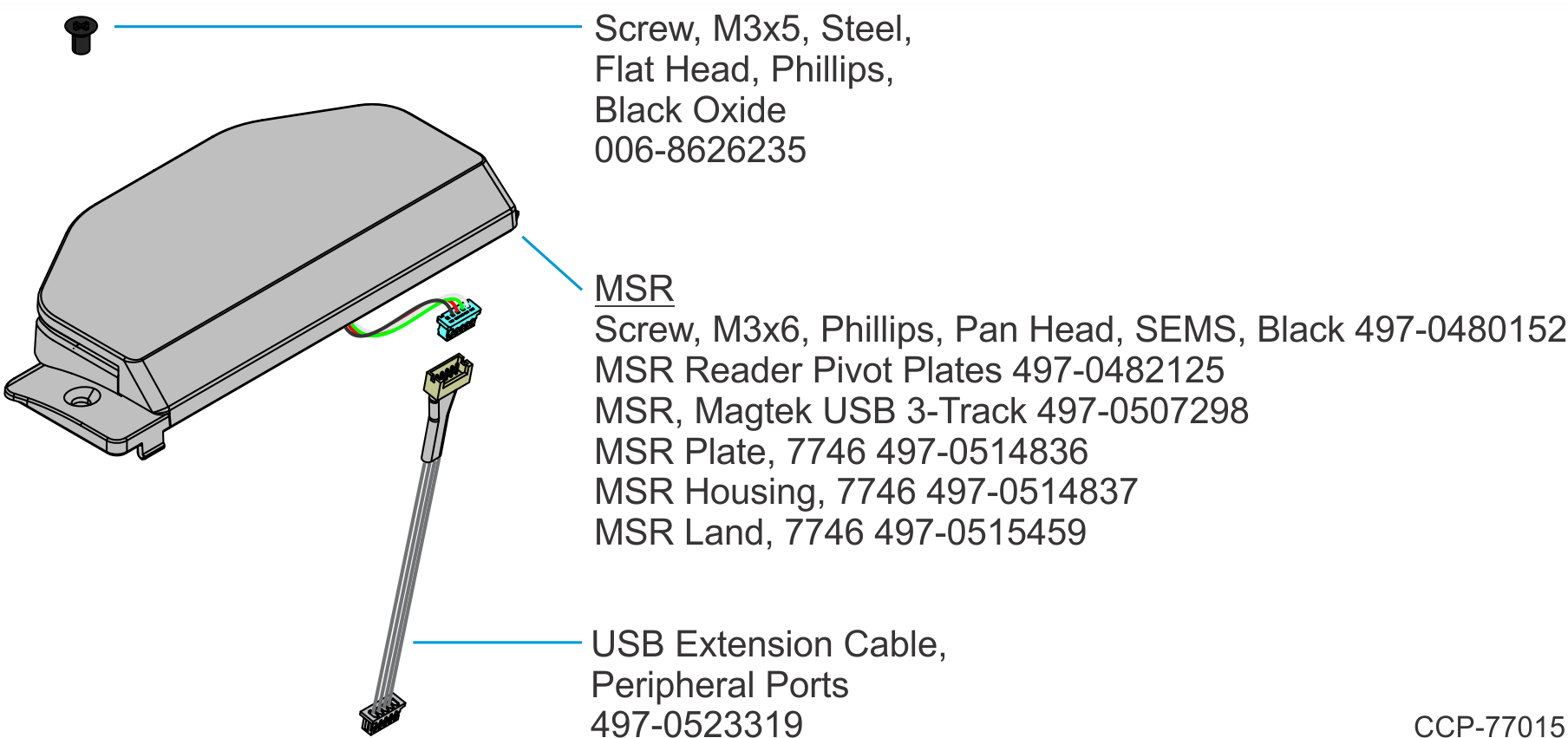

Kit Contents

Installation Procedure

Warning

Disconnect the AC power cord from the AC outlet and wait 30 seconds before servicing the terminal.

  1. Lay the Display face down on a flat surface.
    Note

    Always use a soft material (cloth, foam) to protect the display screen when placing the terminal face down.

  1. Remove the Cable Cover.
    1. Remove the two (2) screws that secure the Cable Cover to the Back Cover.

    2. Rotate and unhook the Cable Cover from the Back Cover.

  1. Disconnect the Cables.
    1. Loosen the thumbscrew of the 180-degree USB-C Cable then disconnect the Cable.
    2. Remove the Ethernet Cable from the Cable Management Hook then disconnect the Cable.

  2. Loosen the two (2) captive screws that secure the Back Cover to the Display.

  3. Rotate the Back Cover away from the Display and unhook the Back Cover Tabs.

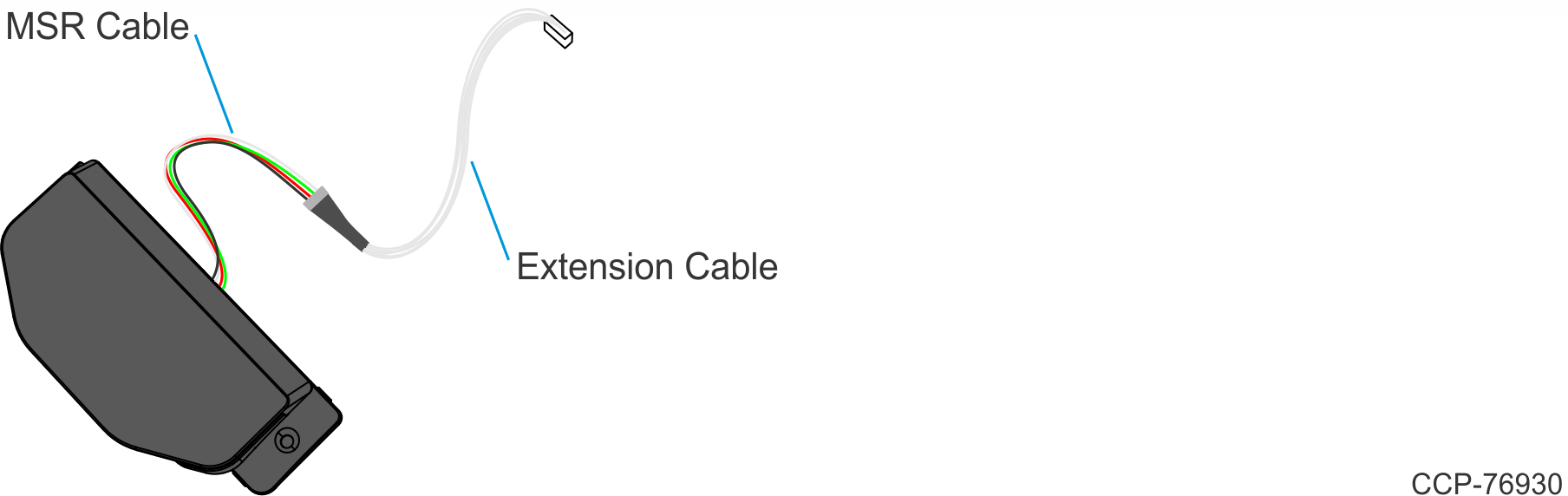

  1. Connect the MSR Cable to the Extension Cable.

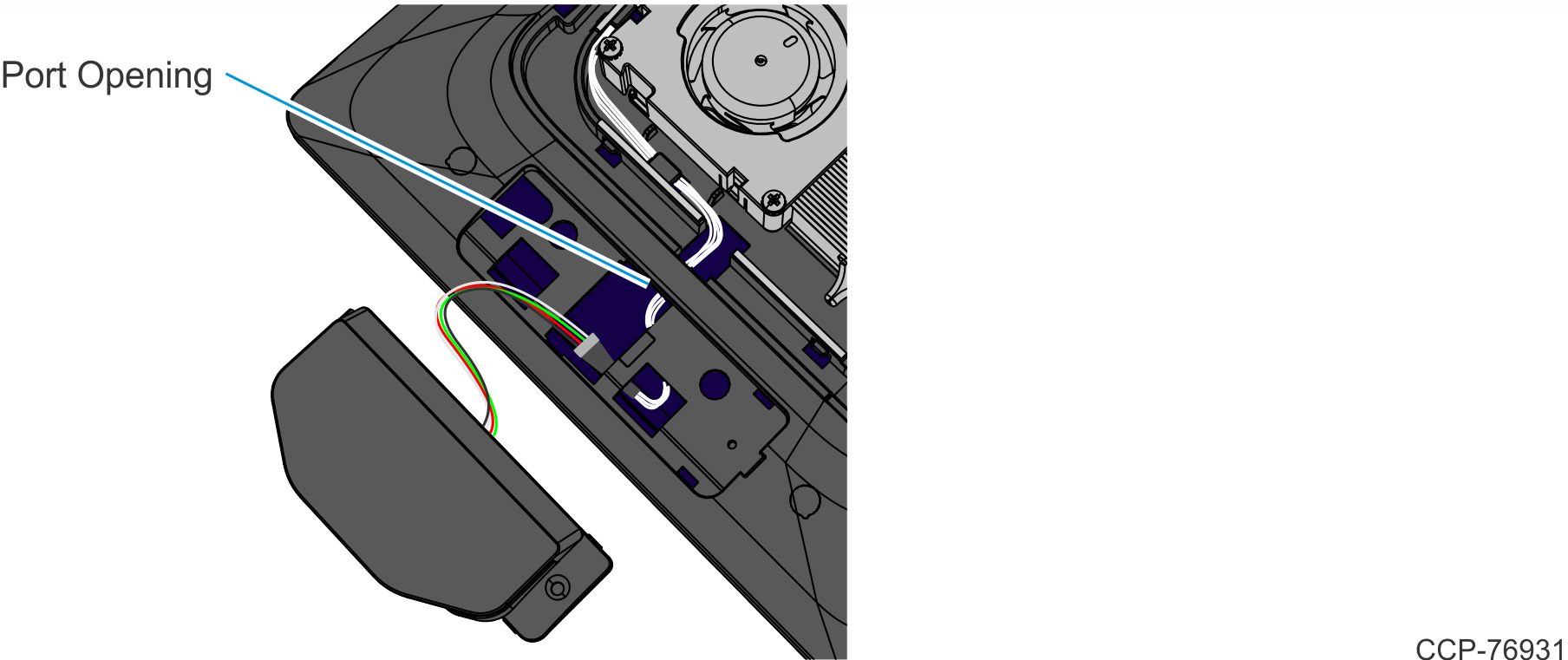

  2. Route the Extension Cable through the Port opening.

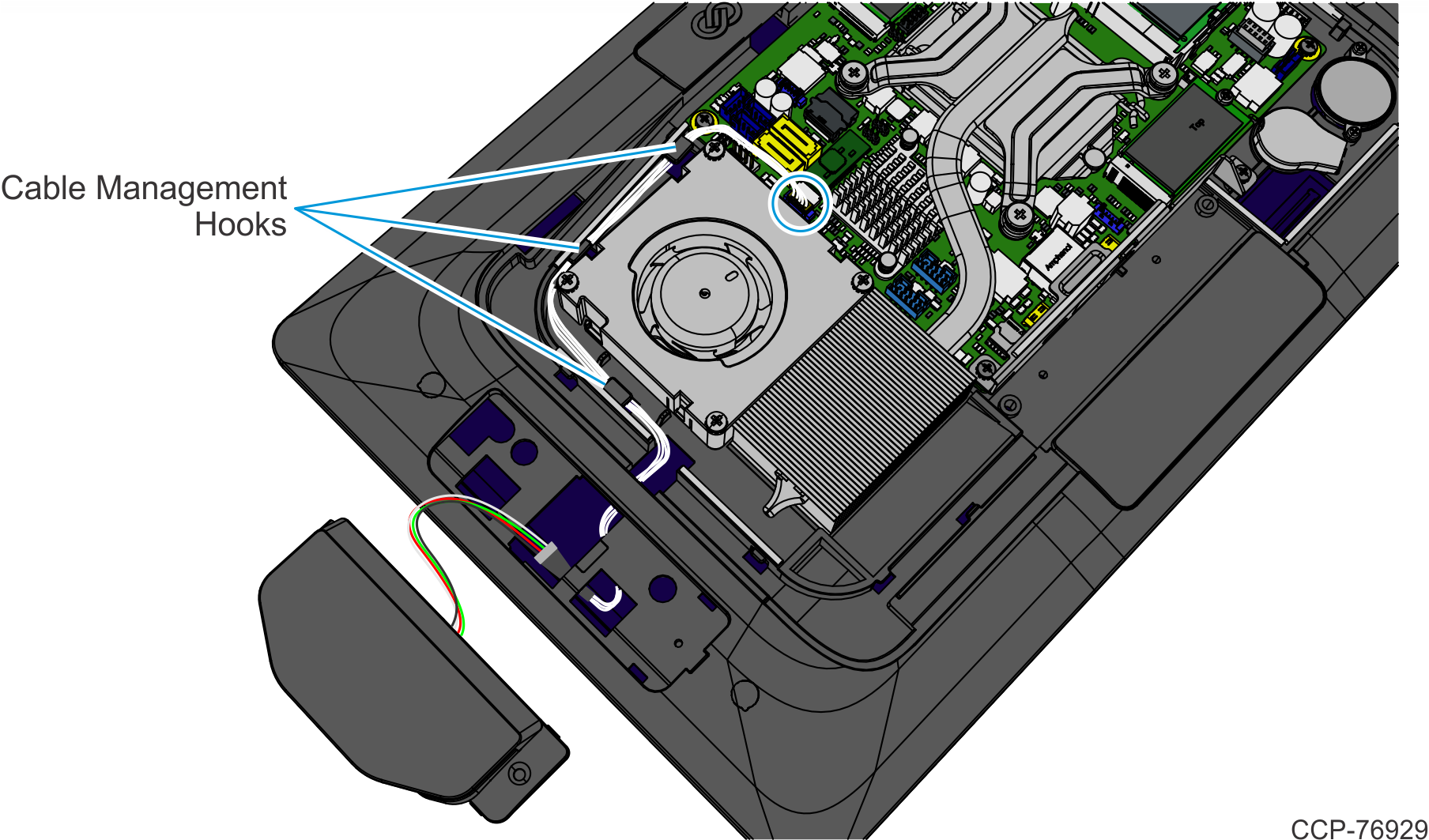

  3. Route and secure the Cable under the Cable Management Hooks as shown, then connect the Cable to the Motherboard.

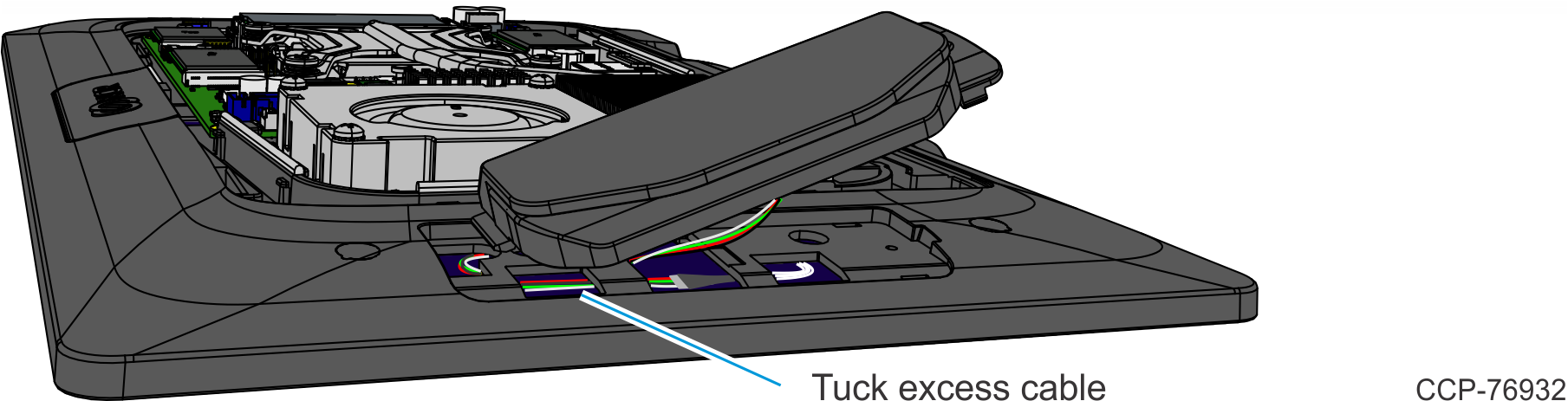

  4. Tuck the excess Cable under the display housing.

  5. Hook the MSR into the display housing and snap into place.

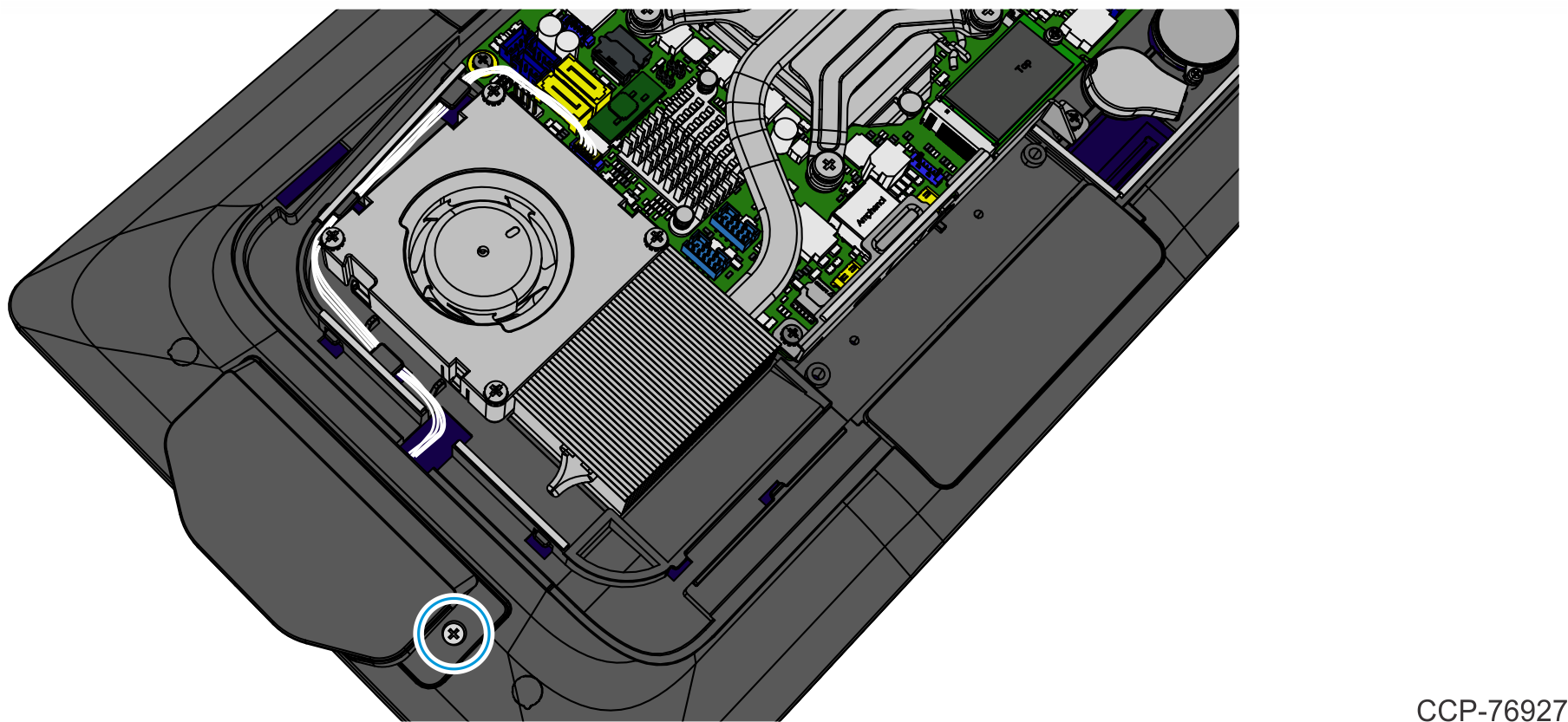

  6. Secure the MSR with a screw.

  1. Reinstall the Display Back Cover.
  2. Reconnect the 180-degree USB-C Cable and Ethernet Cable.
  3. Reinstall the Cable Cover.
