7772-K156 CX5/CX7 Side Scanner/Imager

This kit provides an Imager for Port B or Port C of NCR CX7 All-in-One POS (7772) or NCR CX5 All-in-One POS (7773).

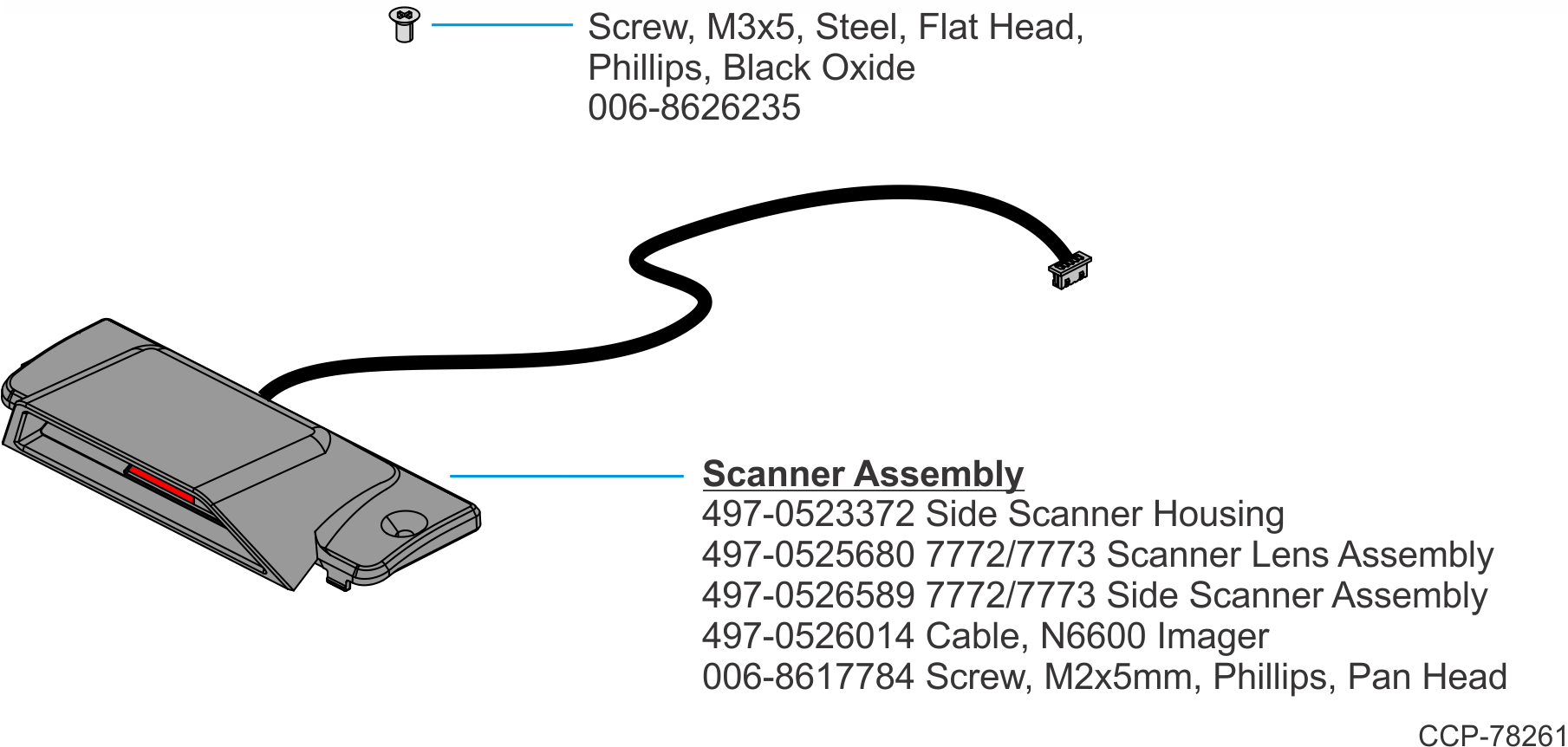

Kit Contents

Installation Procedure

1. Lay the Display face down on a flat surface.
   Note

   Always use a soft material (cloth, foam) to protect the display screen when placing the terminal face down.

2. Remove the Cable Cover.
   1. Remove the two (2) screws that secure the Cable Cover to the Back Cover.



   2. Rotate and unhook the Cable Cover from the Back Cover.



3. Disconnect the Cables.
   1. Loosen the thumbscrew of the 180-degree USB-C Cable then disconnect the Cable.
   2. Remove the Ethernet Cable from the Cable Management Hook then disconnect the Cable.



4. Loosen the two (2) captive screws that secure the Back Cover to the Display.



5. Rotate the Back Cover away from the Display and unhook the Back Cover Tabs.

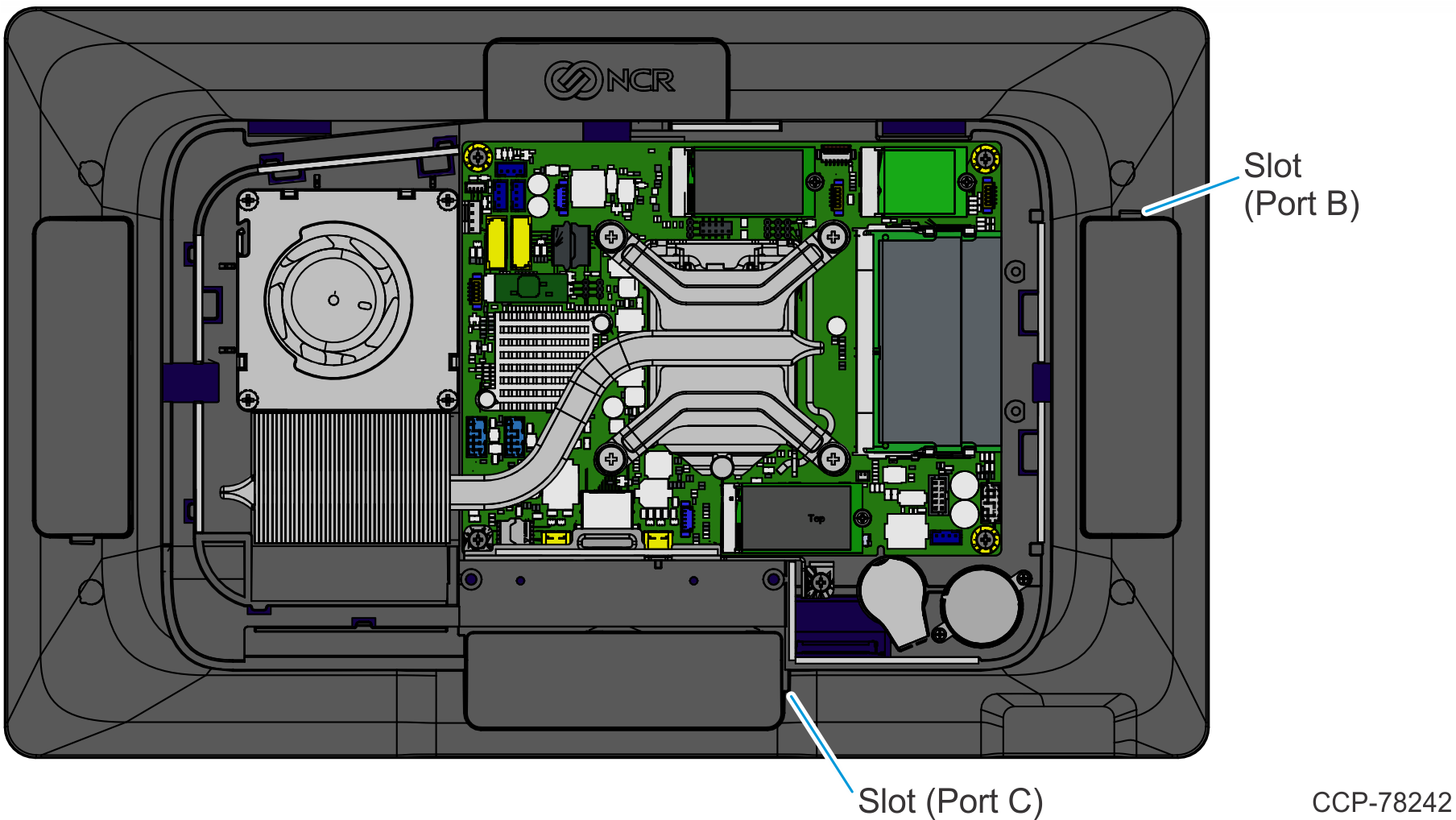

6. The Imager can be installed on either Port B or Port C. Insert a flat screw driver in the slot of the desired port to unsnap the Plate from the display housing.

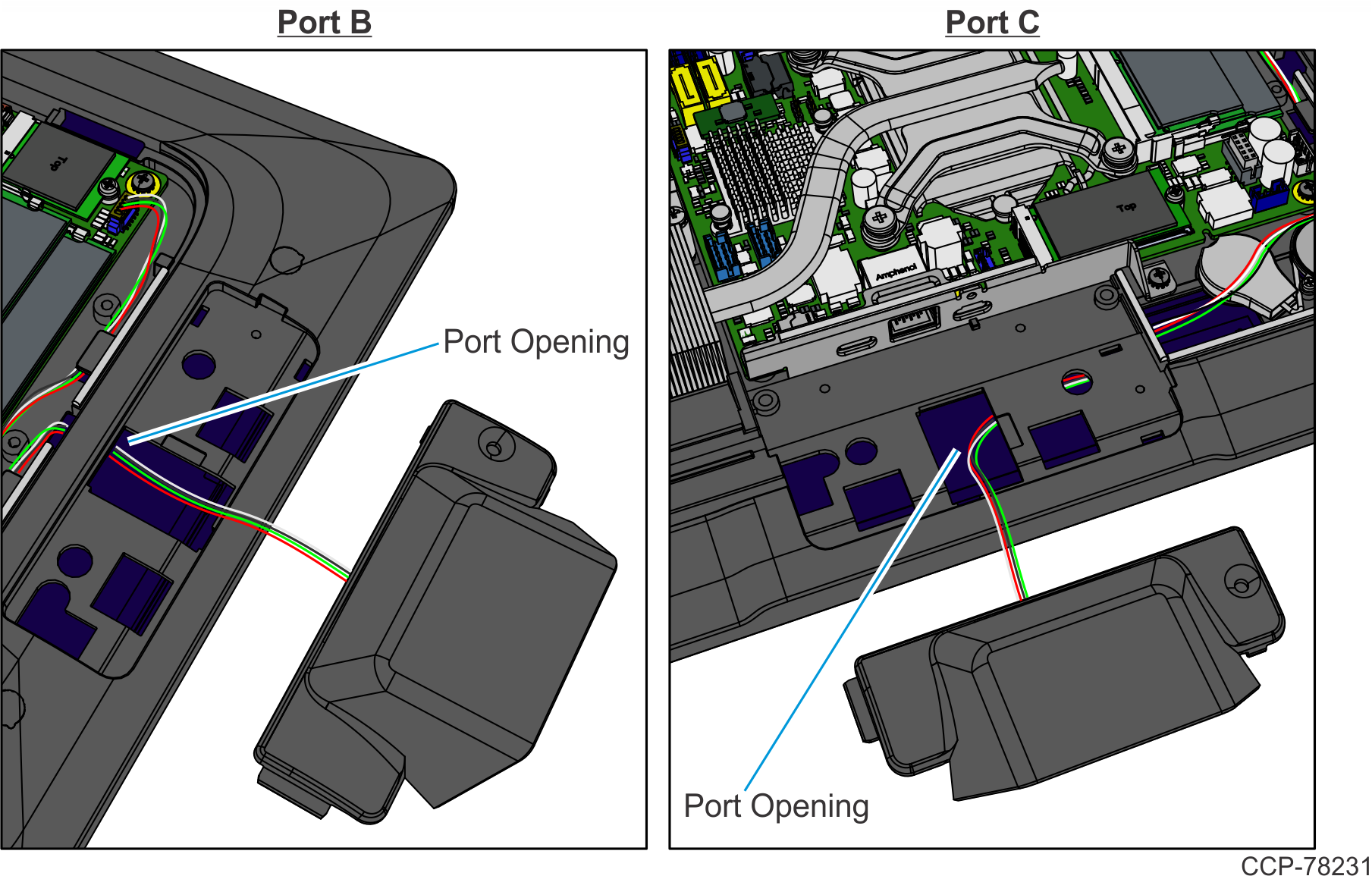

7. Route the Imager Cable through the Port opening.

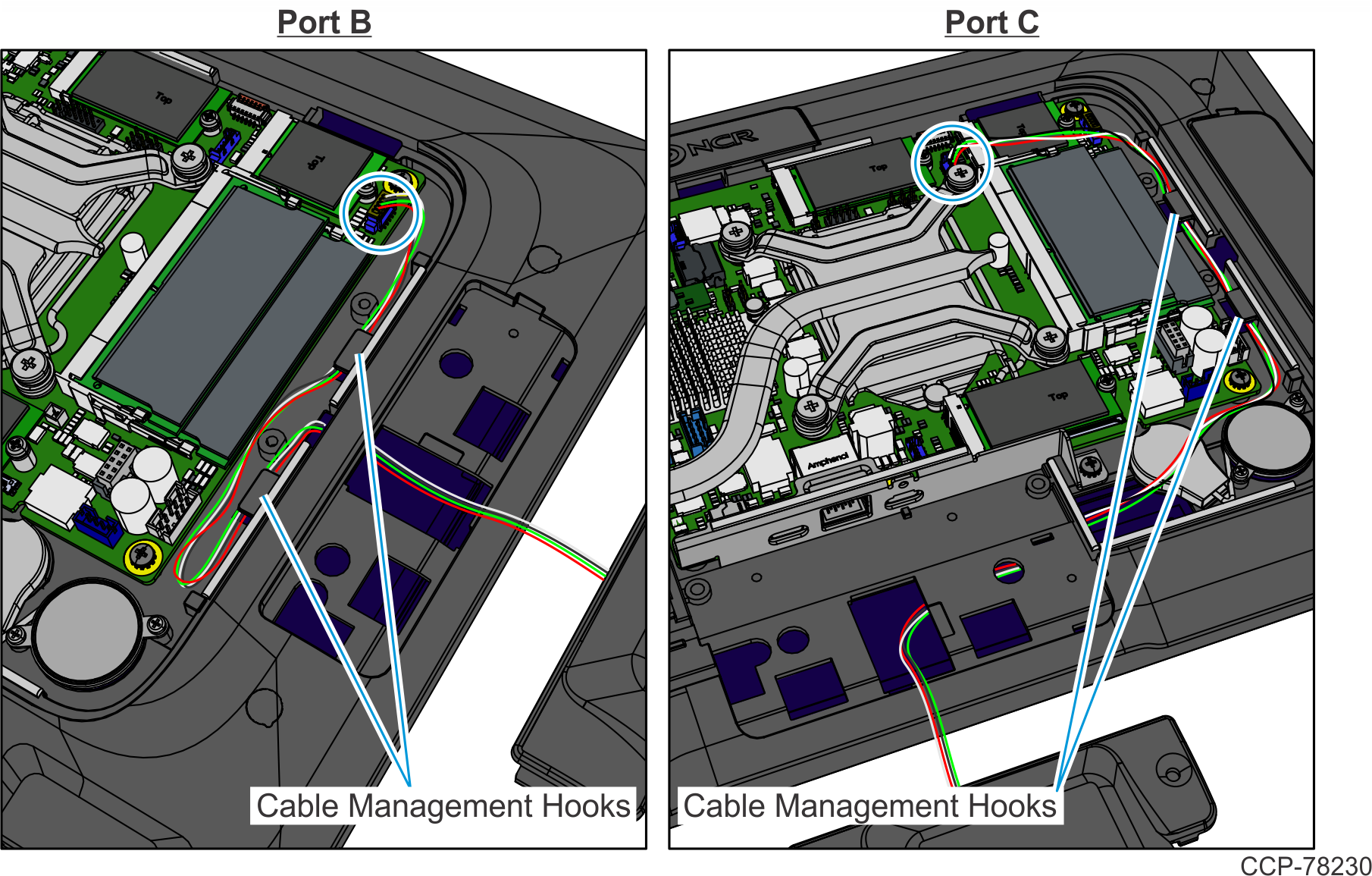

8. Route and secure the Cable under the Cable Management Hooks as shown, then connect the Cable to the Motherboard.

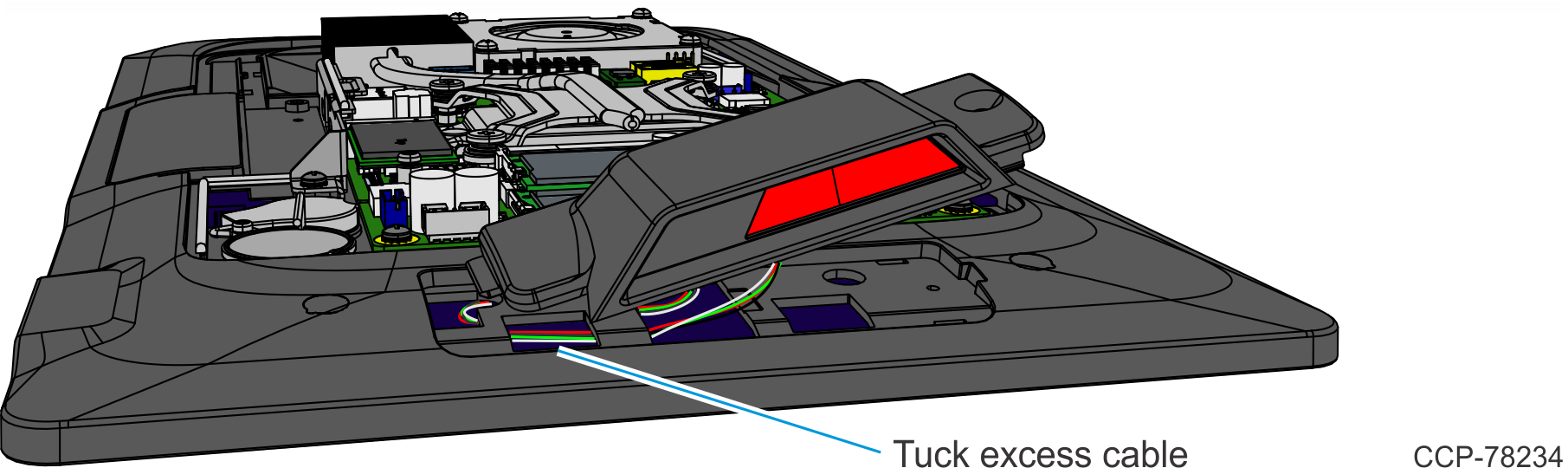

9. Tuck the excess Cable under the display housing.

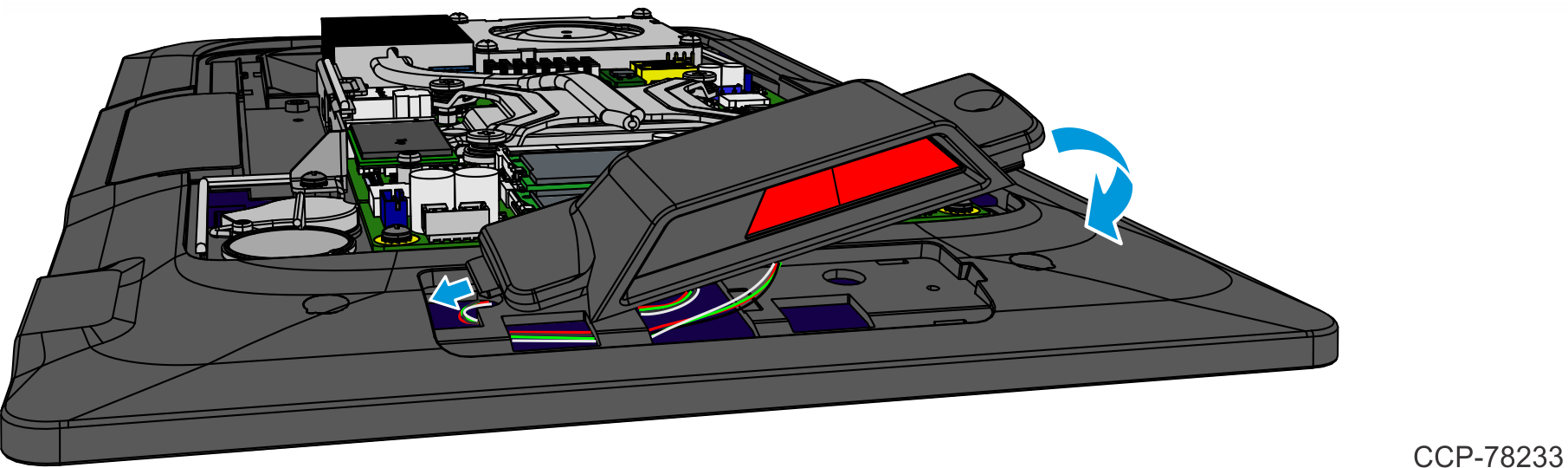

10. Hook the Imager into the display housing and snap into place.

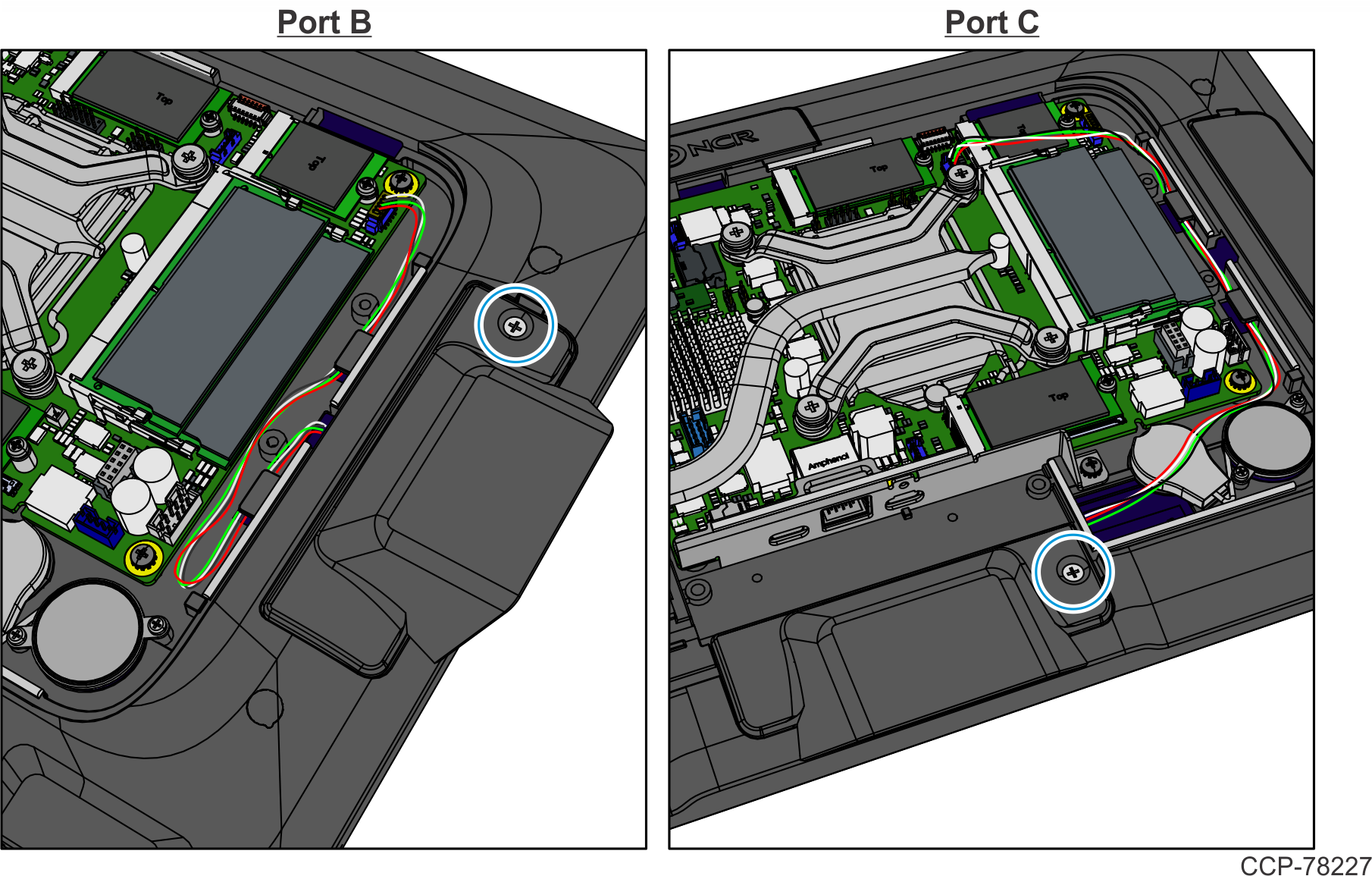

11. Secure the Imager with a screw.



12. Reinstall the Display Back Cover.
13. Reconnect the 180-degree USB-C Cable and Ethernet Cable.
14. Reinstall the Cable Cover.

Programming the Imager

To program the imager to work on a Retail or Hospitality (Aloha) POS, refer to the following sections in the Imager Setup Sheets document (BCC5-0000-5470): https://onlinehelp.ncrvoyix.com/Retail/Scanners/ImagerSetup/HTML/FrontMatter-HTML/Home.htm

• Retail
  • Honeywell N6600/N6700 Retail Quick Imager Setup
• Hospitality (Aloha)
  • Honeywell N6600 Aloha Programming Sheet
