7772-K157 Side Mount UV Bill Validator, CX7

This kit provides a UV Bill Validator for Port B of NCR CX7 All-in-One POS (7772).

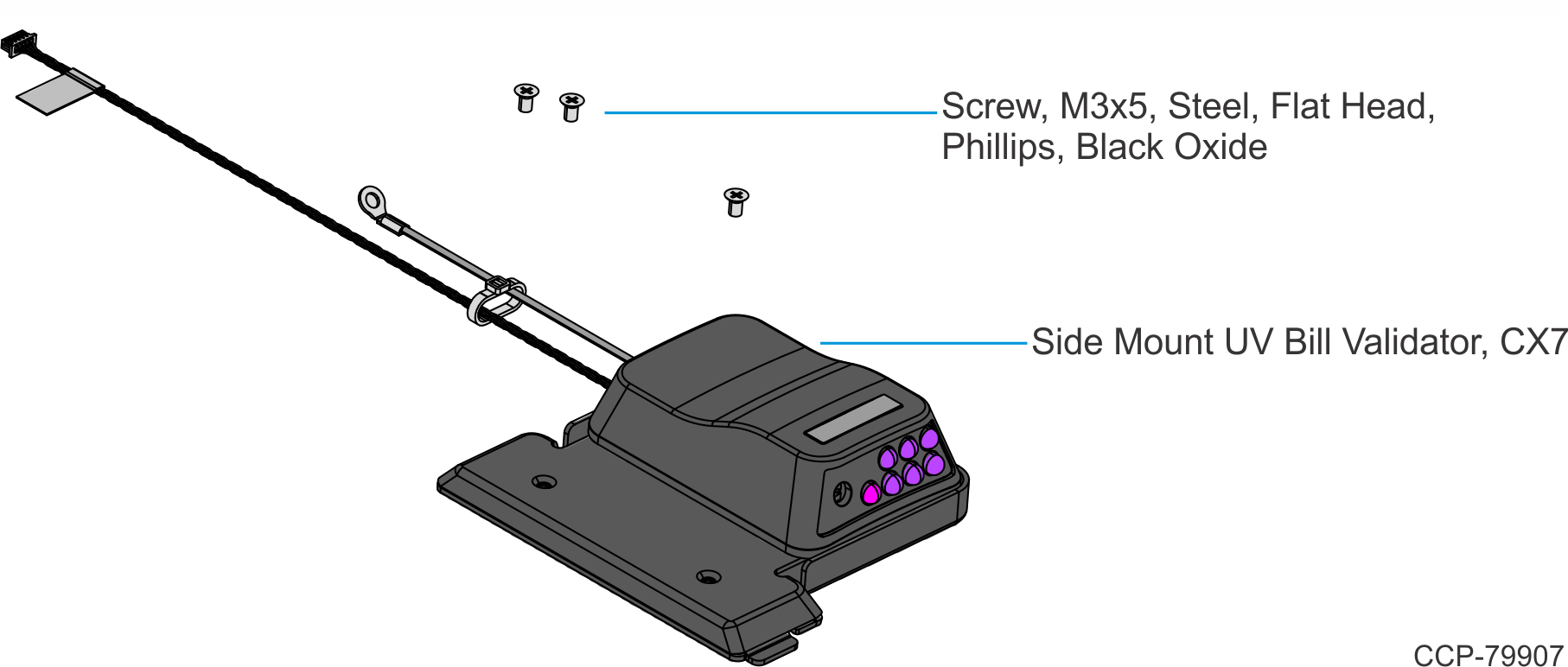

Kit Contents

Installation Procedure

Warning

Disconnect the AC power cord from the AC outlet and wait 30 seconds before servicing the terminal.

  1. Lay the Display face down on a flat surface.
    Note

    Always use a soft material (cloth, foam) to protect the display screen when placing the terminal face down.

  1. Remove the Cable Cover.
    1. Remove the two (2) screws that secure the Cable Cover to the Back Cover.

    2. Rotate and unhook the Cable Cover from the Back Cover.

  1. Disconnect the Cables.
    1. Loosen the thumbscrew of the 180-degree USB-C Cable then disconnect the Cable.
    2. Remove the Ethernet Cable from the Cable Management Hook then disconnect the Cable.

  2. Loosen the two (2) captive screws that secure the Back Cover to the Display.

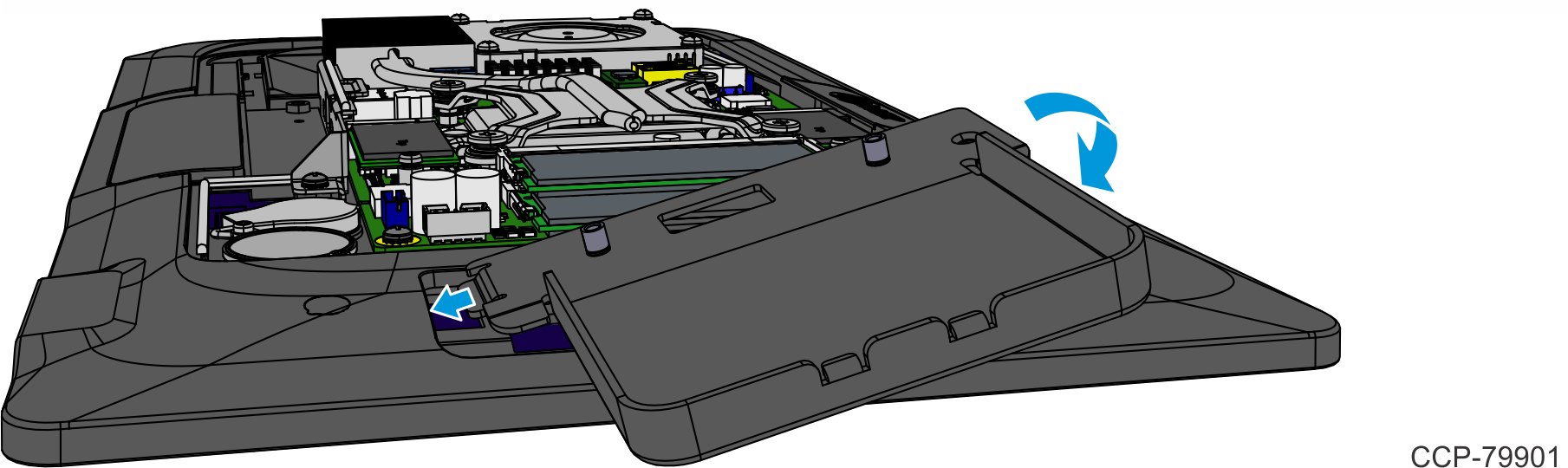

  3. Rotate the Back Cover away from the Display and unhook the Back Cover Tabs.

  1. Insert a flat screw driver in the slot of Port B to unsnap the Plate from the display housing.

  1. Hook the UV Bill Validator Front Housing into the display housing and snap into place.

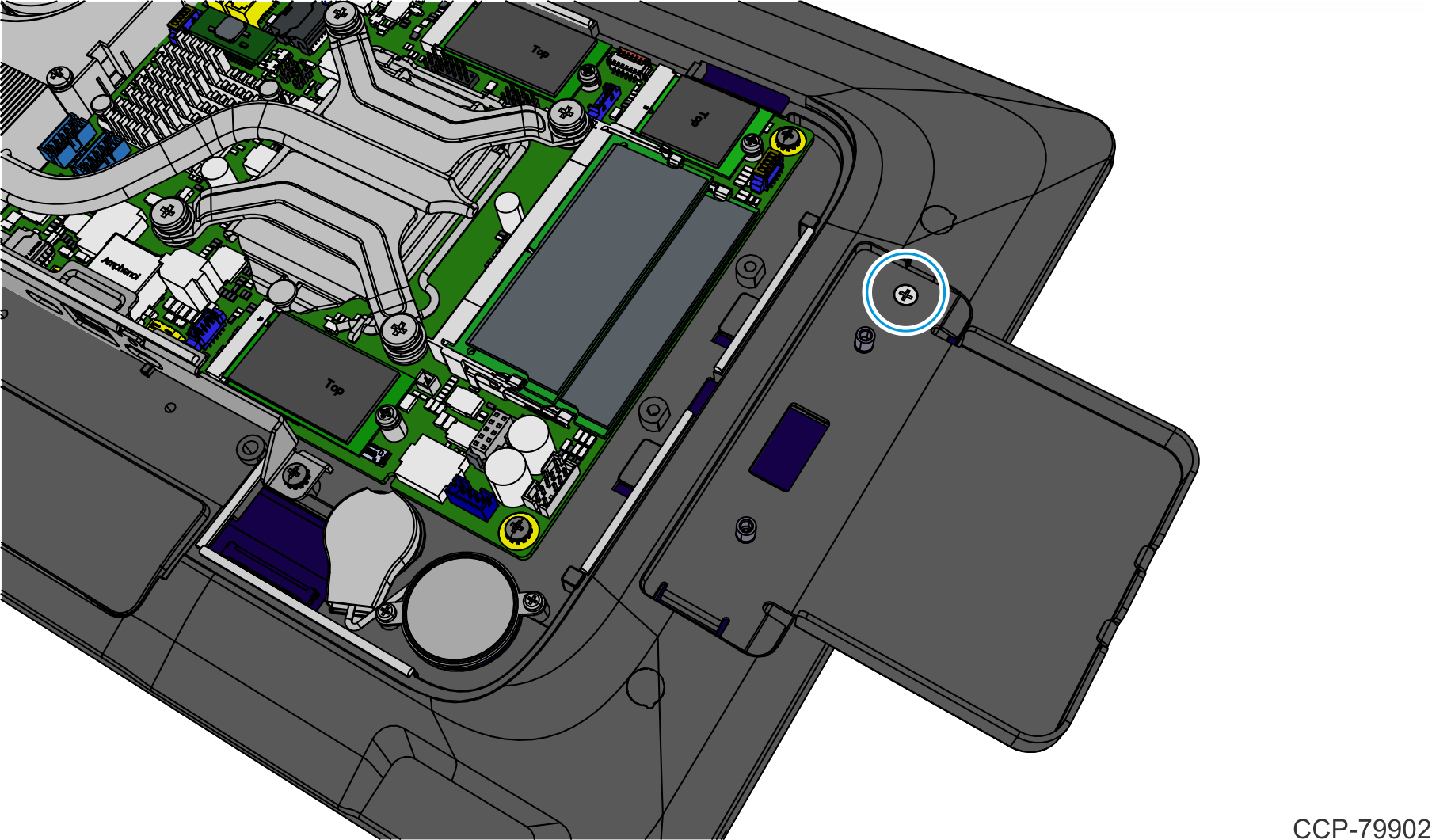

  2. Secure the Bill Validator Front Housing with a screw.

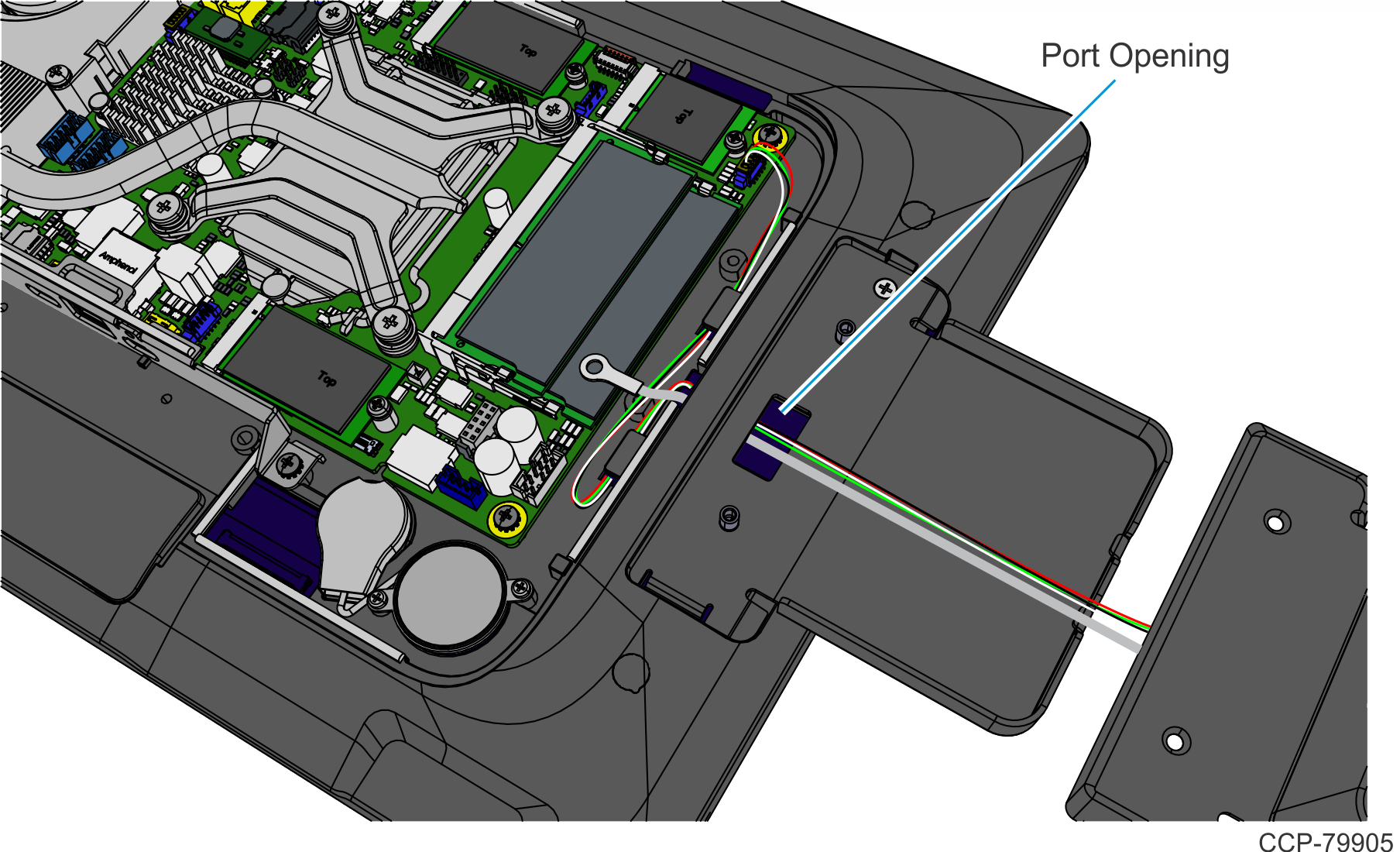

  3. Route the Bill Validator Cable and the Ground Cable through the Port opening.

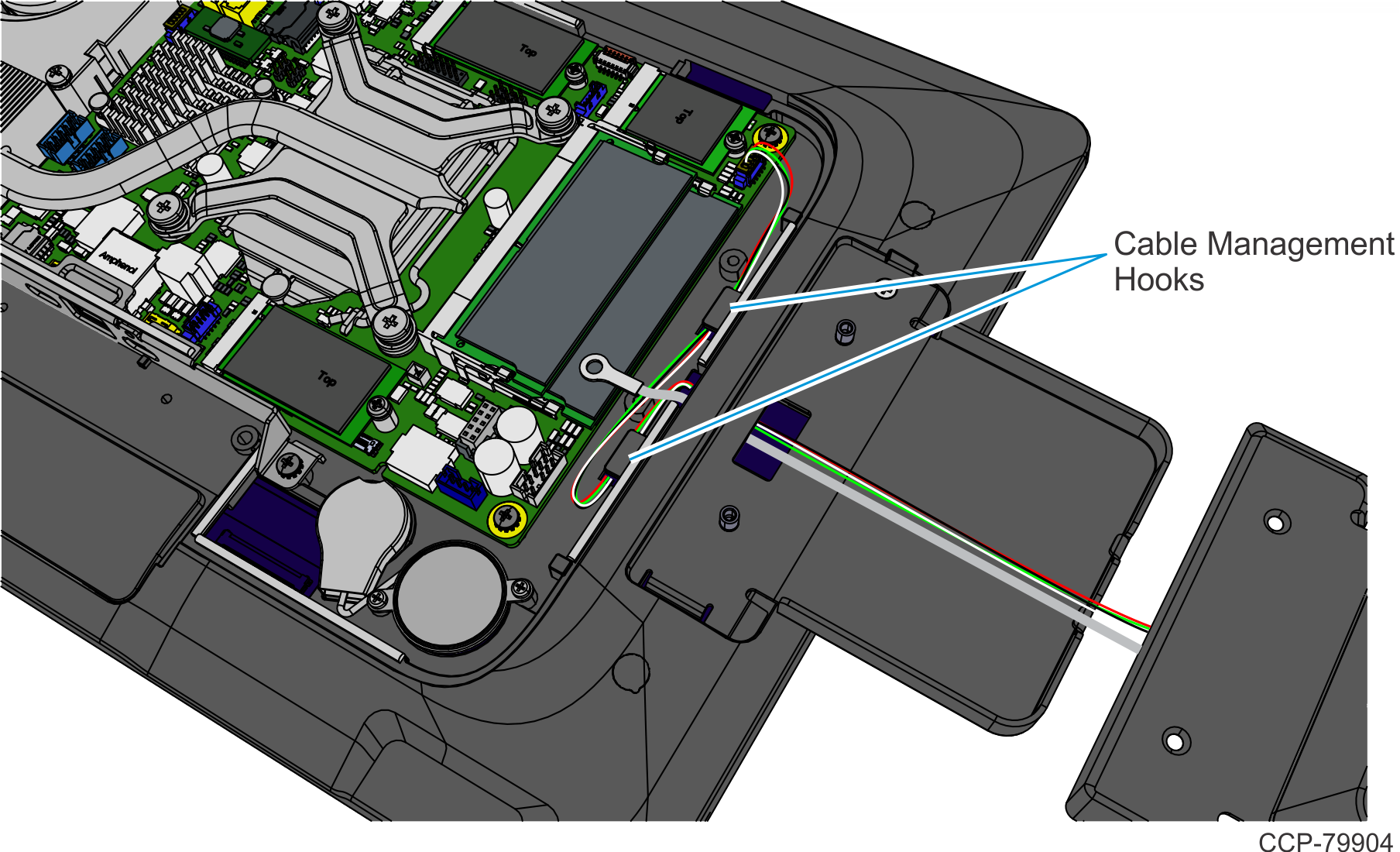

  4. Route and secure the Bill Validator Cable under the Cable Management Hooks as shown.

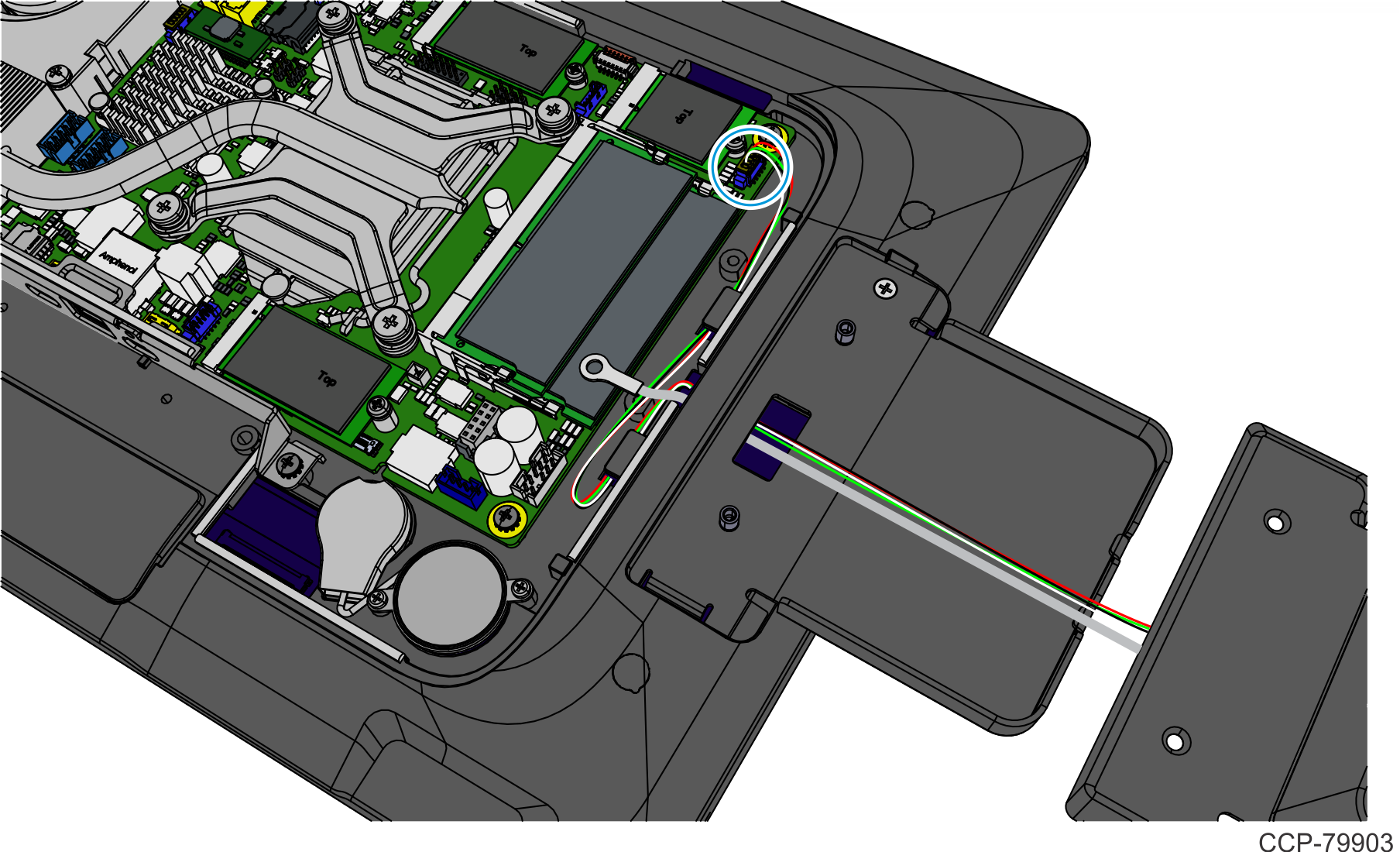

  5. Connect the Bill Validator Cable to the Motherboard.

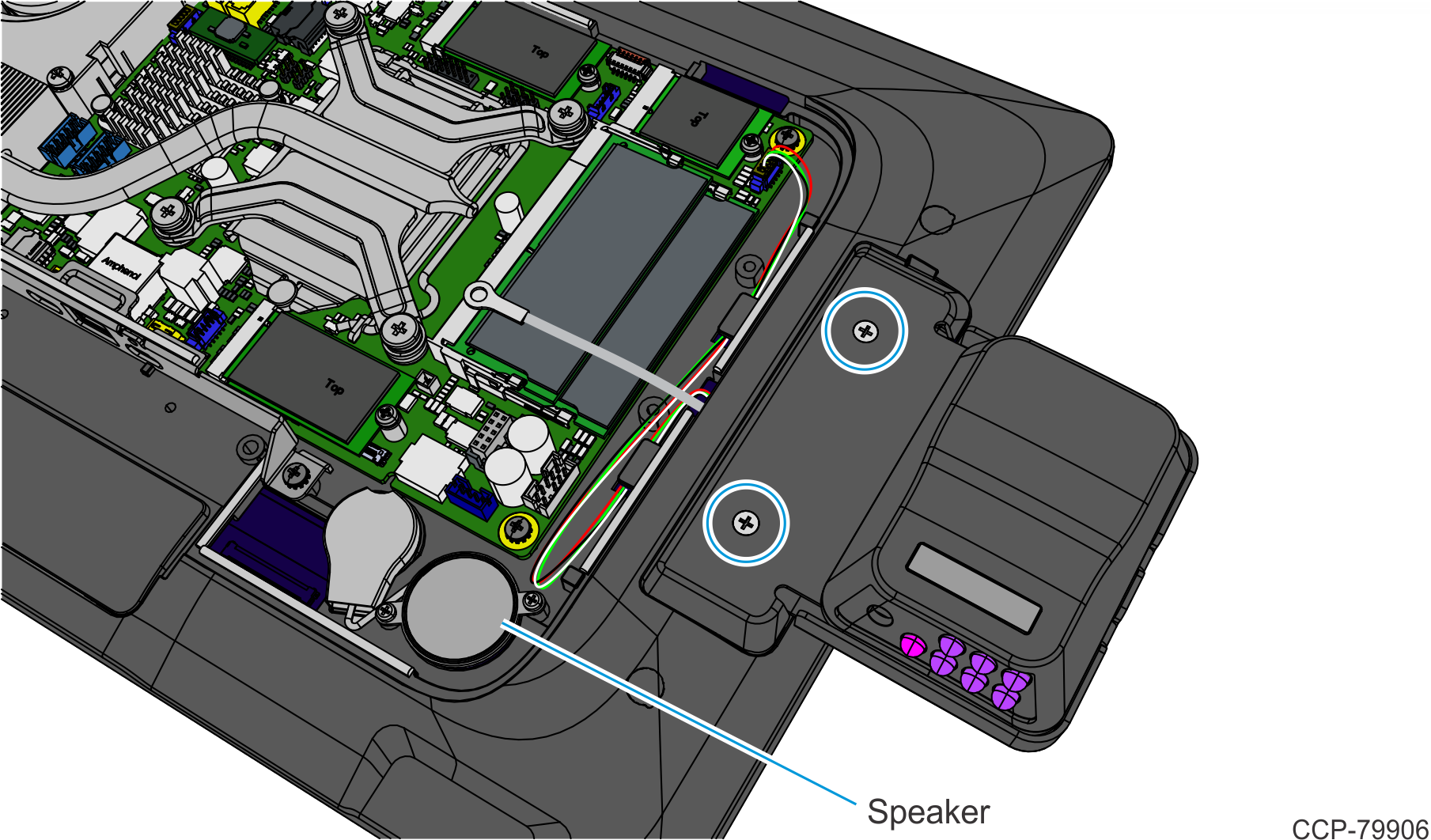

  6. Pull the excess Bill Validator Cable until the cable reaches just above the speaker. Tuck the rest of the excess Bill Validator Cable under the Bill Validator Front Housing, then install the Bill Validator on the Bill Validator Front Housing (2 screws).

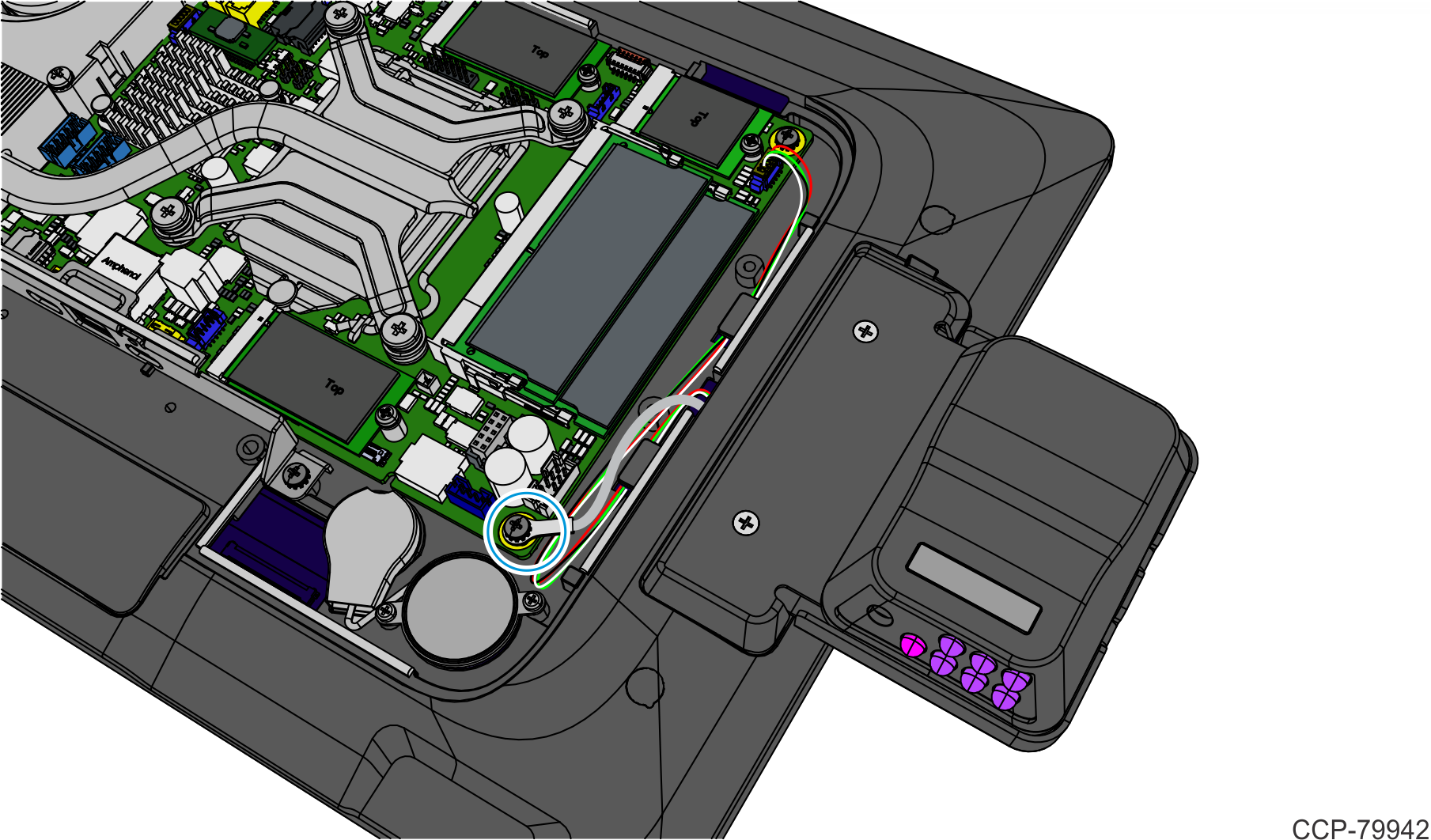

  7. Secure the Ground Cable under the corner Motherboard Screw.

  1. Reinstall the Display Back Cover.
  2. Reconnect the 180-degree USB-C Cable and Ethernet Cable.
  3. Reinstall the Cable Cover.
