7772-K200 Tamper Resistant Cover, Remote I/O

This kit provides a Tamper Resistant Cover for the Remote I/O Chassis of the NCR CX7 All-in-One POS (7772) or NCR CX5 All-in-One POS (7773).

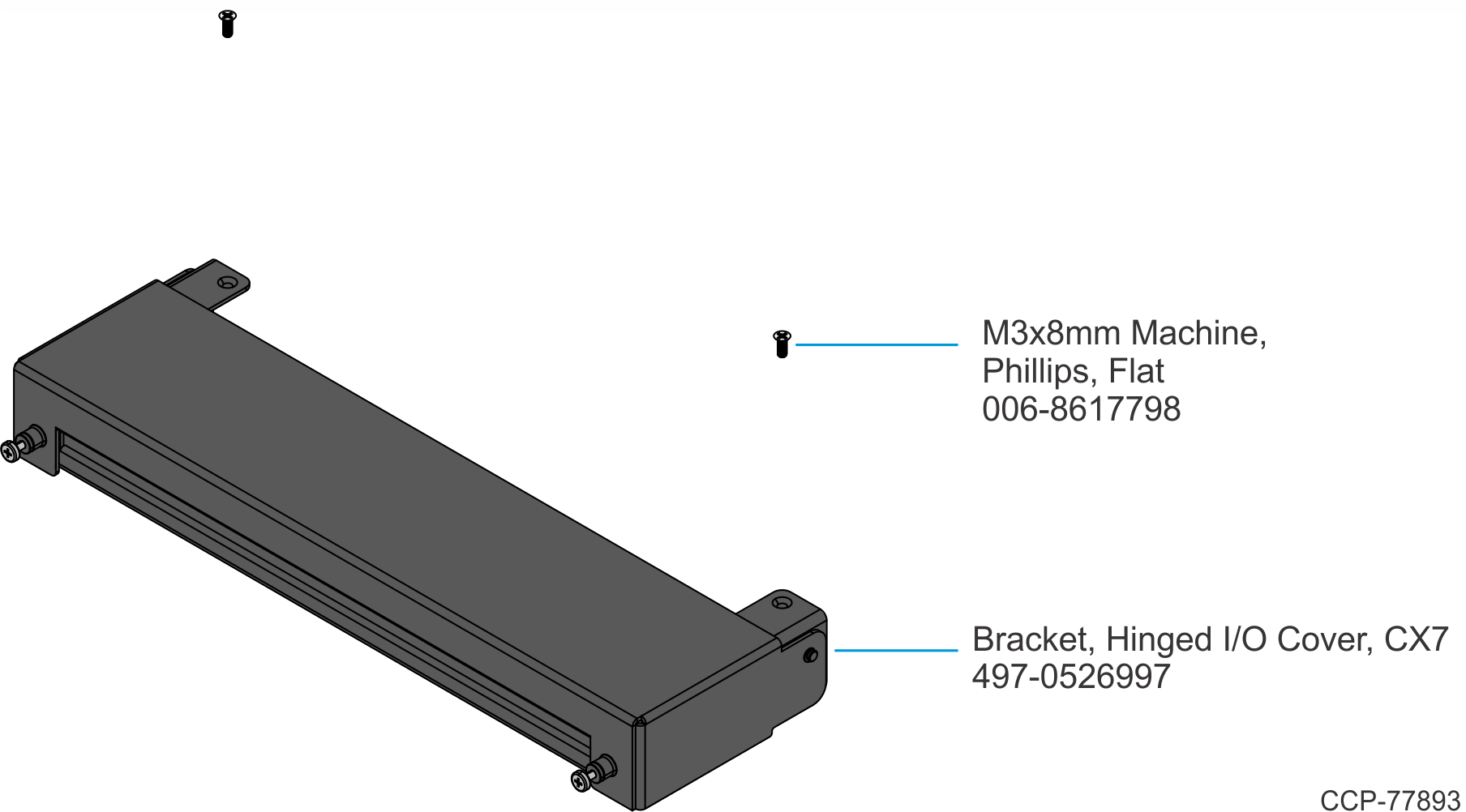

Kit Contents

Installation Procedure

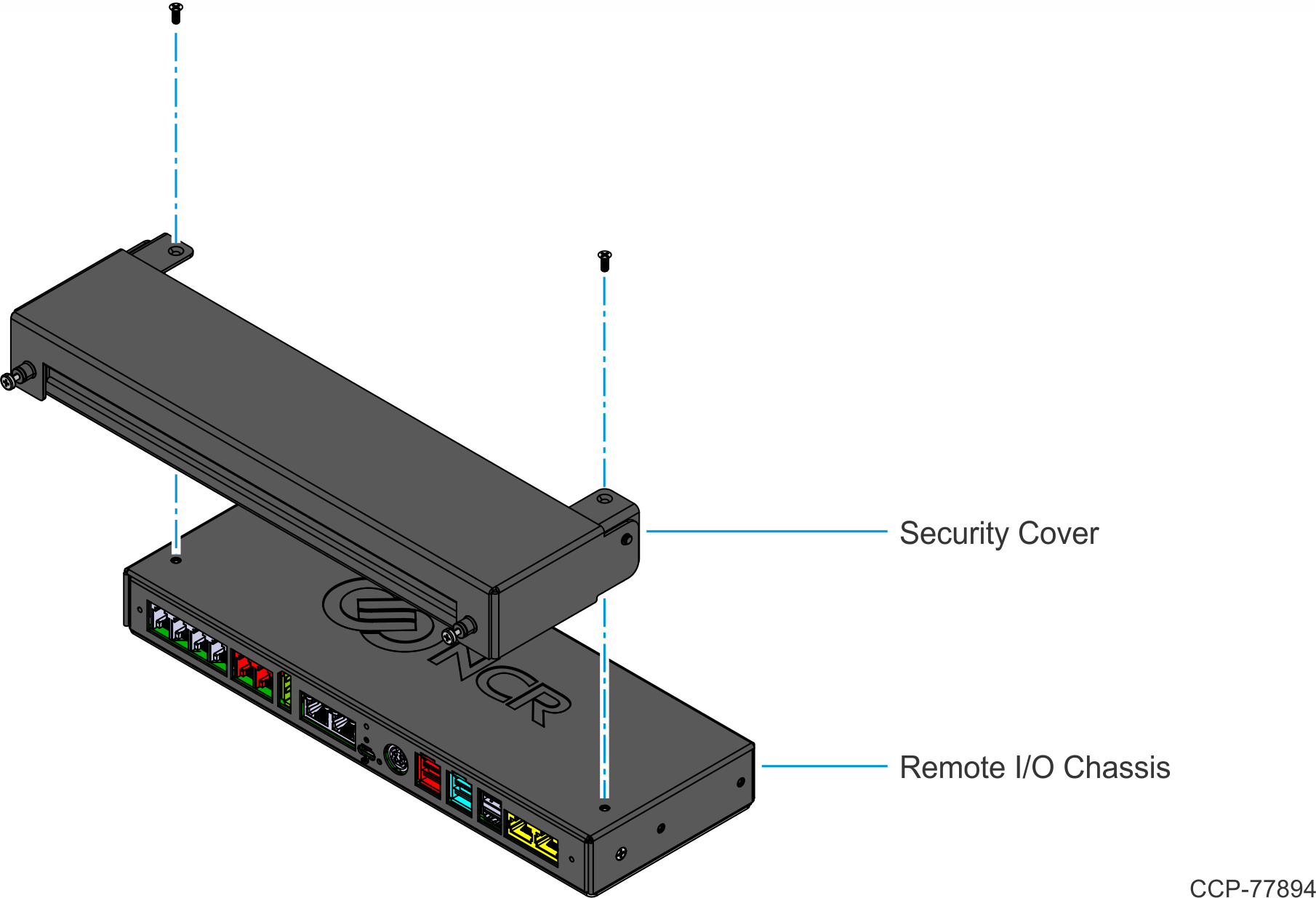

1. Install the Tamper Resistant Cover on the Remote I/O Chassis using two (2) screws.

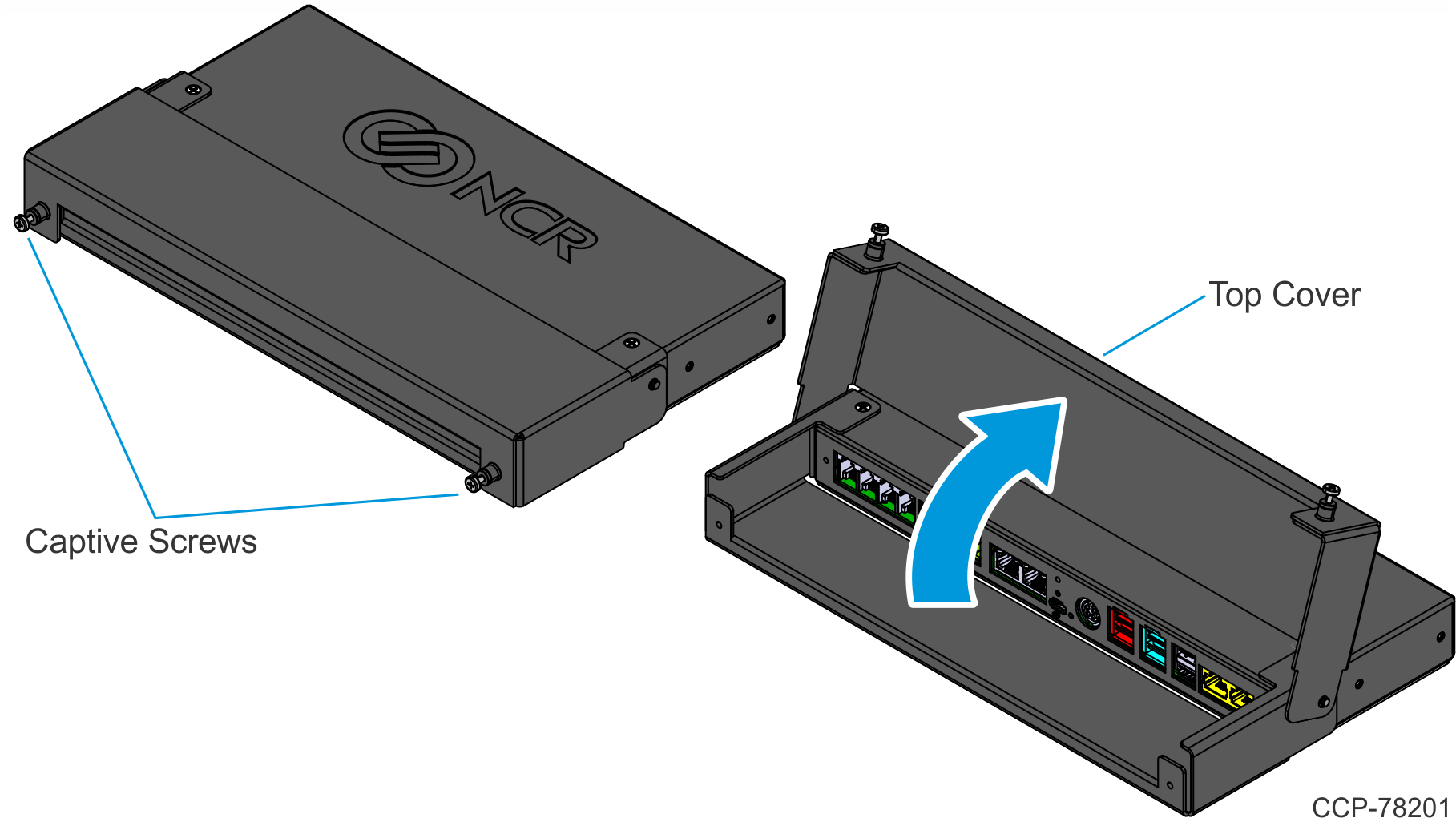

2. Loosen the captive screws of the Tamper Resistant Cover and lift the Top Cover to open.



3. Connect the cables to the I/O.

   USB Centric (Retail) Remote I/O Chassis



   Callout	Port Name
   1	RJ50 Serial (Enhanced UART)
   2	Dual USB 3.0
   3	DisplayPort
   4	DB9 Serial (Standard UART)
   5	LAN In Note Connect to Ethernet Network
   6	LAN Out Note Connect to the CX Head
   7	USB-C
   8	LED
   9	24V Power In
   10	USB 12V
   11	USB 24V
   12	Cash Drawer

   Serial Centric (Hospitality) Remote I/O Chassis



   Callout	Port Name
   1	RJ12 Serial COM1 (Enhanced UART) COM2 (Standard UART) COM3 (Enhanced UART) COM4 (Standard UART)
   2	Cash Drawer A
   3	Cash Drawer B
   4	DisplayPort
   5	LAN In Note Connect to Ethernet Network
   6	LAN Out Note Connect to the CX Head
   7	USB-C
   8	LED
   9	24V Power In
   10	USB 24V
   11	USB 12V
   12	Dual USB 3.0
   13	RJ45 Serial COM5 (Enhanced UART) COM6 (Standard UART)

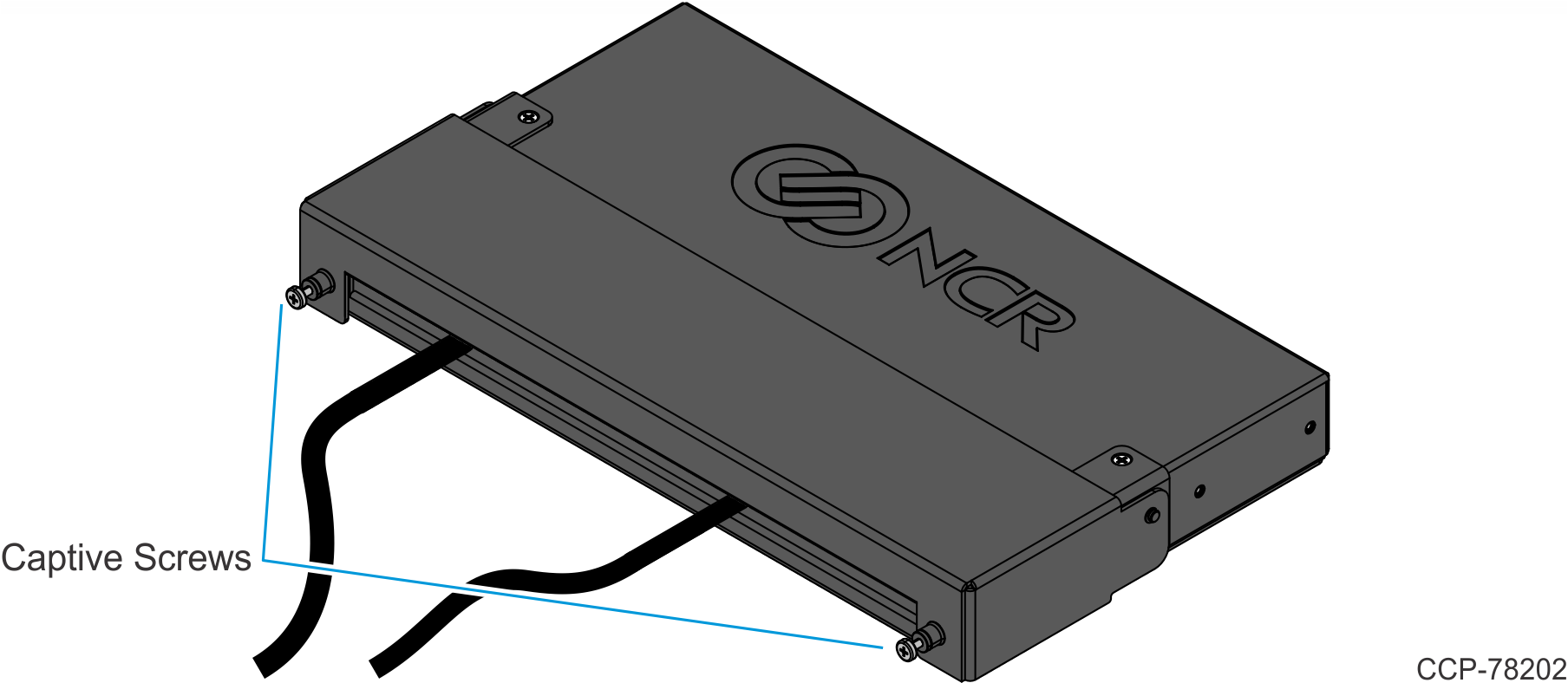

4. Close the Top Cover and tighten the captive screws.
