7772-K300/K310 Tamper Resistant Bracket, Integrated I/O

This kit provides a Tamper Resistant Bracket for the CX7 with Integrated I/O.

  • 7772-K300 – Tamper Resistant Bracket, Integrated I/O, 15.6” 16:9 Display
  • 7772-K310 – Tamper Resistant Bracket, Integrated I/O, 15” 4:3 Display

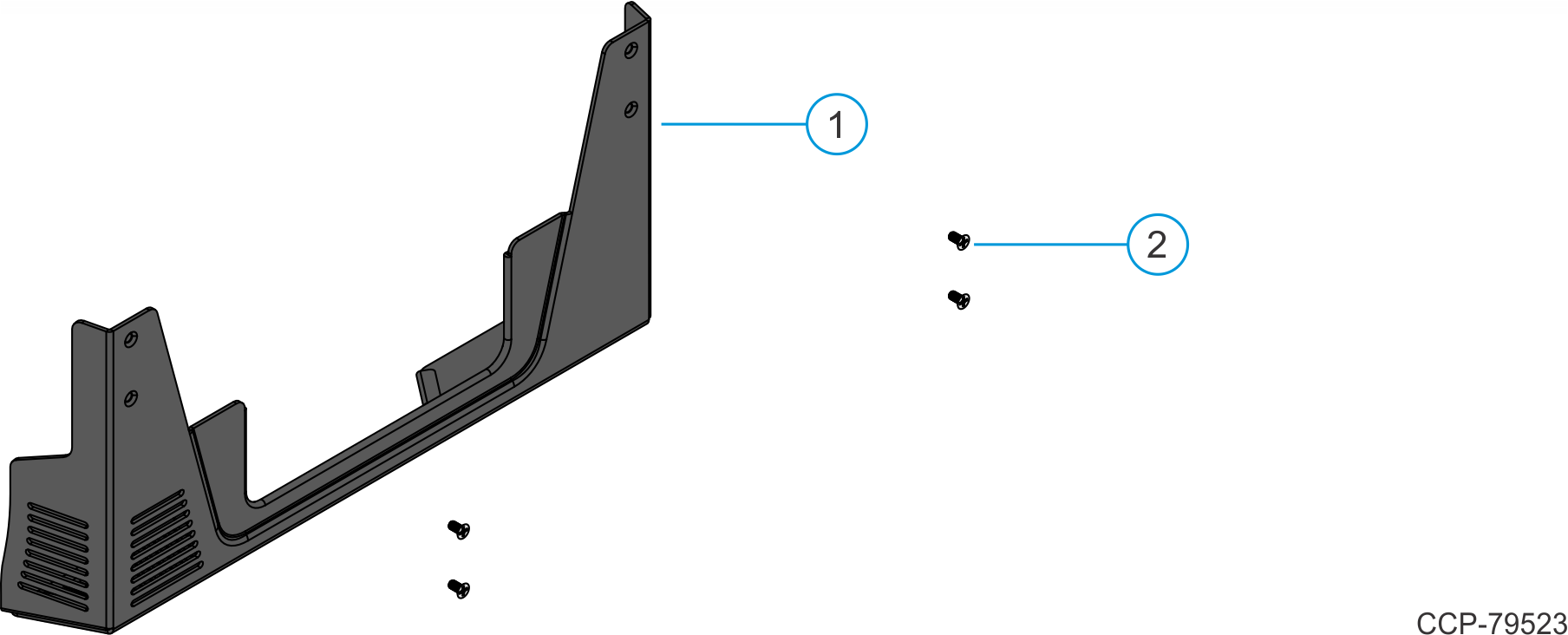

Kit Contents

7772-K300 Tamper Resistant Bracket, Integrated I/O, 15.6” 16:9 Display
ItemPart NumberDescription
  497-05275777772-K300 Tamper Resistant Bracket, Integrated I/O, 15.6” 16:9 Display
1497-0527994Bracket, Tamper Resistant, Integrated I/O, 15.6” 16:9 Display
2006-8624748Screw, M3x6, Flat Head, Phillips, Black, With Thread Lock
7772-K310 Tamper Resistant Bracket, Integrated I/O, 15” 4:3 Display
ItemPart NumberDescription
 497-05283877772-K310 Tamper Resistant Bracket, Integrated I/O, 15” 4:3 Display
1497-0526948Bracket, Tamper Resistant, Integrated I/O, 15” 4:3 Display
2006-8624748Screw, M3x6, Flat Head, Phillips, Black, With Thread Lock

Installation Procedure

  1. Connect the cables to the appropriate I/O port.

    Integrated USB Centric I/O (Retail) Expansion

    CalloutPort Name
    1Cash Drawer
    2USB 24V
    3USB 12V
    424V Power In
    5Status LED
    6USB-C
    7DB9 Serial (Standard UART)
    8DisplayPort
    9Dual USB 3.0
    10RJ50 Serial (Enhanced UART)

    Integrated Serial Centric I/O (Hospitality) Expansion

    CalloutPort Name
    1RJ45 Serial
    • COM5 (Enhanced UART)
    • COM6 (Standard UART)
    2Dual USB 3.0
    3USB 12V
    4USB 24V
    524V Power In
    6Status LED
    7USB-C
    8DisplayPort
    9Cash Drawer B
    10Cash Drawer A
    11RJ12 Serial
    • COM1 (Enhanced UART)
    • COM2 (Standard UART)
    • COM3 (Enhanced UART)
    • COM4 (Standard UART)

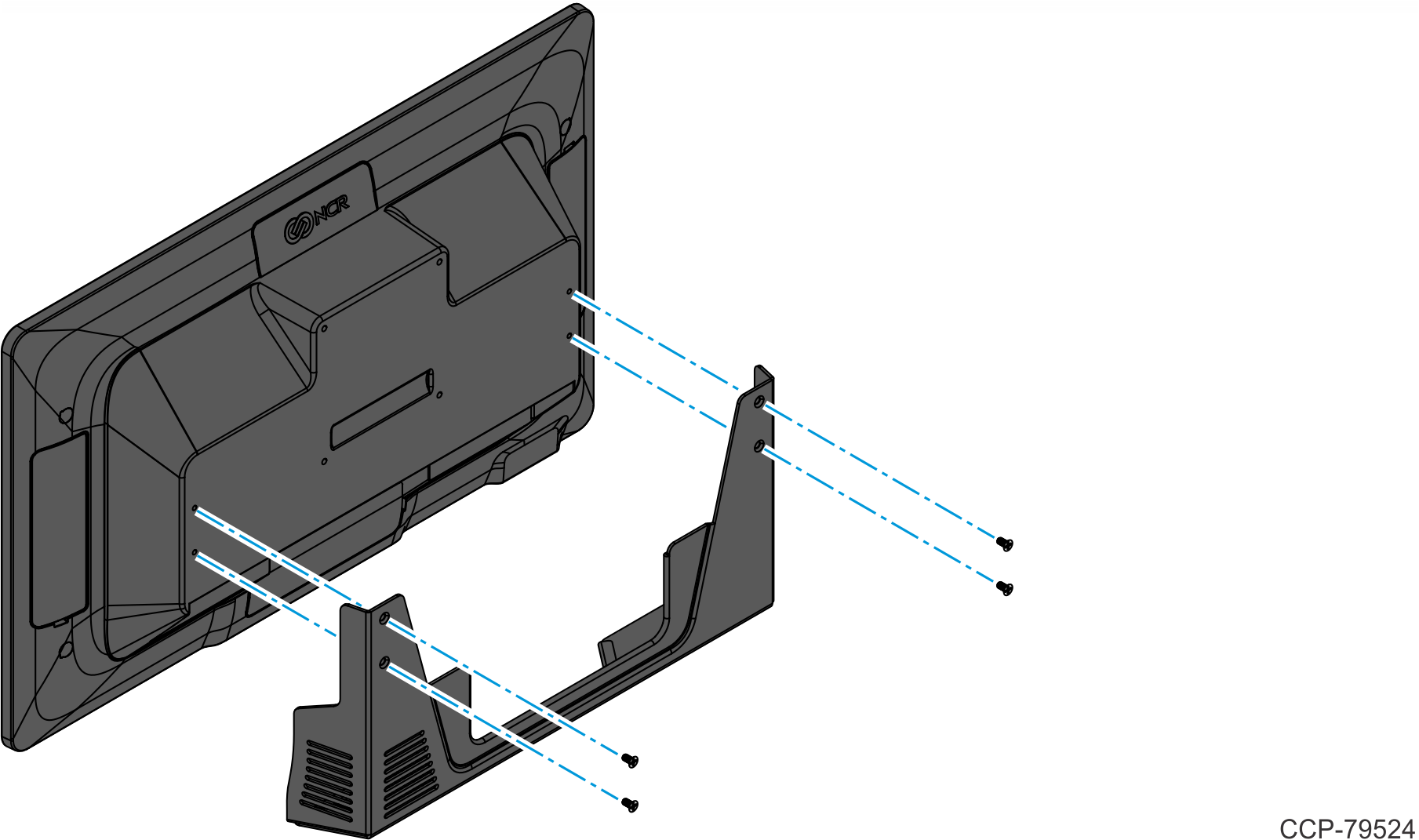

  2. Install the Tamper Resistant Bracket on the Integrated I/O (4 screws).
