7772-K320 Bracket, Wall Mount, Integrated I/O

This kit provides a Wall Mount Bracket for the CX7 with Integrated I/O.

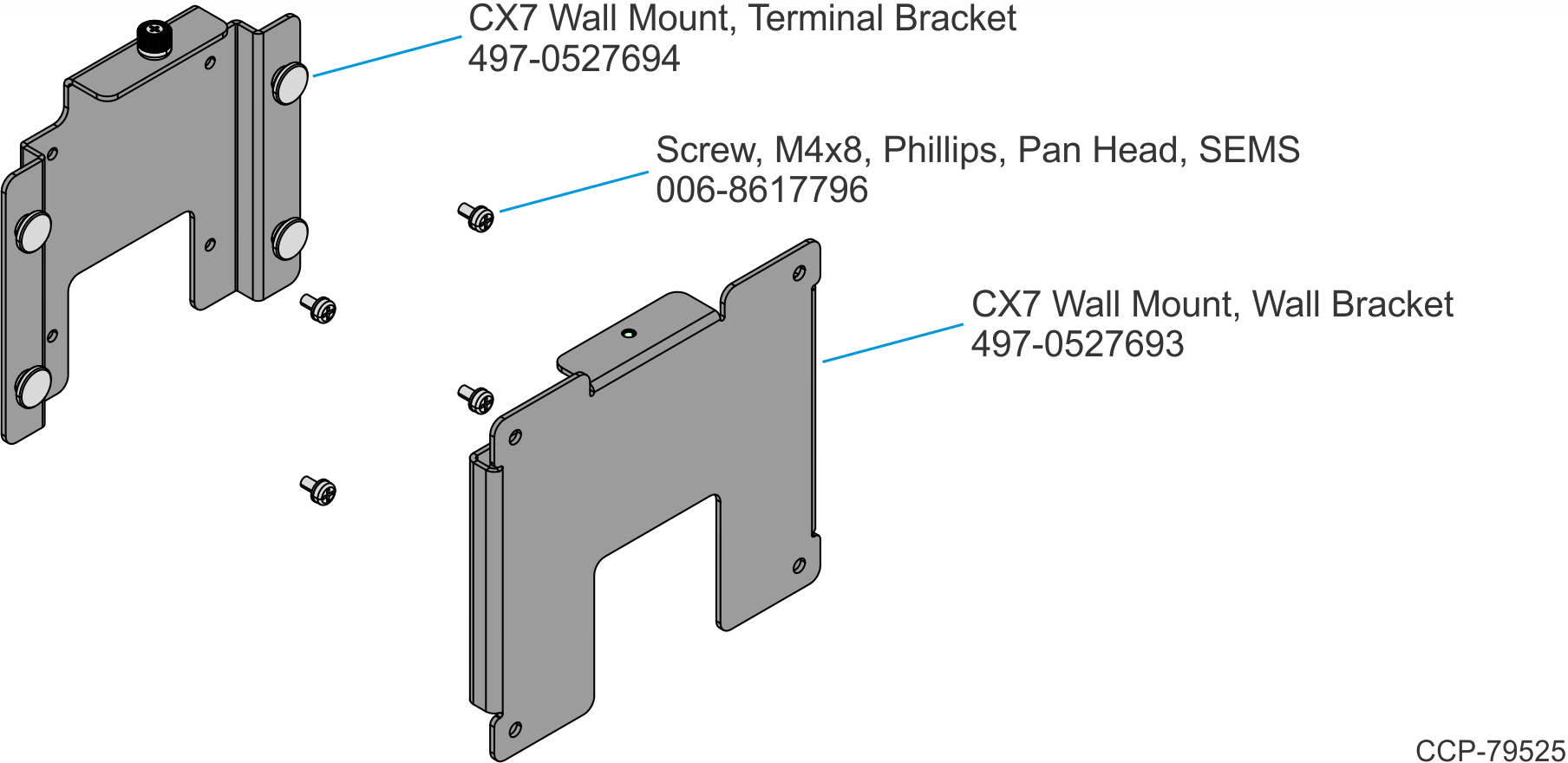

Kit Contents

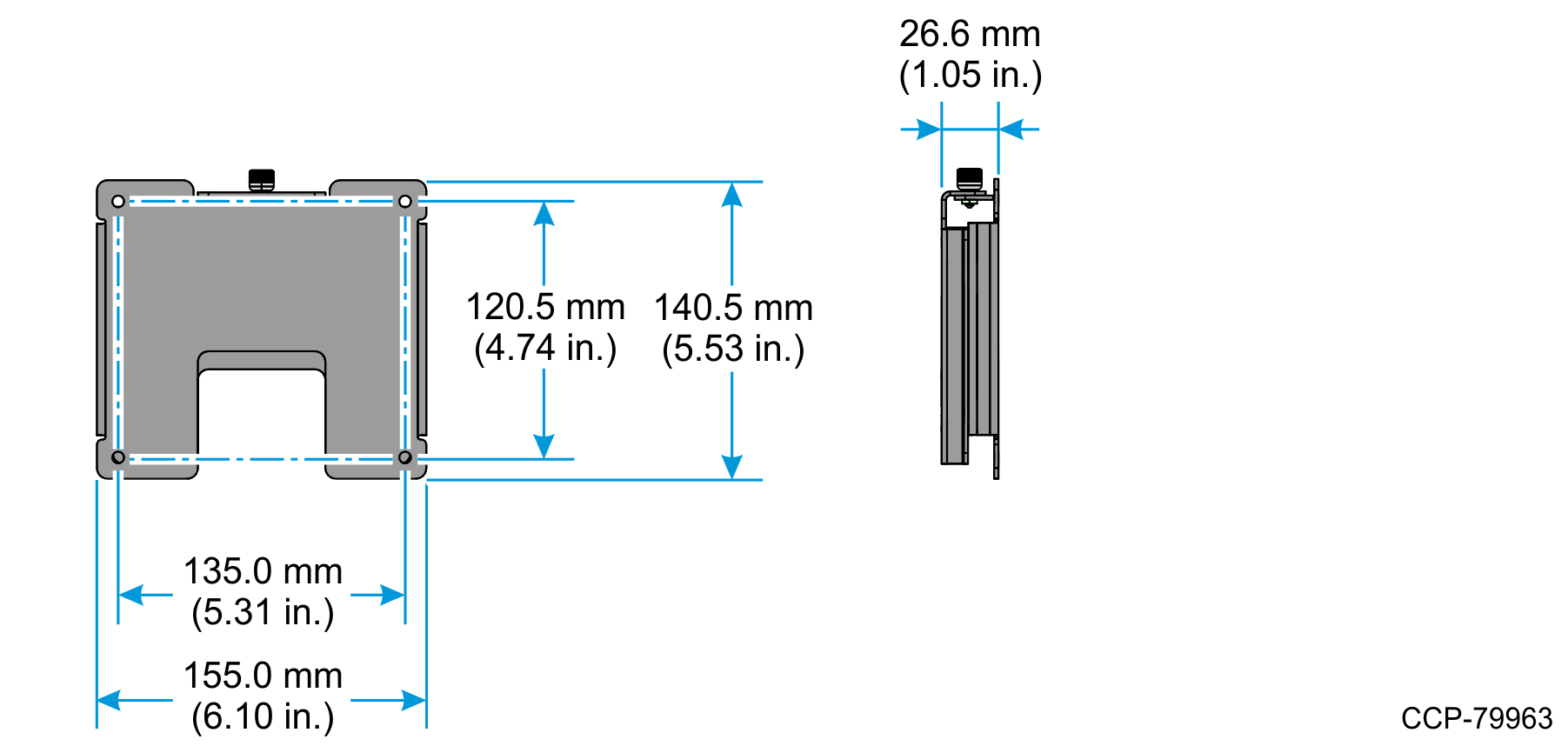

Dimensions

Installation Procedure

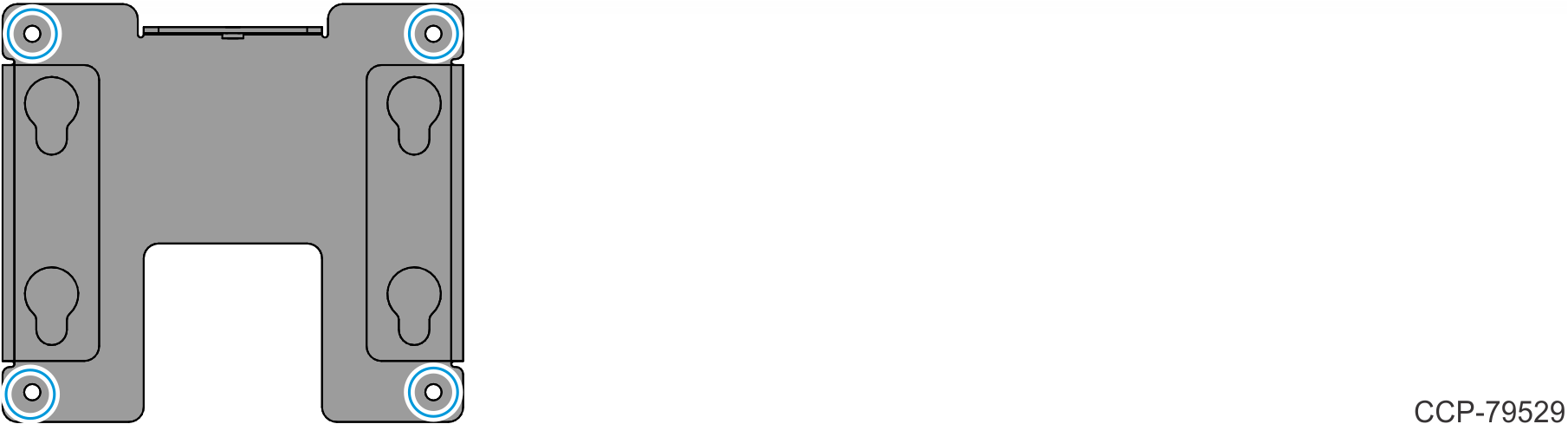

1. Install the Wall Bracket on the wall (4 screws). Use appropriate hardware for drywall or concrete/brick wall. For drywall, it is preferred, but not necessary, to mount one side of holes to a stud.

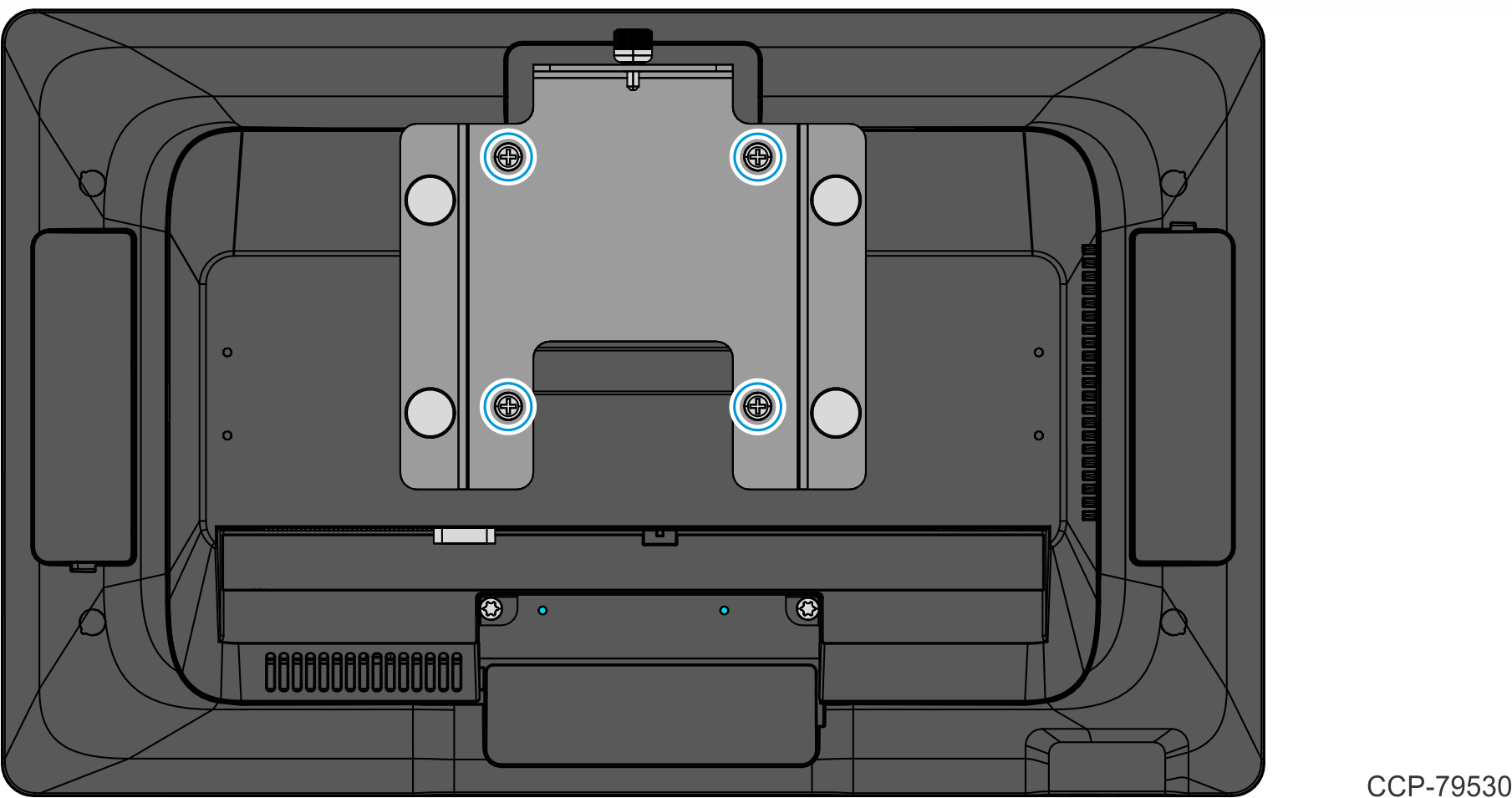

2. Install the Terminal Bracket on the back of the CX7 (4 screws).

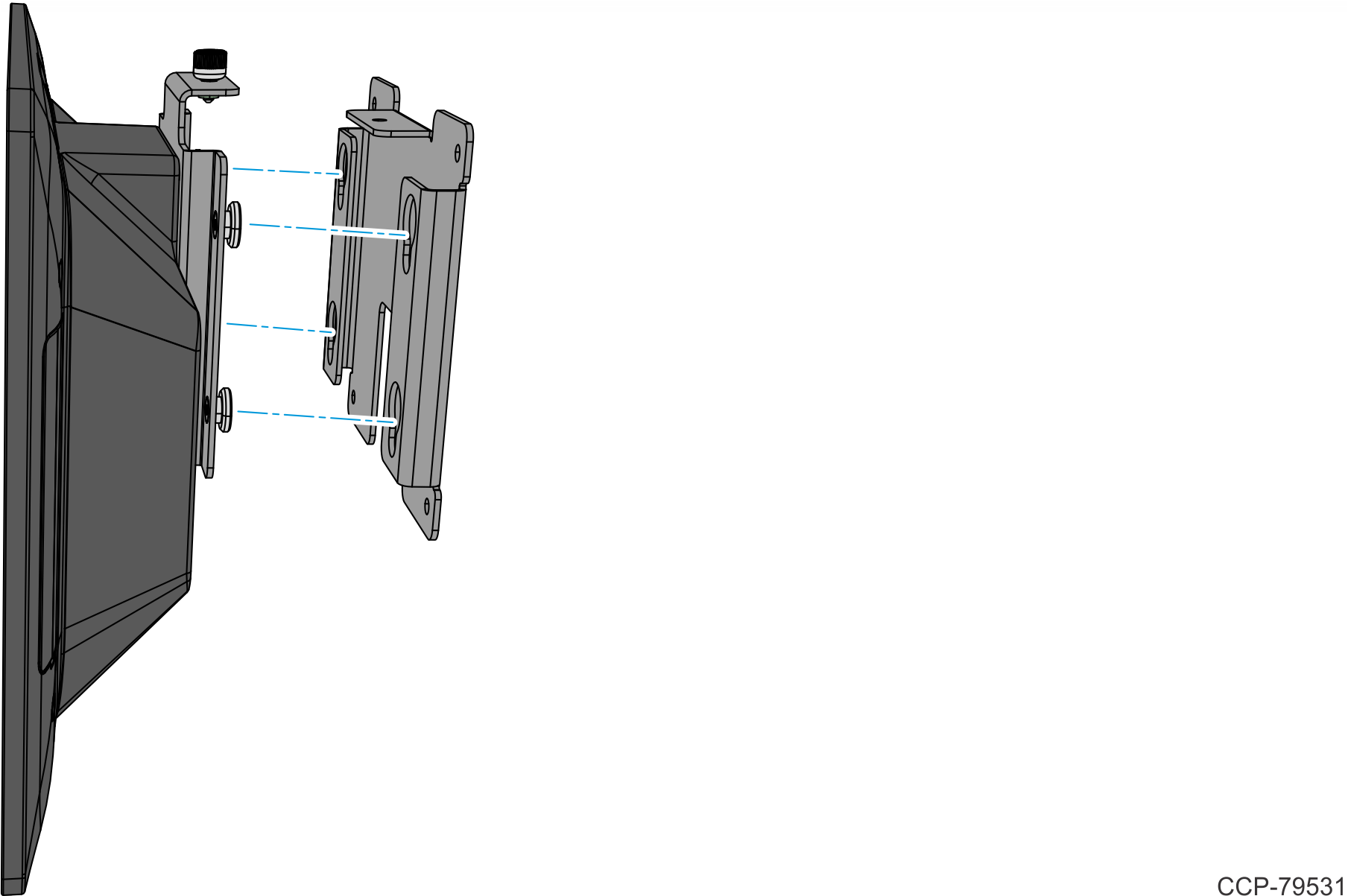

3. Hook the Terminal Bracket to the Wall Bracket.

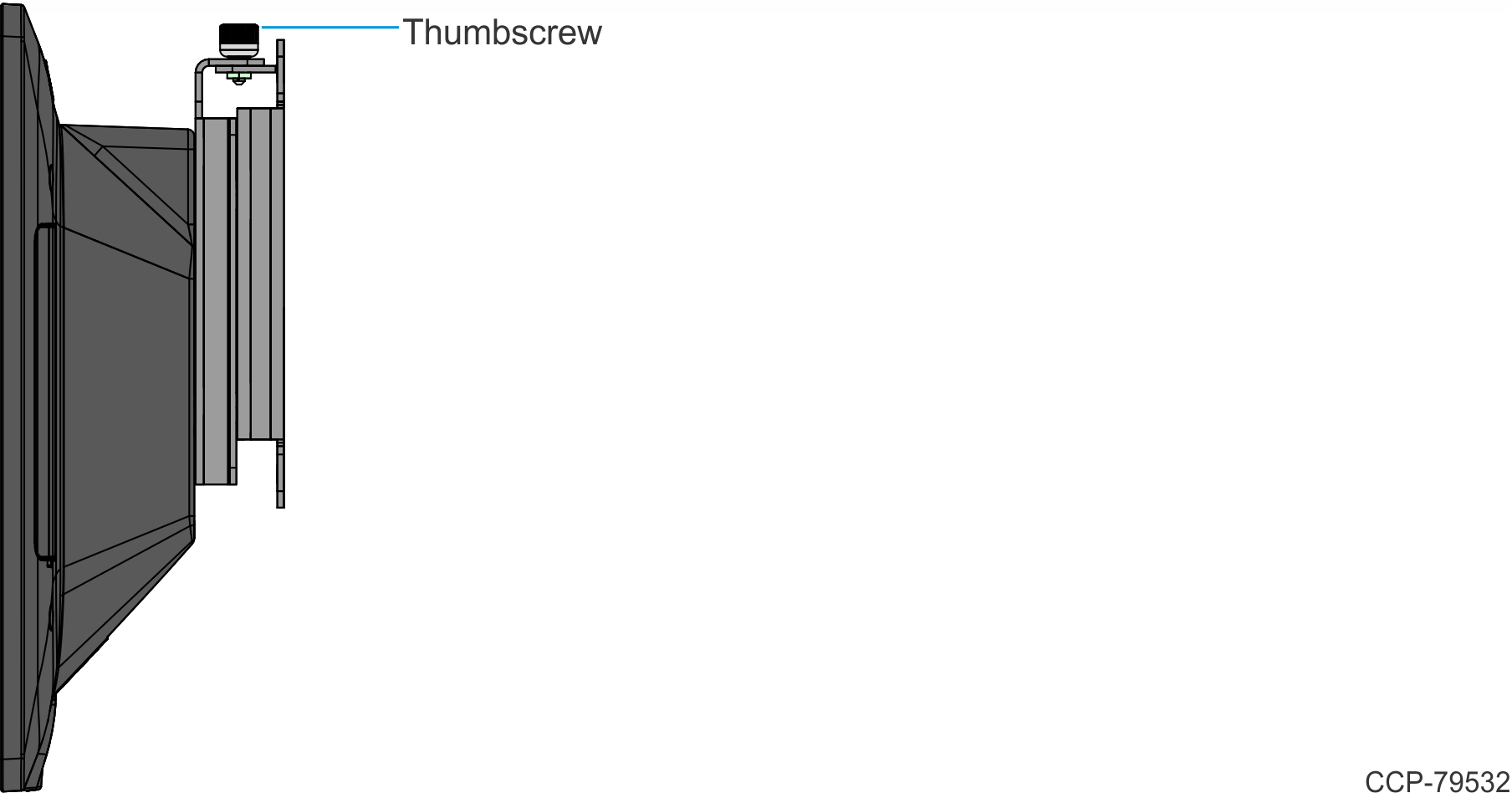

4. Tighten the Thumbscrew to secure the Brackets.
