7772-K462 Double Byte Customer Display, CX
This kit provides a Double Byte Customer Display for the NCR CX7 All-in-One POS (7772) or NCR CX5 All-in-One POS (7773).

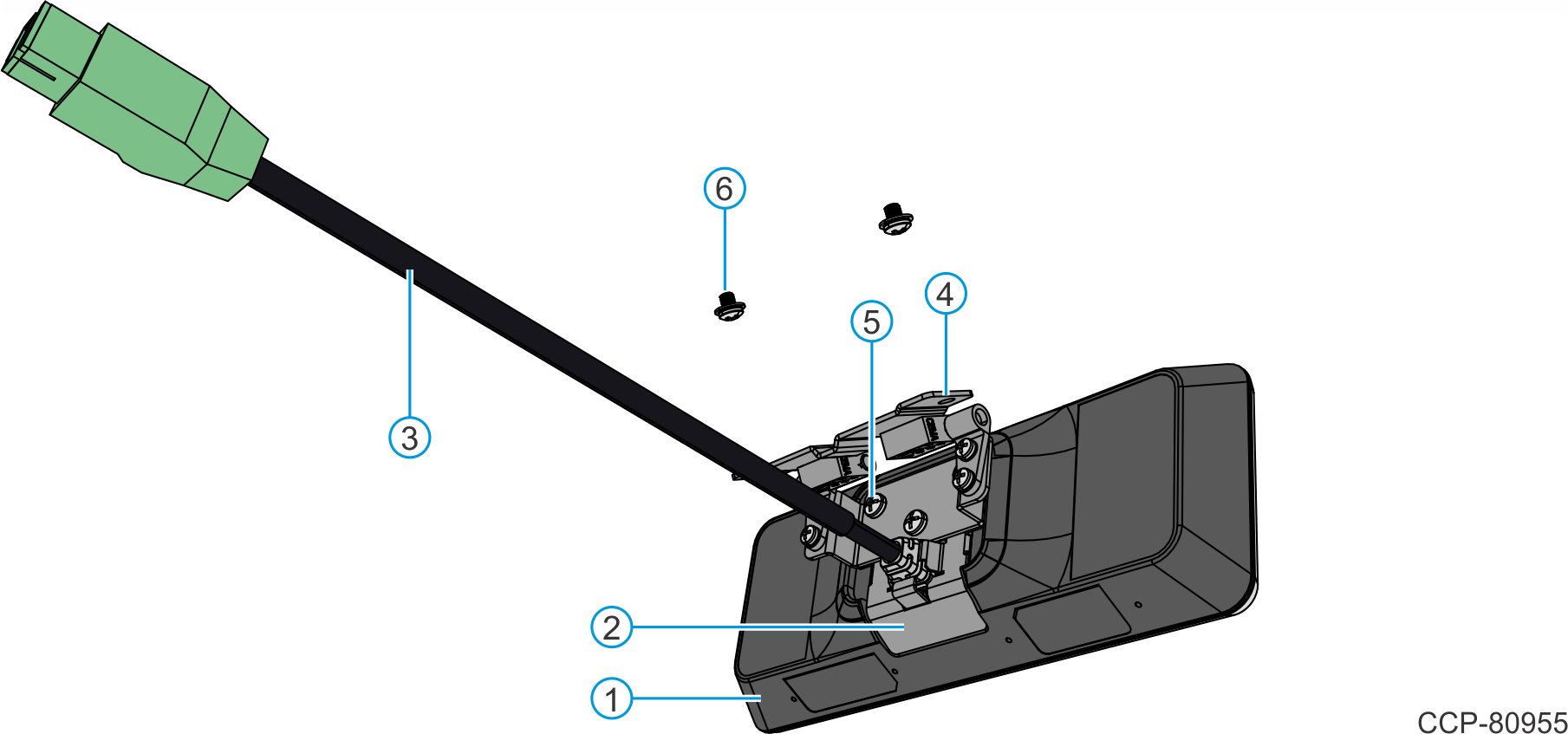

Kit Contents
| Item | Part Number | Description |
|---|---|---|
| 1 | 497-0515577 | Double Byte Customer Display Assembly |
| 2 | 445-0744459 | Cable Management Bracket, 2x20 |
| 3 | 497-0514185 | Cable, +12V USB+Power to 5977 Hirose Connector, 0.45m |
| 4 | 497-0530977 | 2x20 Bracket Assembly, CX Head |
| 5 | 006-8615964 | Screw, M4x8 Machine, Phillips, Pan Head, Steel, Black |
| 6 | 006-8627438 | Screw, M4x5 SEMS, Phillips, Pan Head, Black |
Installation Procedure
Warning
Disconnect the AC power cord from the AC outlet and wait 30 seconds before servicing the terminal.

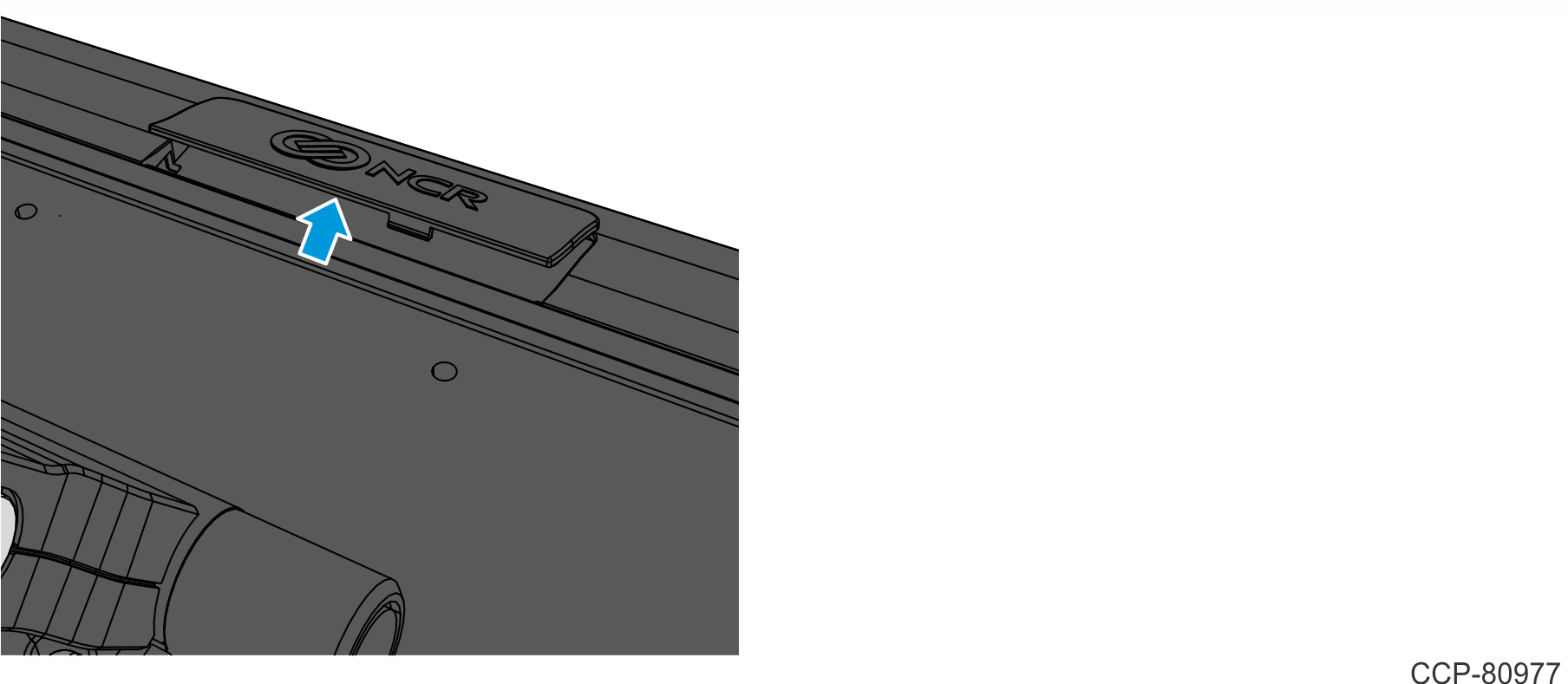

- Lift the bottom of the Plate (Logo Badge) to unsnap it from the display housing.

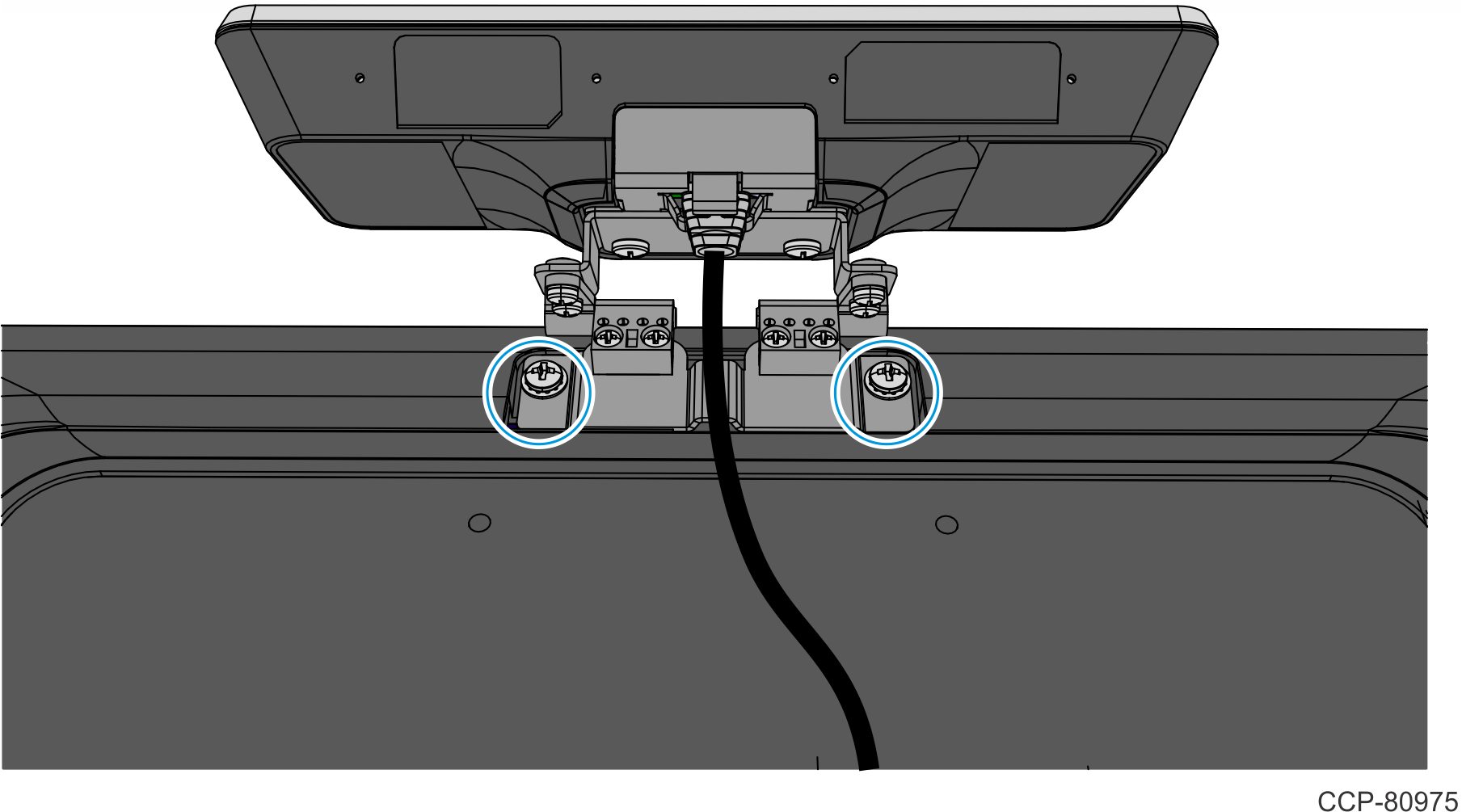

- Install the Customer Display and Hinge Assembly on the display housing (2 screws).

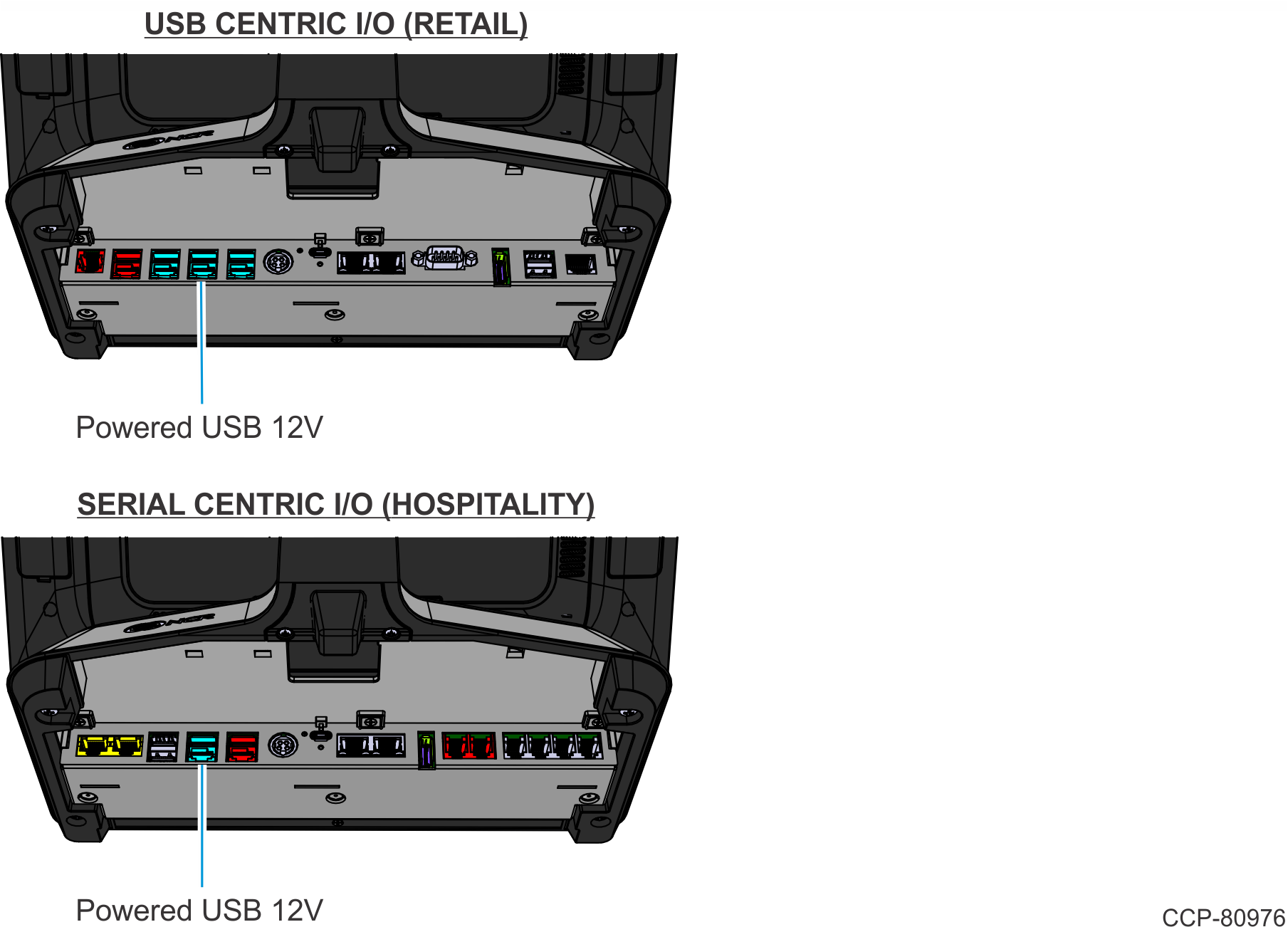

- Connect the Customer Display Cable to the Powered USB 12V connector on the I/O.Note
The USB Centric I/O has three (3) Powered USB 12V ports. Connect the Customer Display Cable to the middle port as indicated below.

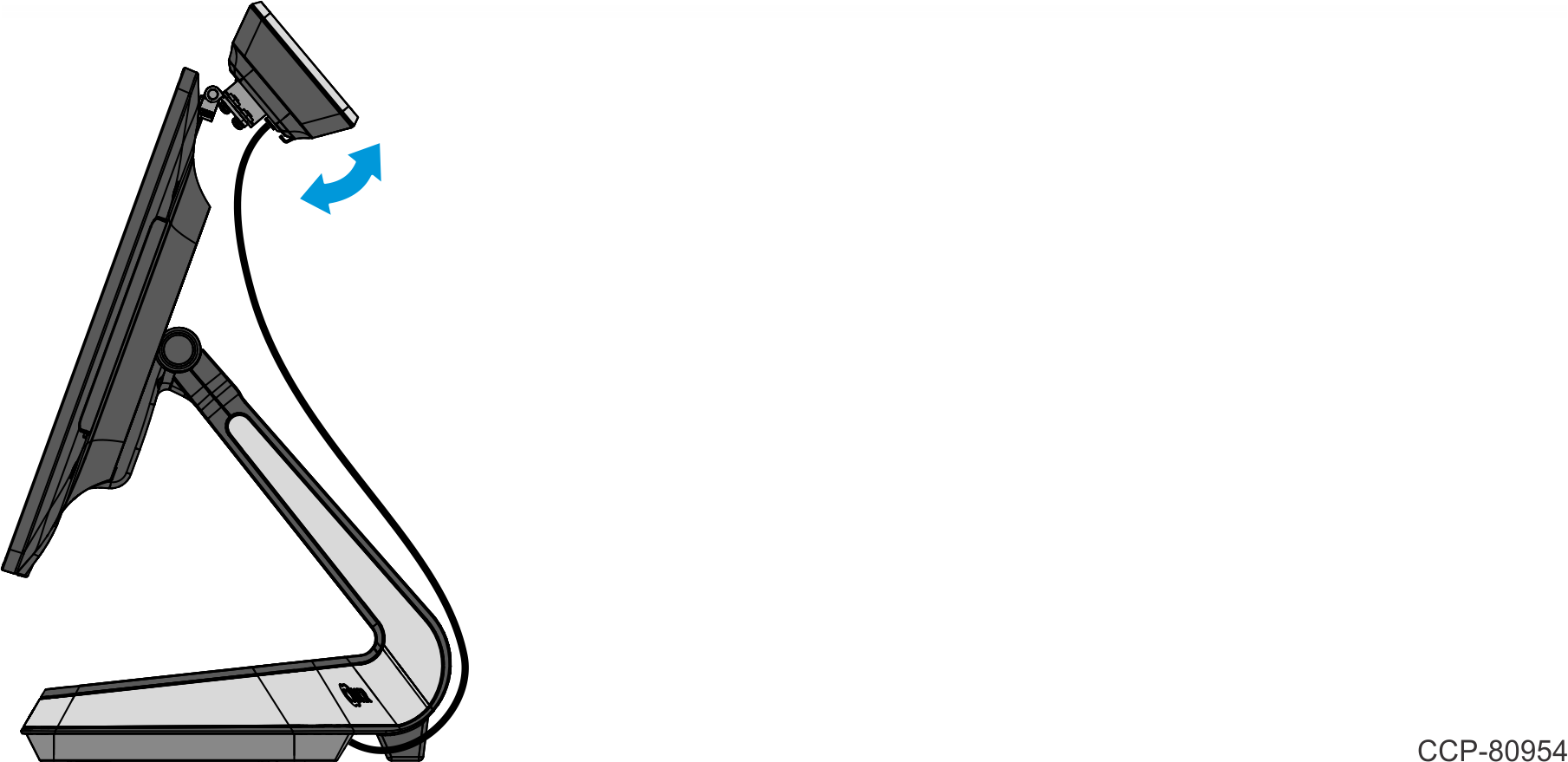

- Pivot the Customer Display into position.
