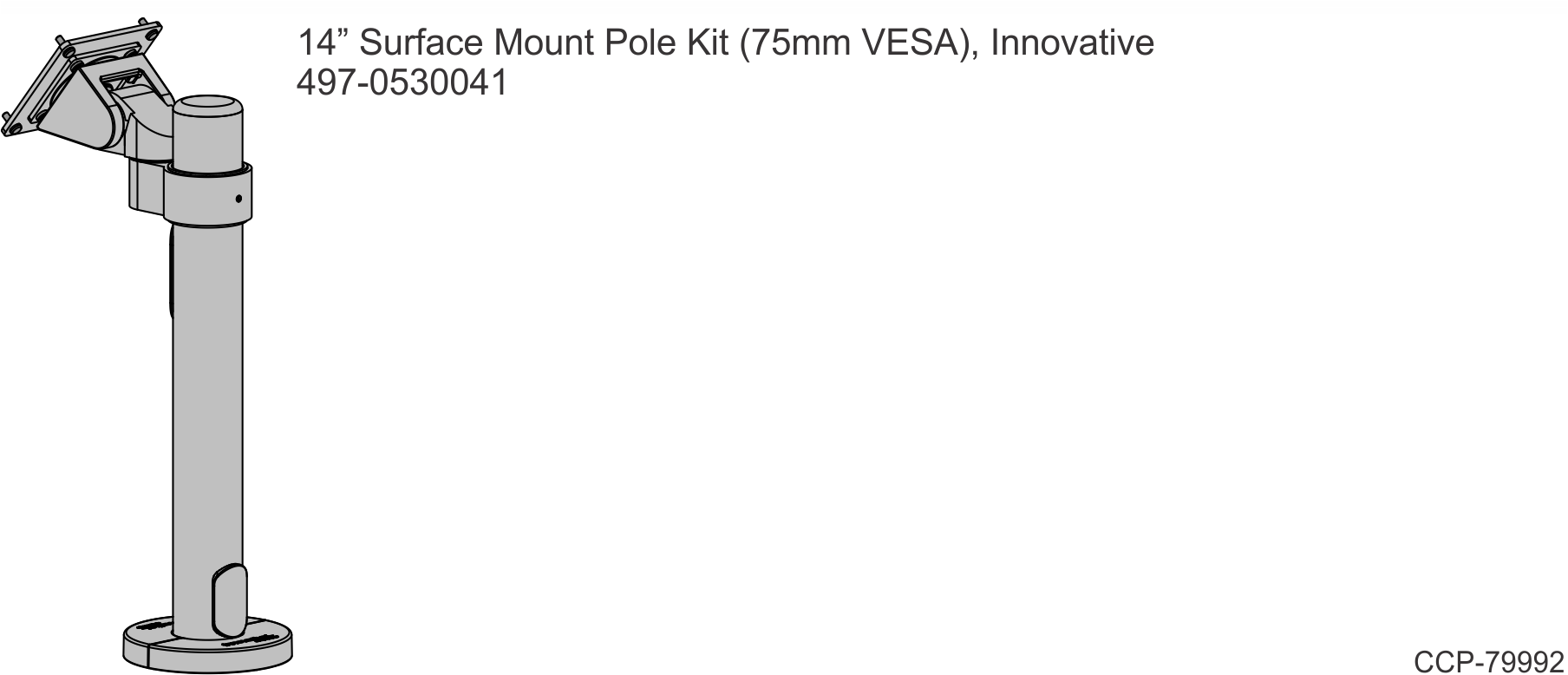

7772-K503 14” Surface Mount Pole Kit (75mm VESA), Innovative

This kit provides a 14” Surface Mount Pole with 75 mm VESA Plate for the NCR CX7 All-in-One POS (7772) or NCR CX5 All-in-One POS (7773).

Kit Contents

Installation Procedure

  1. Install the Pole on the table top (4 screws).

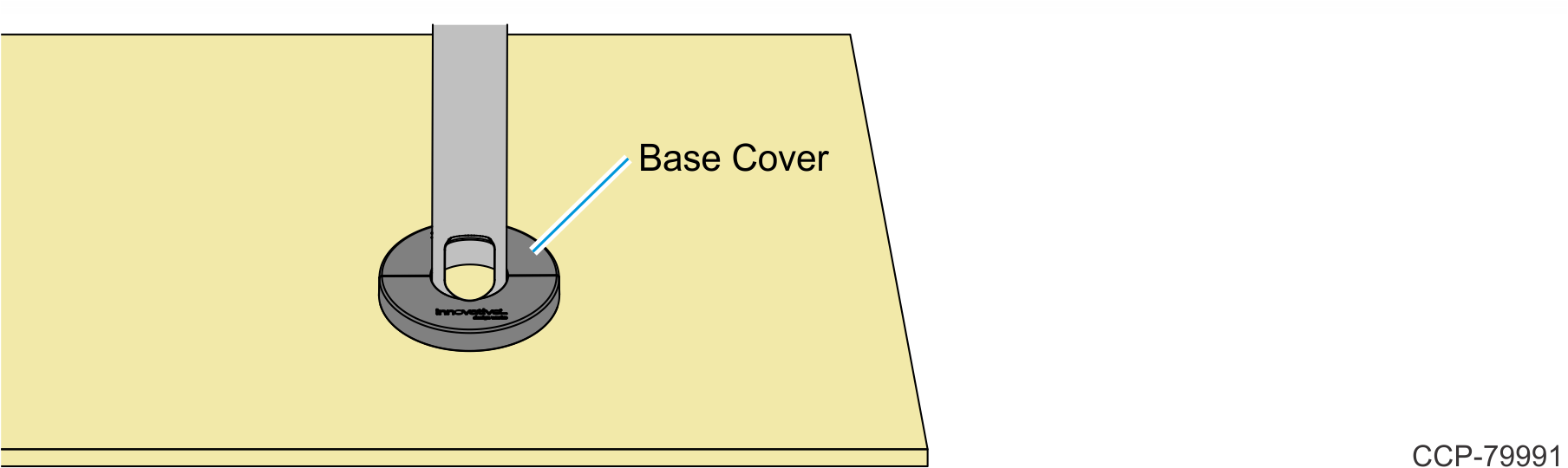

  2. Install the Base Cover.

  3. Install the VESA Plate on the back of the CX7 or CX5 (4 screws).

  4. Route the Cable(s) through the Pole.
