7772-K931 Table Top Stand and Hinge Assembly, CX, Black

This kit provides a Table Top Stand for the NCR CX7 All-in-One POS (7772).

Kit Contents

Installation Procedure

Warning

Disconnect the AC power cord from the AC outlet and wait 30 seconds before servicing the terminal.

  1. Lay the Display face down on a flat surface.
    Note

    Always use a soft material (cloth, foam) to protect the display screen when placing the terminal face down.

  1. Remove the Cable Cover.
    1. Remove the two (2) screws that secure the Cable Cover to the Back Cover.

    2. Rotate and unhook the Cable Cover from the Back Cover.

  1. Disconnect the Cables.
    1. Loosen the thumbscrew of the 180-degree USB-C Cable then disconnect the Cable.
    2. Remove the Ethernet Cable from the Cable Management Hook then disconnect the Cable.

  2. Loosen the two (2) captive screws that secure the Back Cover to the Display.

  3. Rotate the Back Cover away from the Display and unhook the Back Cover Tabs.

  1. Remove the four (4) screws securing the Display Back Cover to the hinge of the Base.

  1. Install the Back Cover on the Display.
    1. Insert the Back Cover Tabs into the openings in the back of the Display, then rotate the Back Cover onto the Display.

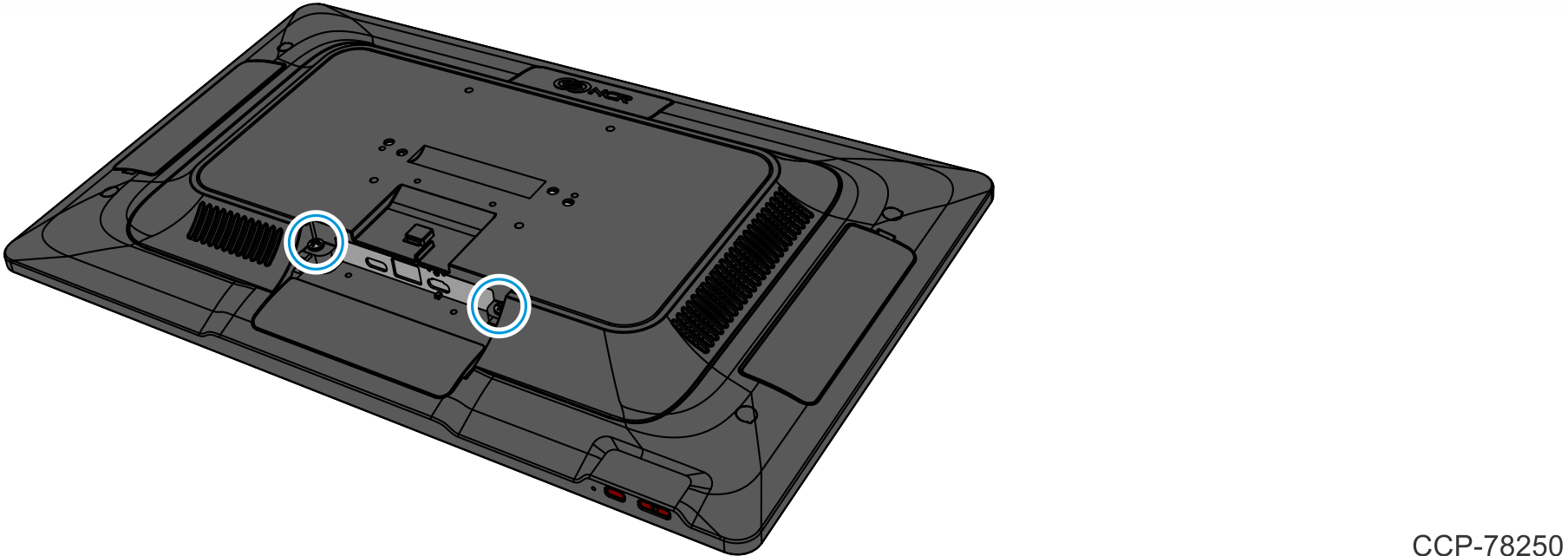

    2. Secure the Back Cover with two (2) captive screws.

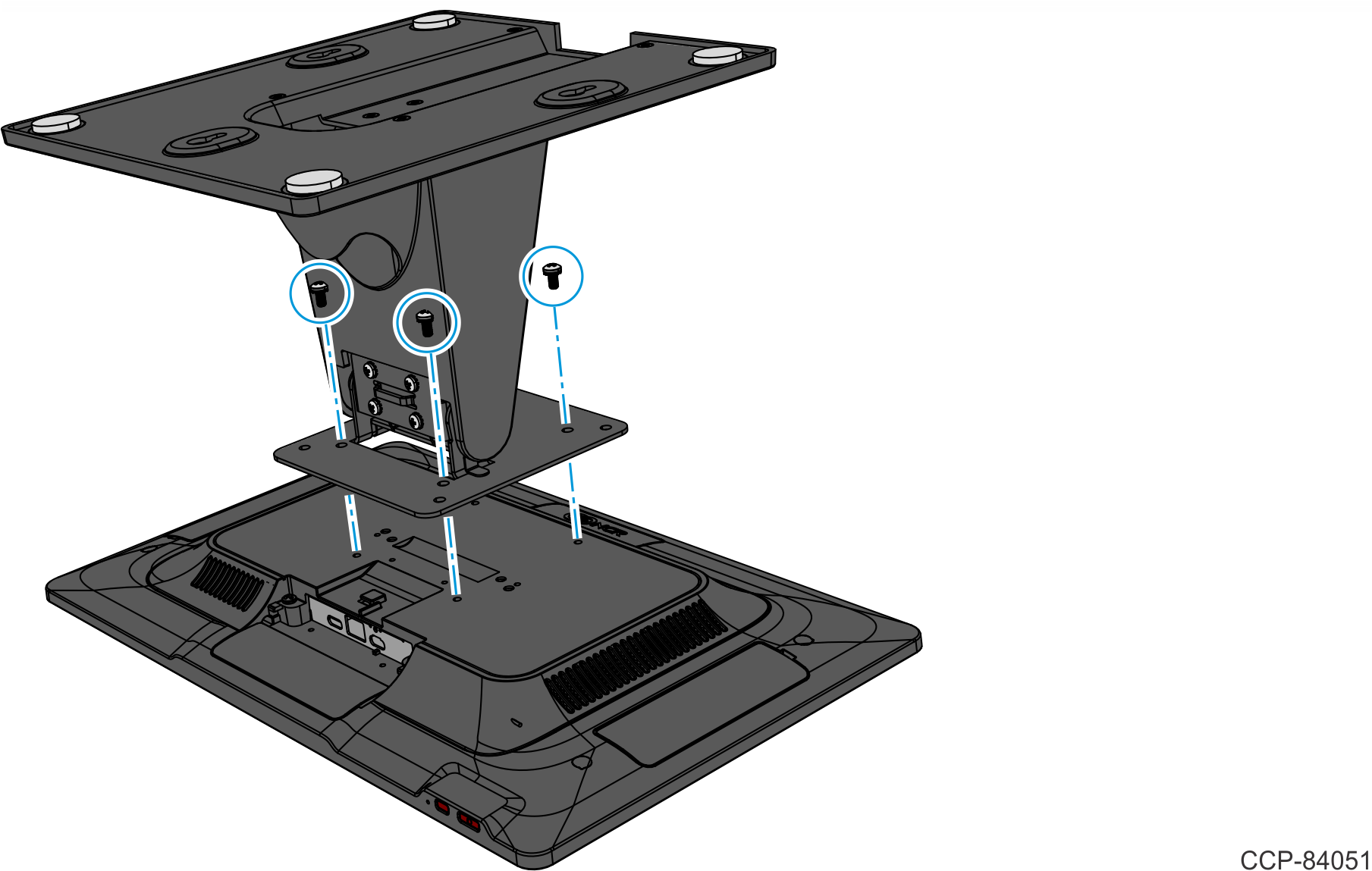

  1. Install the Stand on the back of the Display (4 screws).

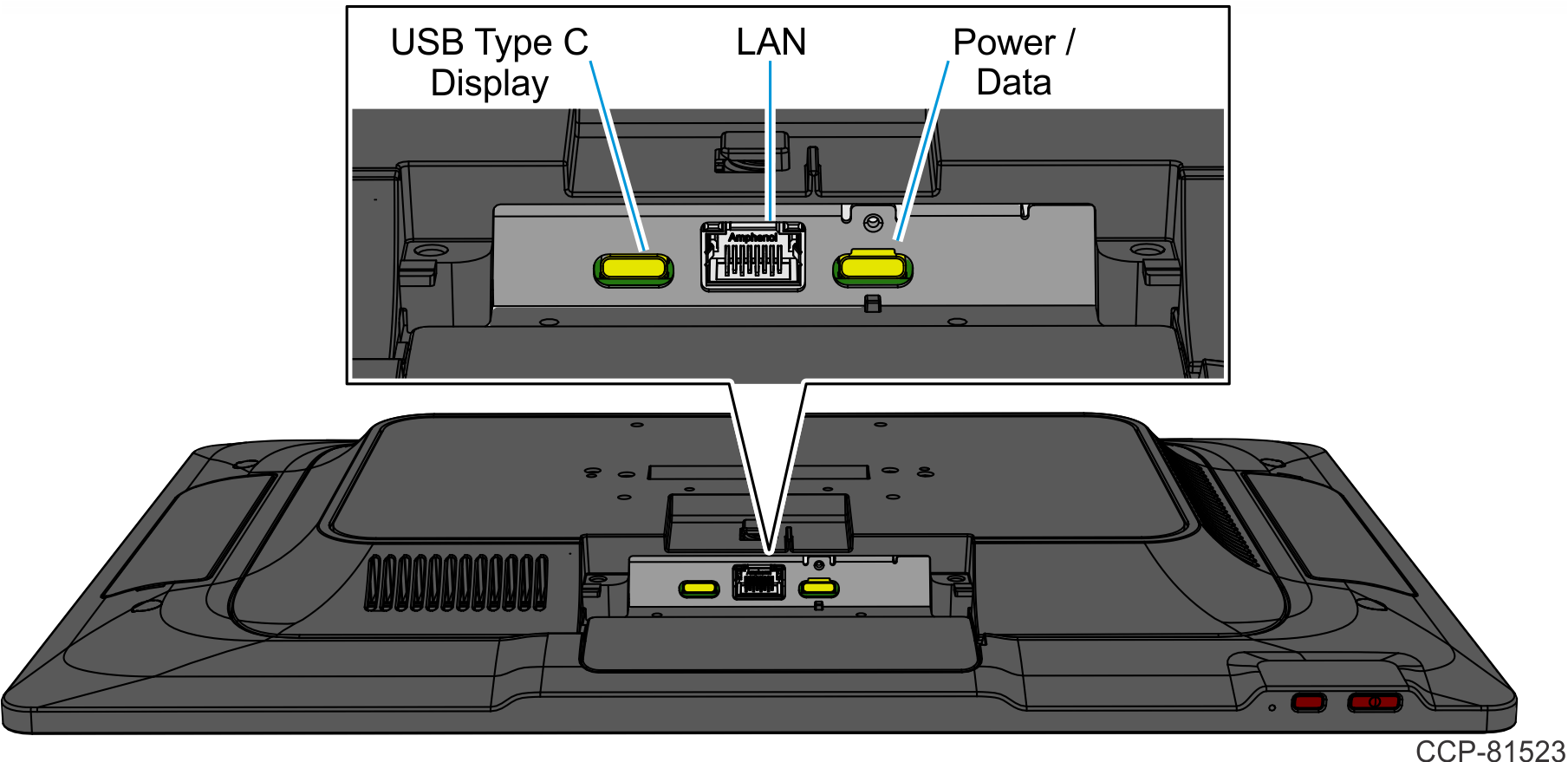

  2. Connect the Cables on the back of the Display.

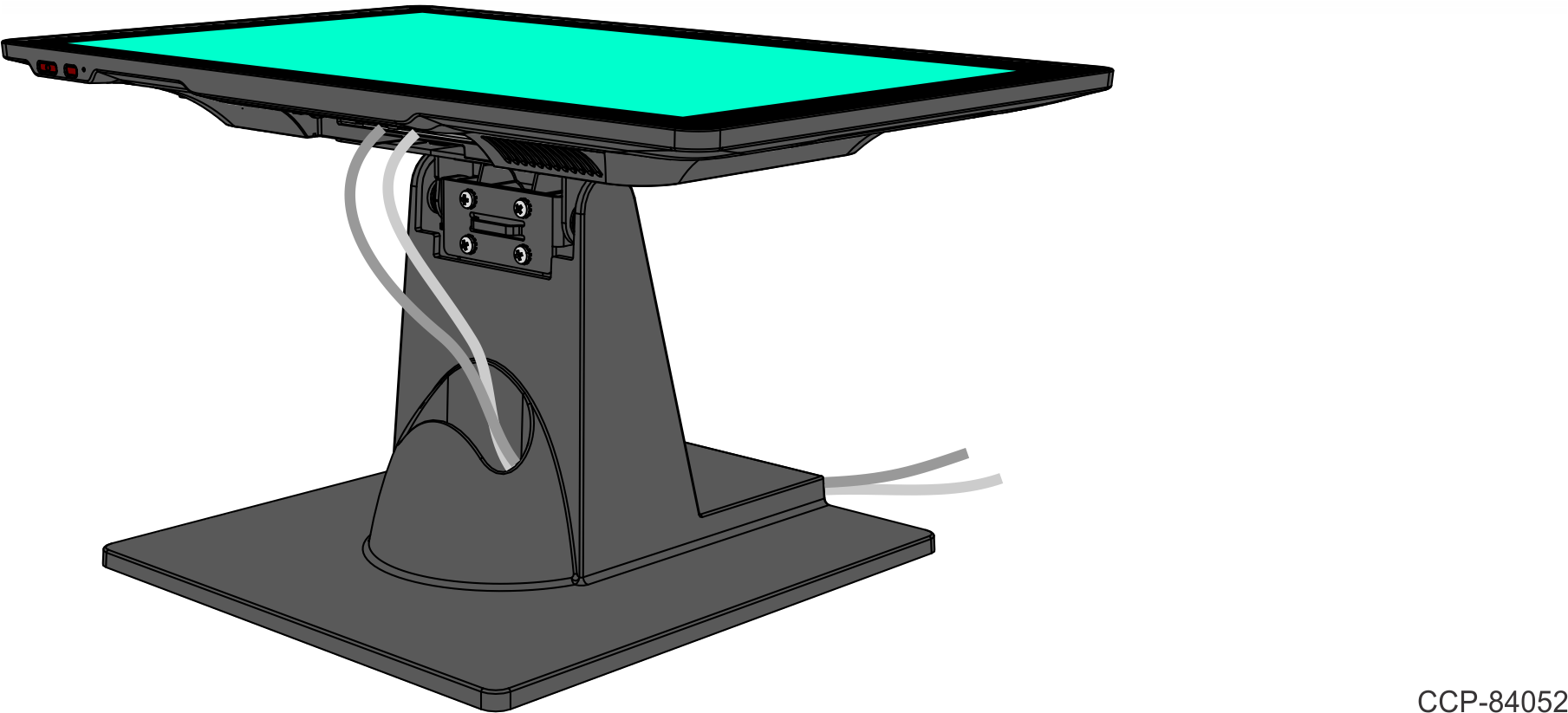

  3. Route the Cables through the Stand as shown.

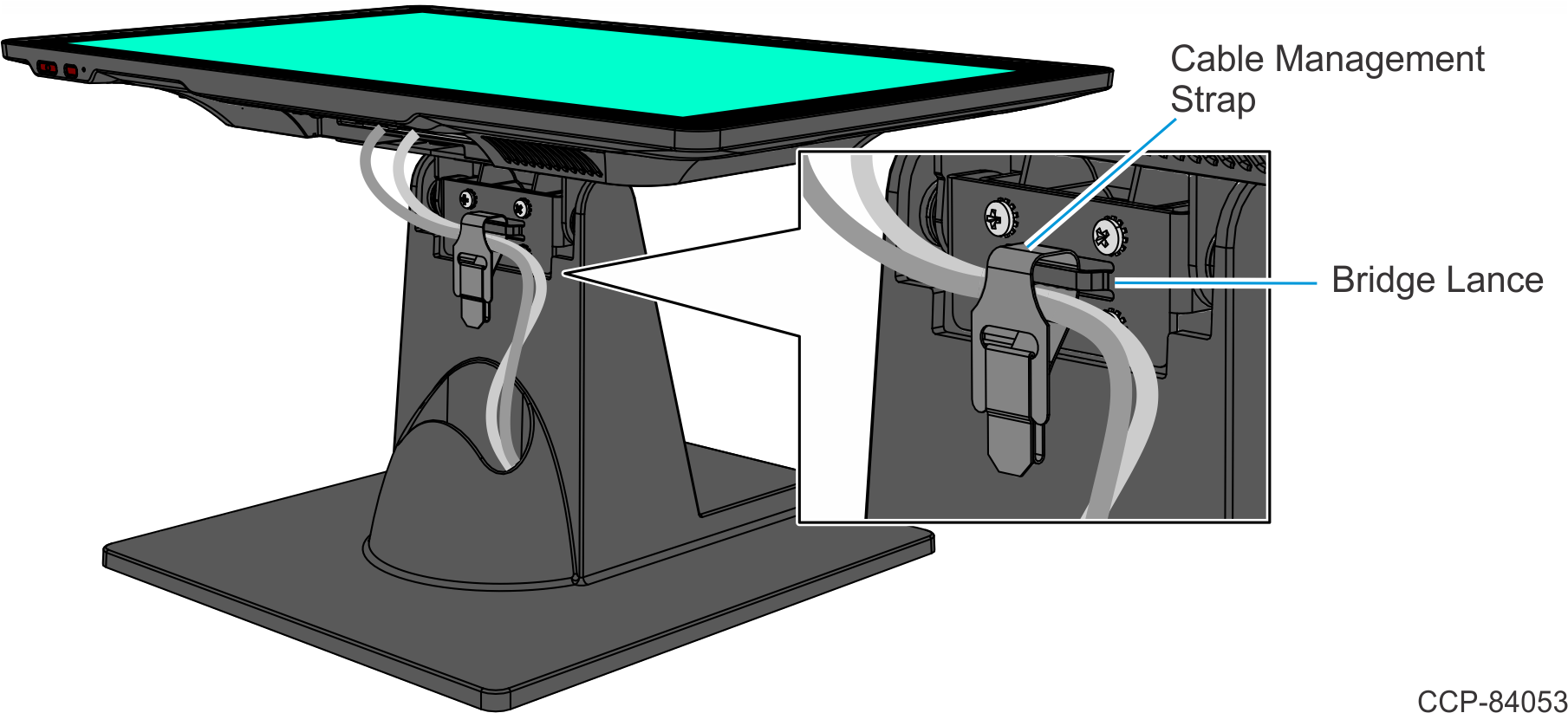

  4. Secure the Cables on the bridge lance using the Cable Management Strap.
