Running the Utility (GUI Version)

1.Unzip the application to a folder of your choice on the target system.

2.In the unzipped folder, navigate to the OSD executable.

Example:  (32-Bit version)

NCR_Software_OSD_GUI_x86_V2.1.6.3>> x86

3.Execute the NCR_Software_OSD_GUI_x86.exe file to start the application.

4.Answer Yes at the Security warning.

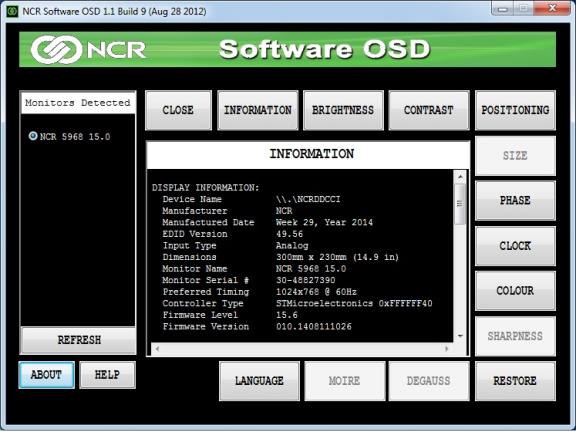

Main Menu

Monitors Detected Panel

This panel lists all the monitors connected to the system. If more than one monitor is connected, the first monitor is selected by default.

Center Panel

The Center Panel displays information pertaining the selected control.

Control Buttons

The Control Buttons show the available features that can be modified. Unavailable features are grayed out.

Refresh Button

Refreshes data in the Monitors Detected panel (OSD does not auto detect). Use this button after connecting a new monitor to refresh the data.

About Button

Displays a brief description of the utility.

Help Button

Opens the Help File.

Close Button

Closes the OSD application.

Information

Provides information about the selected monitor. Information includes:

•Device manufacturer

•Date manufactured

•EDID version

•Input type

•Dimensions

•Monitor name

•Monitor serial number

•Preferred timing

•Controller type

•Firmware level

•Firmware version (for Dynamo display only)

•Display mode (for Dynamo display only)

•Timing Report

•Horizontal frequency

•Vertical frequency

•Timing status

•Raw EDID

•Raw capabilities string (CAPS)

Brightness

Provides tools for adjusting Display brightness settings.

Contrast

Provides tools for adjusting Display contrast settings.

Positioning

Provides tools for gradually moving the image on the Display to a specific region (either left, right, up, or down).

Size

Provides tools for increasing or decreasing the height and width of the image on the Display.

Phase

Provides tools for increasing or decreasing the phase shift of the sampling clock.

Clock

Provides tools for increasing or decreasing the video sampling clock frequency.

Colour

Provides tools for adjusting Display color settings.

Sharpness

Provides tools for increasing or decreasing the sharpness settings of the Display.

Restore

Provides the following functions:

•Auto Setup — sets horizontal position, vertical position, clock, and phase

•Auto Color — sets red/green/blue gain

•Factory Defaults — restores all factory defaults including brightness, contrast, and color

•Brightness/Contrast — restores factory defaults for brightness and contrast

•Geometry Settings — restores factory defaults for geometry settings such as horizontal position and vertical position

•Colour Settings — restores factory defaults for colour settings

Degauss

Provides tools for CRT display to perform a degauss cycle.

Moire

Provides tools for increasing or decreasing the vertical or horizontal moiré picture cancellation.

Language

Provides listing of the supported languages and permits changing the OSD language.
