Enhanced Keypad

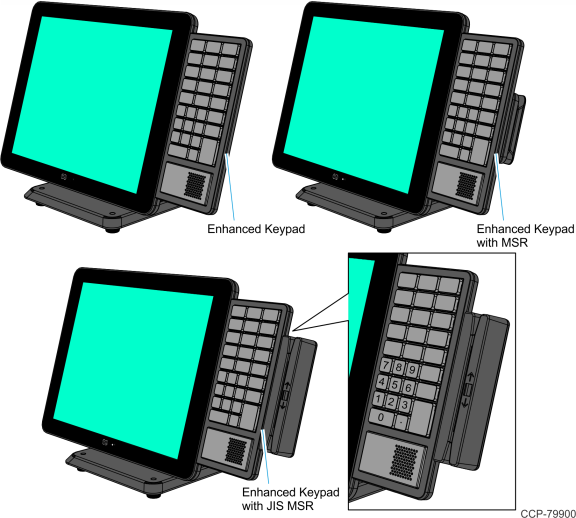

There are six Enhanced Keypad options for the XL15:
•Enhanced Keypad with MSR, Black (5915-F147)
•Enhanced Keypad with JIS MSR, Black (5915-F148)
•Enhanced Keypad with No MSR Filler Plate, Black (5915-F149)
•Enhanced Keypad with MSR, White (5915-F247)
•Enhanced Keypad with JIS MSR, White (5915-F248)
•Enhanced Keypad with No MSR Filler Plate, White (5915-F249)

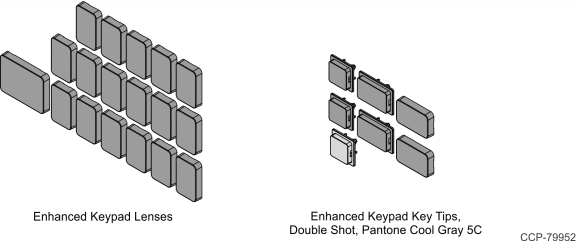

The Enhanced Keypad includes Lenses and Key Tips. These parts are bagged separately (not installed).
|
Part Number |
Description |
Quantity |
|---|---|---|
| 497-0521386 | Enhanced Keypad Lenses | 17 pcs. 1x1.5 1 pc. 2x1.5 |
| 497-0525526 | Enhanced Keypad Key Tips, Double Shot, Pantone Cool Gray 5C | 2 pcs. 1x1.5 Key Tip and Lens 1 pc. 1x1 “000” 1 pc. 1x1 “00” 1 pc. 1x1 “0” |
Keypad Driver
The NCR USB Utilities package for the Enhanced Keypad module is located in the following location:
Refer to the Readme document for the driver installation instructions.
Keypad Remap Utility
The NCR POS Keyboard Remap Utility provides a graphical user interface for keyboard remapping for the following:
•5932 Keyboards
•5953 Dynakeys
•5954 Dynakeys
•X-Series Dynakeys
•Enhanced Keypads
The utility is located in the following location:
https://www5.ncr.com/support/support_drivers_patches.asp?Class=External/NCRKeyboard\Remap\display
Refer to the Readme document for the utility installation procedure.
