Video and Audio Connections

DisplayPort Cable

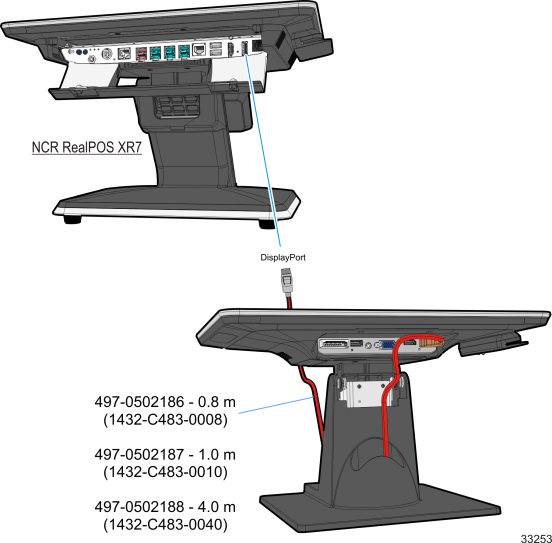

The DisplayPort Cable provides both video and audio to the display.

•Connect the DisplayPort Cable to the DisplayPort connectors on both the display and the host terminal.

HDMI Cable

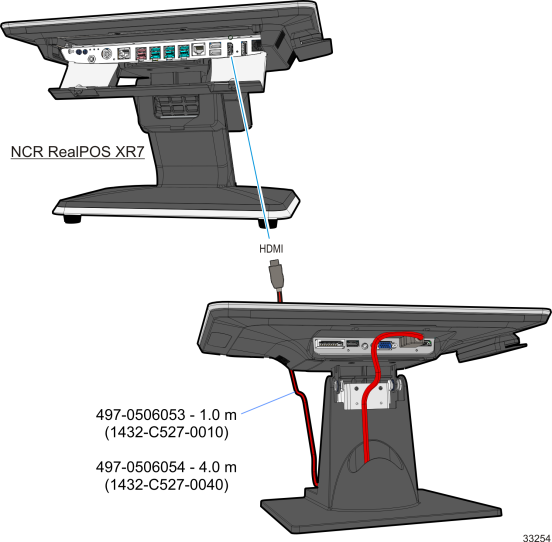

The HDMI Cable provides both video and audio to the display.

•Connect the HDMI Cable to the HDMI connectors on both the display and the host terminal.

DVI to HDMI Cable

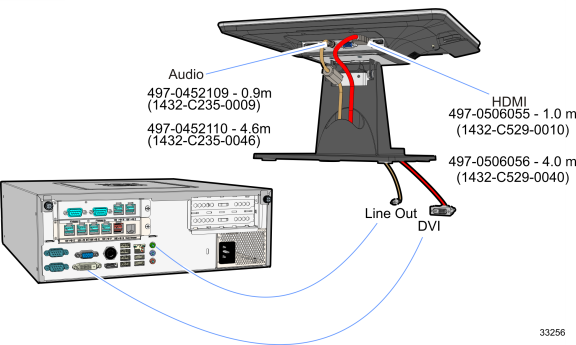

If the host terminal does not have an HDMI port you can use the DVI to HDMI Cable for video to the display. A separate Audio Cable is required for audio.

1.Connect the DVI end of the cable to the DVI connector on the host terminal.

2.Connect the HDMI end of the cable to the HDMI connector on the display.

3.Optional: Connect an Audio Cable to the Audio connectors on both the display and host terminal.

VGA Cable

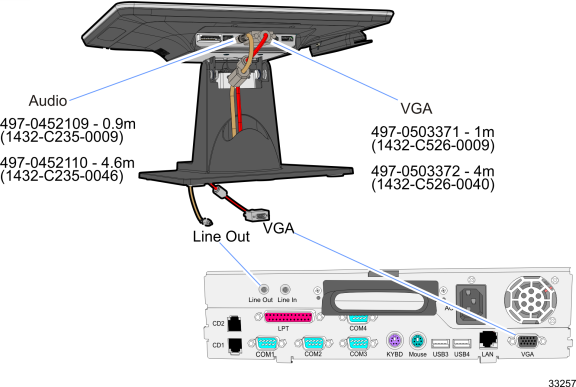

For host terminals that only have VGA for video, a VGA Cable can be used to provide video to the display. A separate Audio Cable is required for audio.

1.Connect the VGA Cable to the VGA connectors on both the display and host terminal.

2.Optional: Connect an Audio Cable to the Audio connectors on both the display and host terminal.

Note:  The display has an internal audio amplifier. In order to obtain high quality speaker output the connection from the host terminal should be driven with a Line level signal and NOT by an Amplified or Speaker level signal. If an Amplified or Speaker level signal is the only connection option, the volume on the terminal should be reduced to eliminate audio distortion.
