Launching the Matrix Maker Utility

To launch the Matrix Maker Utility, follow these steps:

Do any of the following:
- From the Start menu, select NCR Voyix Matrix Maker.
- From the desktop, select the NCR Voyix Matrix Maker shortcut icon.
The Keyboard Models window is displayed.

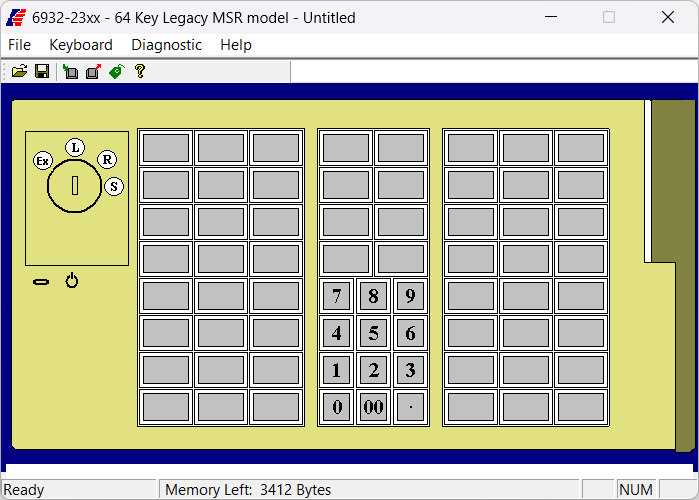

Select the keyboard to be programmed, and then select OK. A virtual keyboard is displayed.
Note
To know the assigned codes to a key, hover over the key. The Code Legend panel displays the codes.

The following options are available in the Matrix Maker Utility.

Field		Description
File
	New	Category—displays the Keyboard Category window. Key Map—refreshes the Matrix Maker utility and creates a new keymap.
	Open	Imports a Matrix Maker settings file (.dat). Note An error may occur if the version of the selected file is higher than the version supported by the currently installed Matrix Maker Utility.
	Save	Saves all changes to the current keymap file.
	Save As	Saves the current keymap file with a new name.
	Exit	Closes the Matrix Maker utility.
Keyboard		Provides options for keyboard configuration.
	Update Whole Keyboard	Sends the settings of the entire keyboard, which includes the settings of the MSR, Keyboard, and Key Mapping.
	Update Key Mappings	Sends the Key Map settings to the keyboard.
	Retrieve Keyboard	Retrieves the data currently programmed to the keyboard device, which includes the settings of the MSR, Keyboard, and Key Mapping. Caution During the updating process, strictly follow these measures: Do not press any keys on the keyboard. Do not click the mouse. Do not touch the Touch panel.
	Write all to Flash	Saves all configurations and key mapping to flash memory.
	RS232 Control	Modifies the RS232 control settings of the keyboard. This option is available in 64–Key keyboard models only. For more information, refer to RS232 Control window.
	Keyboard Configuration	Modifies the configuration of the keyboard. For more information, refer to Keyboard Configuration window.
	Sentinel Table	Modifies MSR, RS232, and keylock sentinels. For more information, refer to Sentinel Table window.
Diagnostic
	Enter Test Mode	Displays the position of the key when the key is pressed. Note If the keyboard provides the Keylock feature and the Repeat Enable option is activated, the application continuously outputs the Keylock position to the terminal. To stop this continuous output, press any other key.
	Exit Test Mode	Exits the test mode.
	Load Factory Setting	Reloads the default factory setting to the keyboard. Note After reloading the factory settings, reconnect the keyboard and close the application.
	Reset	Resets the keyboard. Note This feature is applicable only when testing the keyboard.
	Firmware Version	Displays the current version of the firmware.
	Get Status	Displays the Keylock and drawer status of the device.
