Scanner is Not Connected

If the NCR 7895 scanner is not connected to the computer or POS terminal through a USB communication cable, the user must manually select the scanner model and firmware plug‑in.

To create a configuration file without a scanner connected, follow these steps:

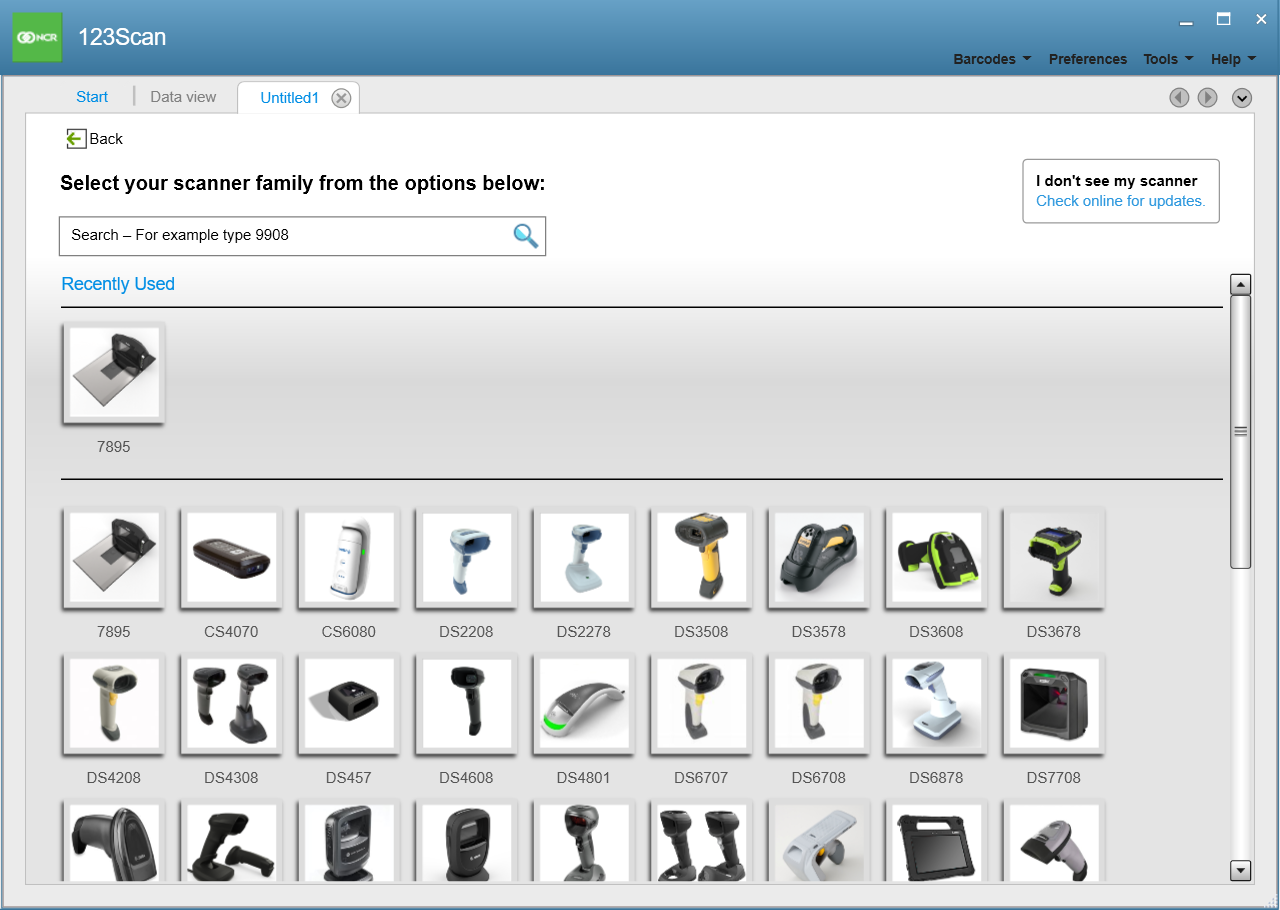

1. From the scanner connection option, select My scanner is not connected. The application displays the available scanner family options.

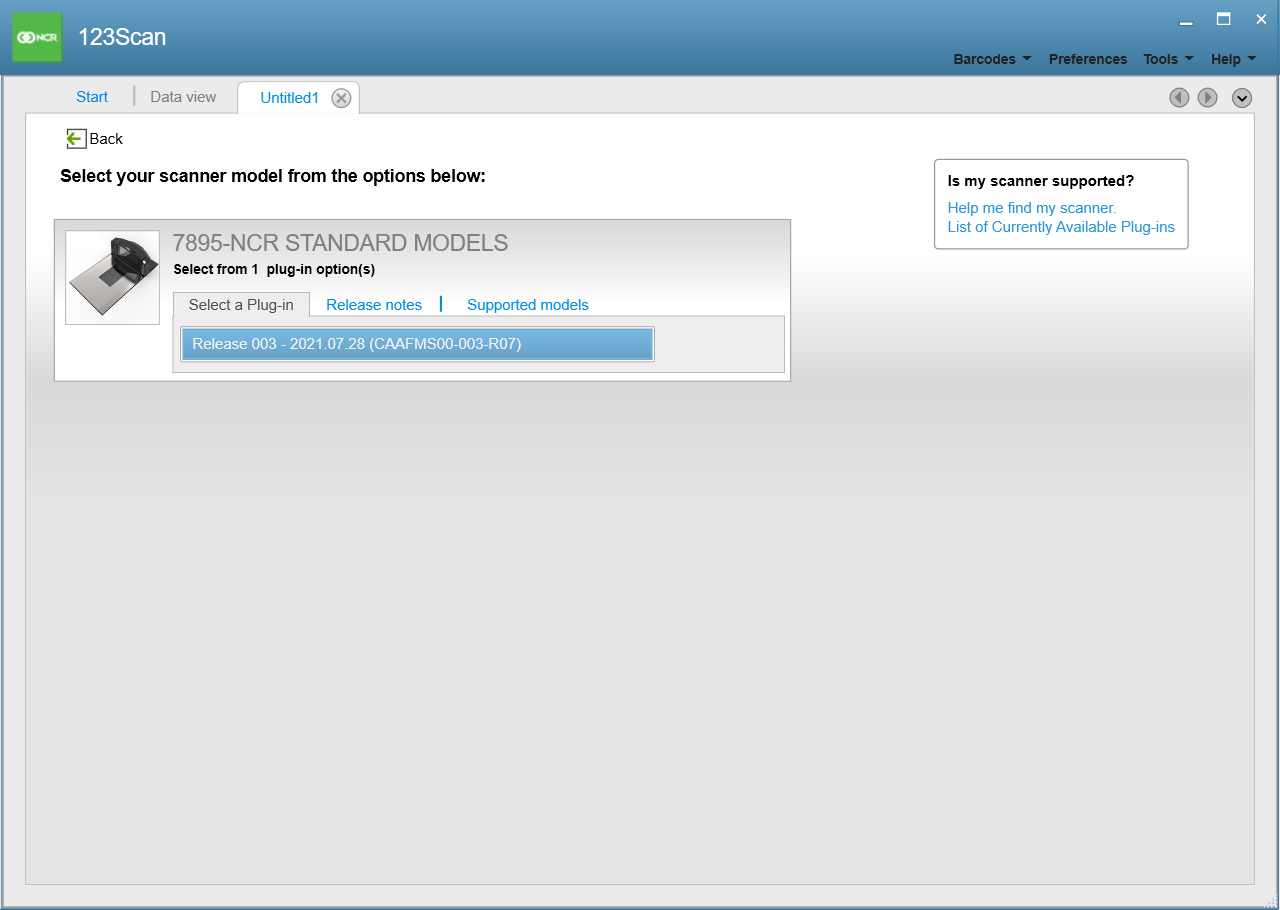

2. From the scanner family options, select 7895. The application displays the available scanner models under 7895.



3. Select the latest firmware plug‑in. The application starts the Configuration Wizard.
