Based on Default Settings

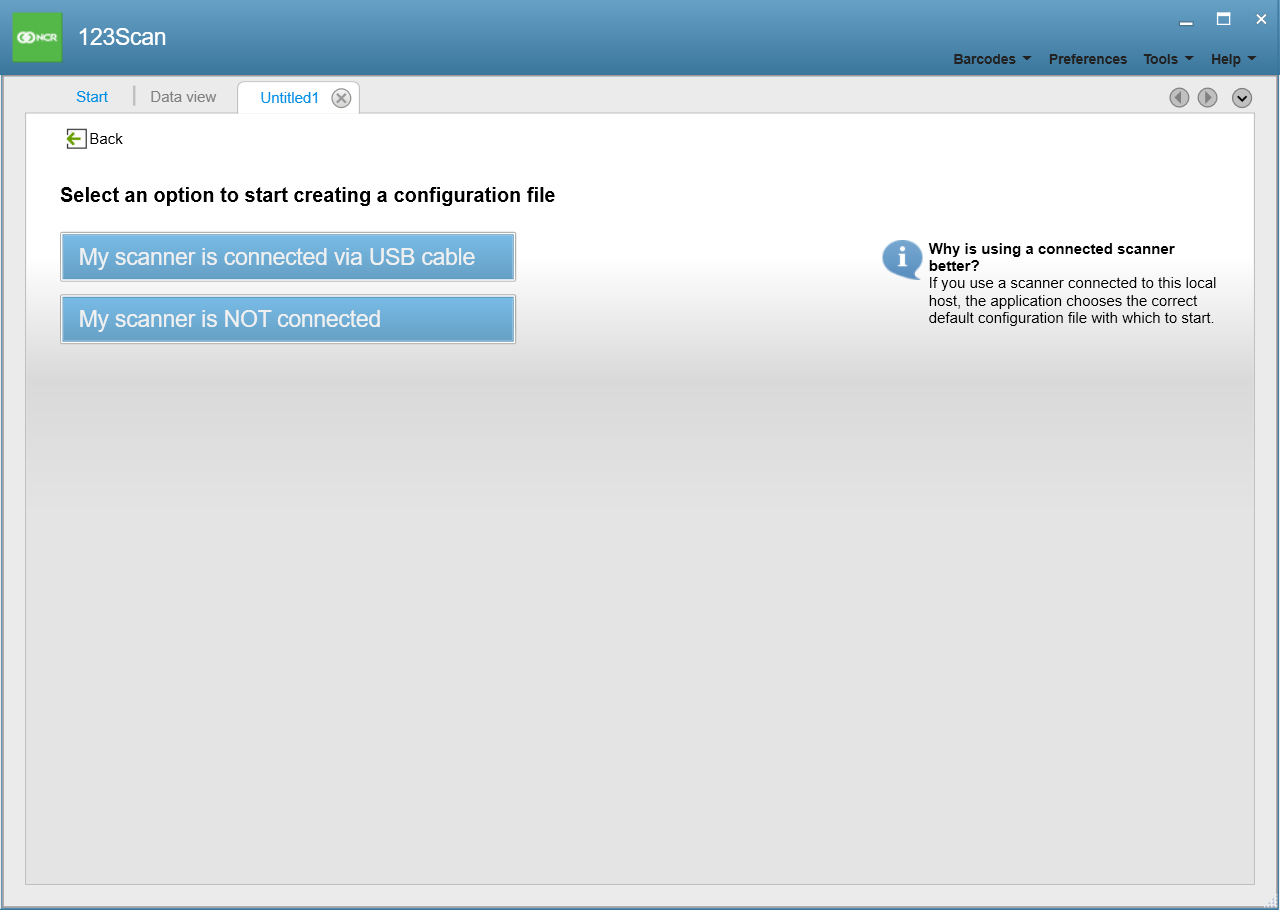

1. From the Start tab of the 123Scan main window, select Create new configuration file. The application opens a new untitled tab and displays options in creating a configuration file.

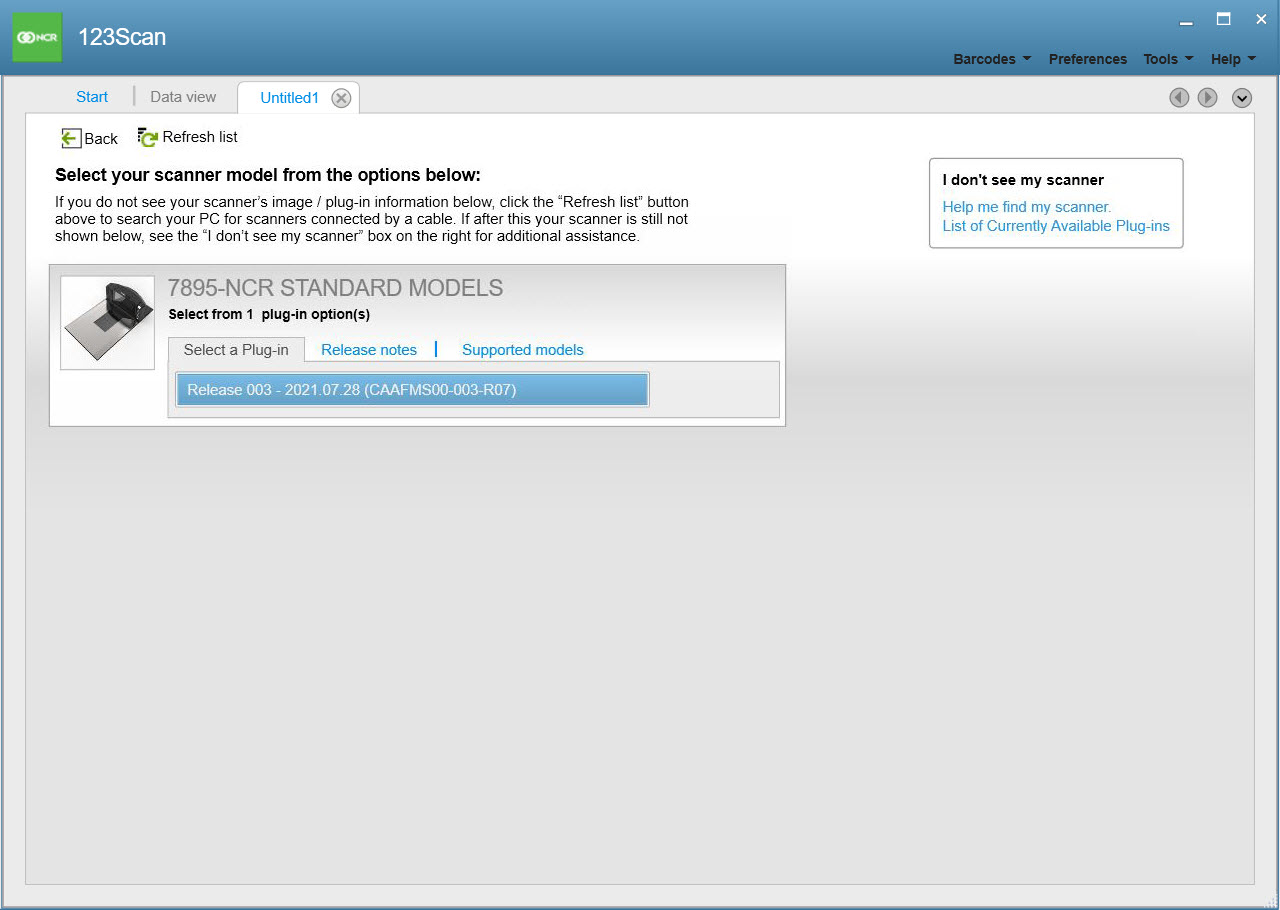

2. Select My scanner is connected via USB cable. The application displays the list of detected scanners and their firmware plug-in options.



3. Select the latest firmware plug‑in. The application starts the Configuration Wizard.

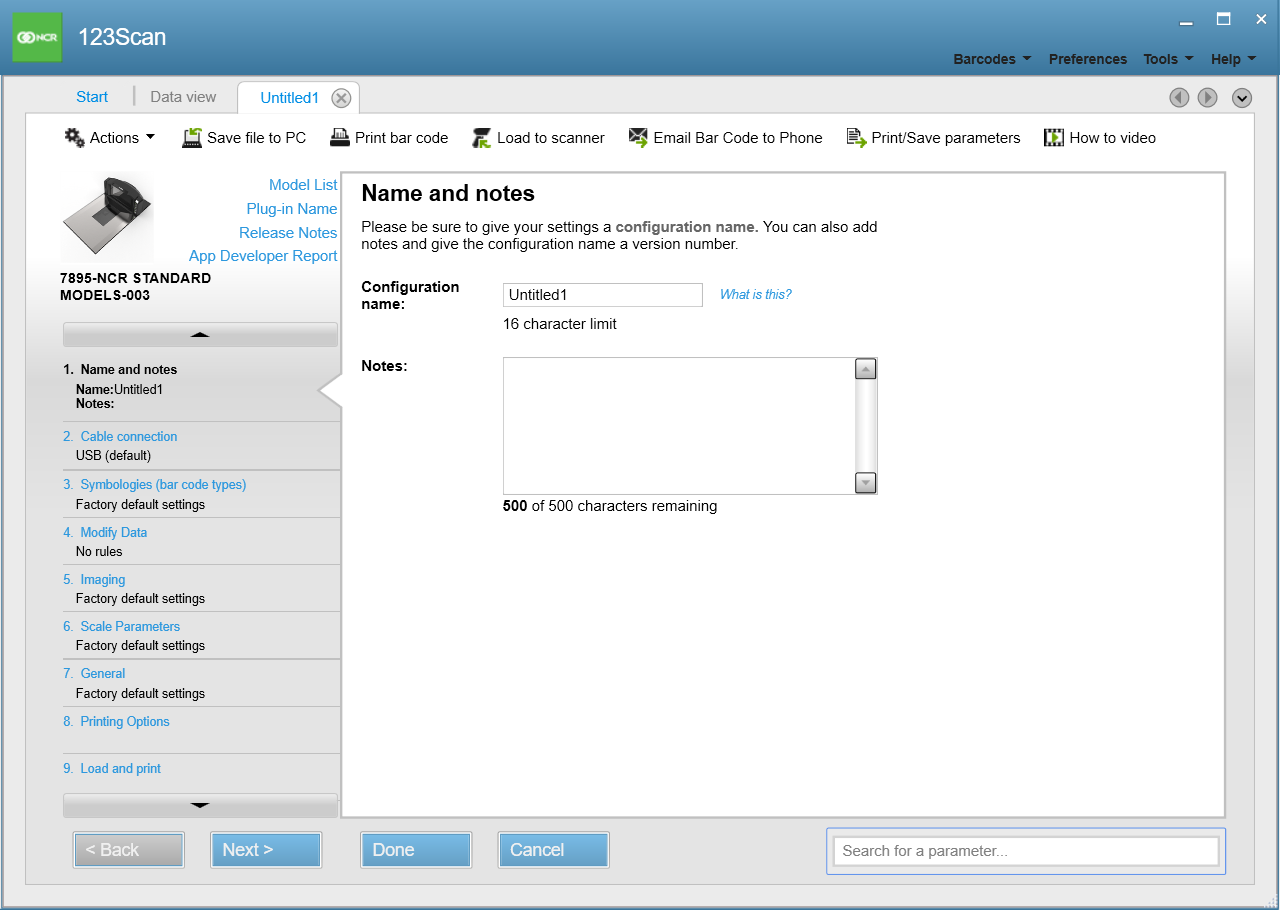

4. Set the configuration name.
   Note

   The configuration name must start with "NCR7895" and end with "CFG". For example, set the configuration name to "NCR7895_DEF_CFG". The maximum limit is 16 characters.

5. Add notes to briefly describe the configuration file (optional).
