Installing the Top Plate for Full-size Scanner/Scale Models

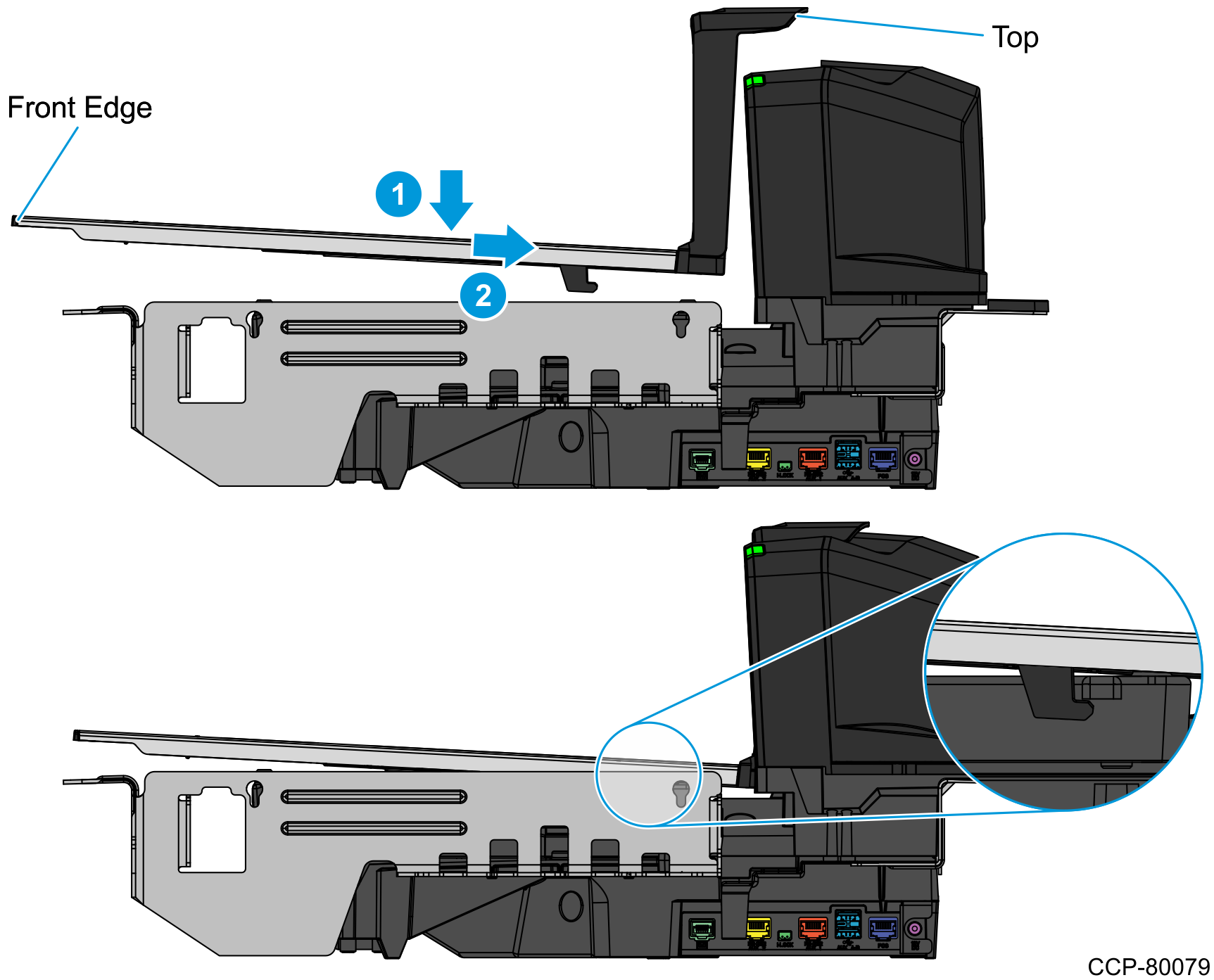

1. Holding the front edge and the top of the Top Plate, and with the Top Plate slightly tilted, position the Top Plate on top of the scanner base.
2. Slide the Top Plate onto the scanner base until the hooks on the bottom of the Top Plate are positioned under the tabs on the scale.

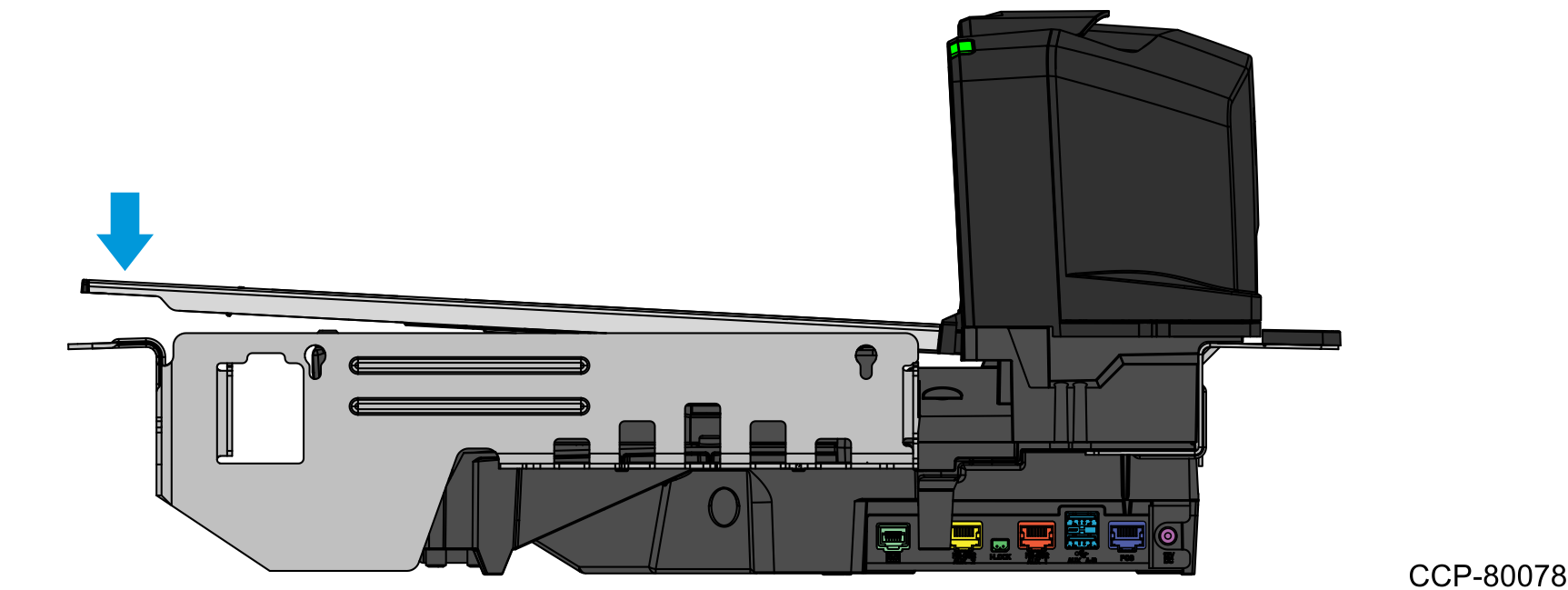

3. Lower the front edge of the Top Plate until the Top Plate sits securely on the scanner base.
