Removing the Top Plate for Full-size Scanner/Scale Models

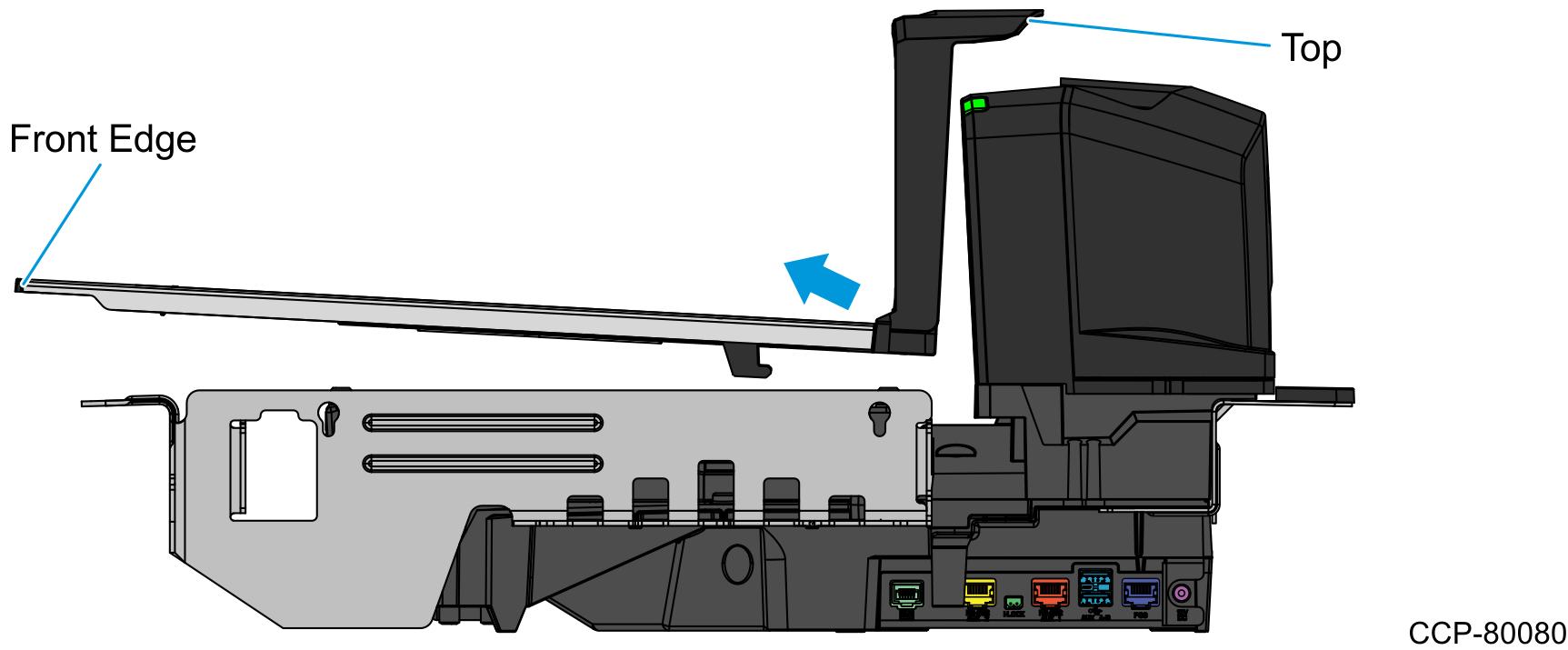

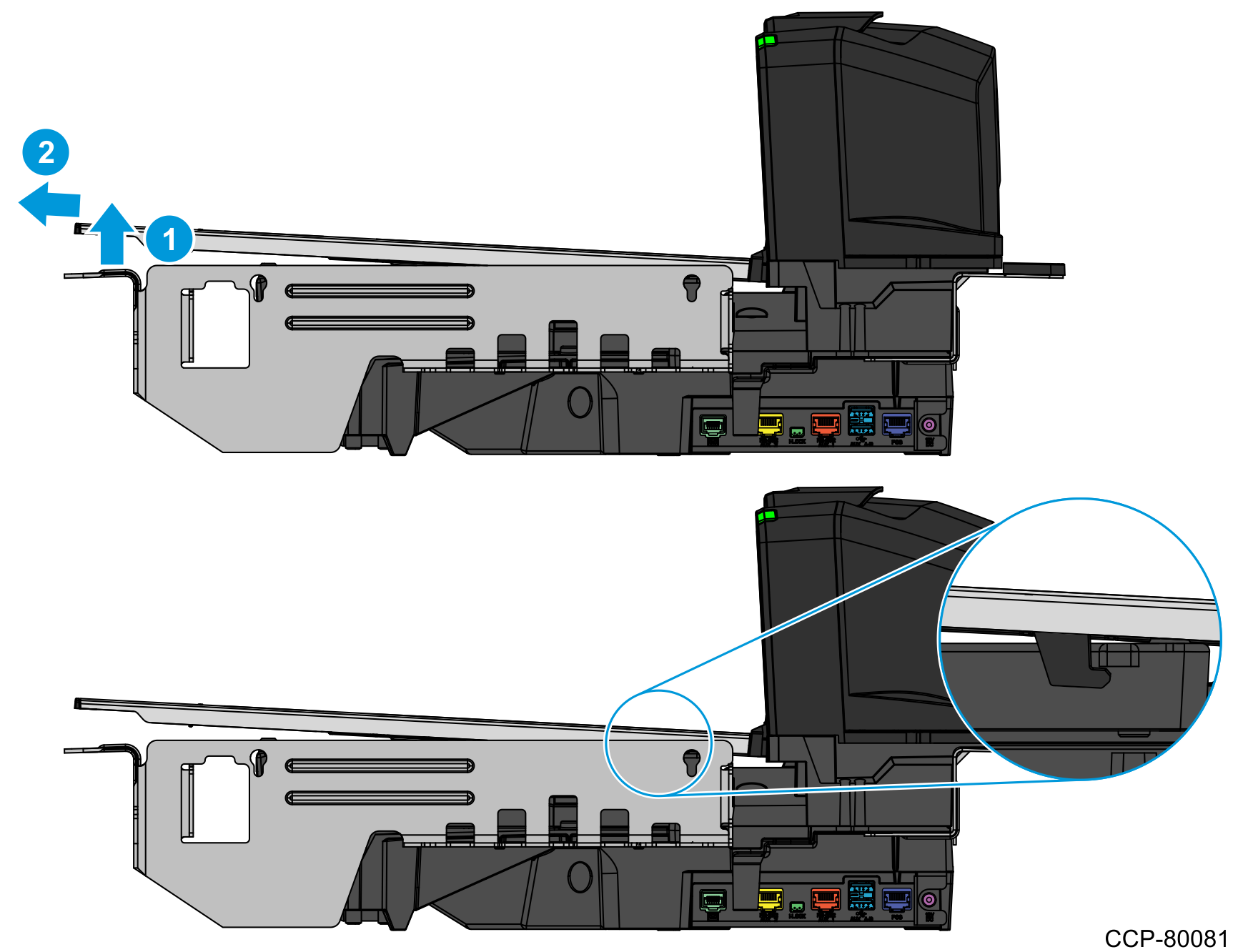

1. Slightly lift up the front edge of the Top Plate and slide the Top Plate forward until its hooks are released from the positioning tabs on the scale.



2. Holding the front edge and the top of the Top Plate, pull the Top Plate out and lift it off the scanner.
