Removing the Tower Cover

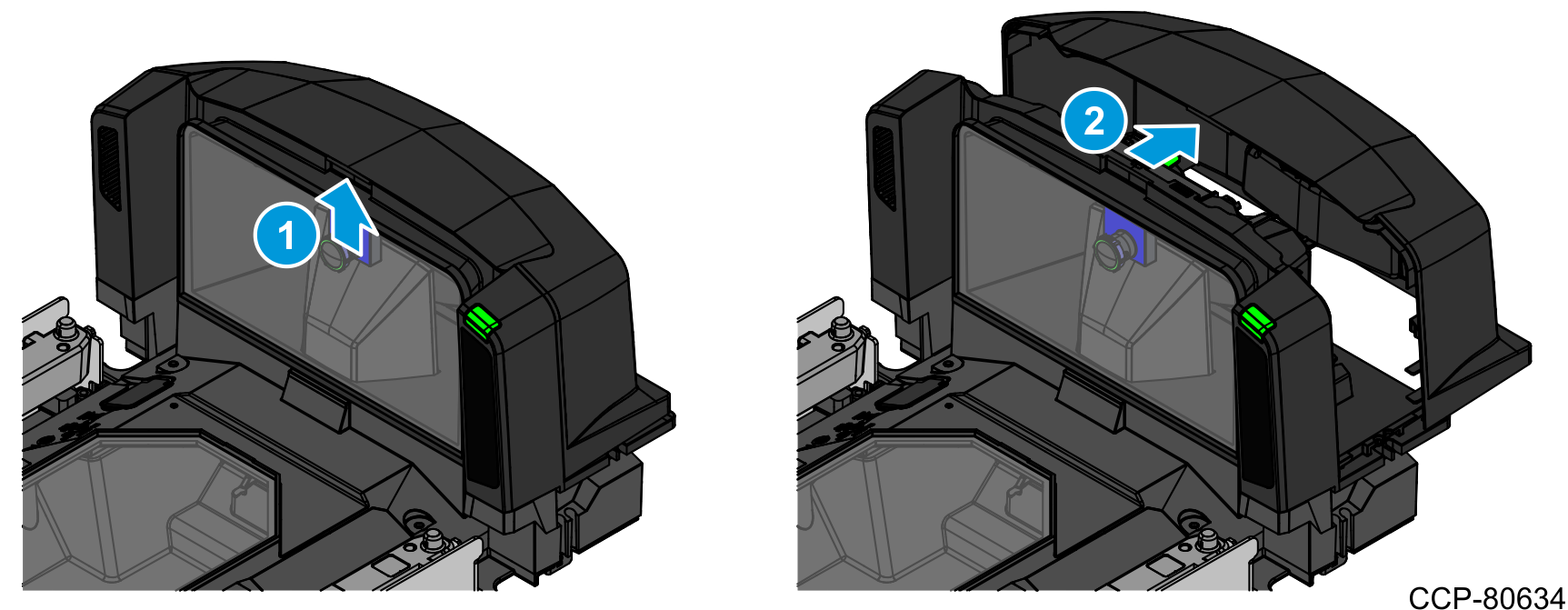

Note:  The image in this section shows the Tower Cover for units with color camera. However, procedures for both monochrome and color tower covers are the same.

1. Remove the Top Plate. For more information, refer to Accessing Scanner Components.

2.Using your thumb, lift the center of the Tower Cover to disengage and remove it from the tower housing.
