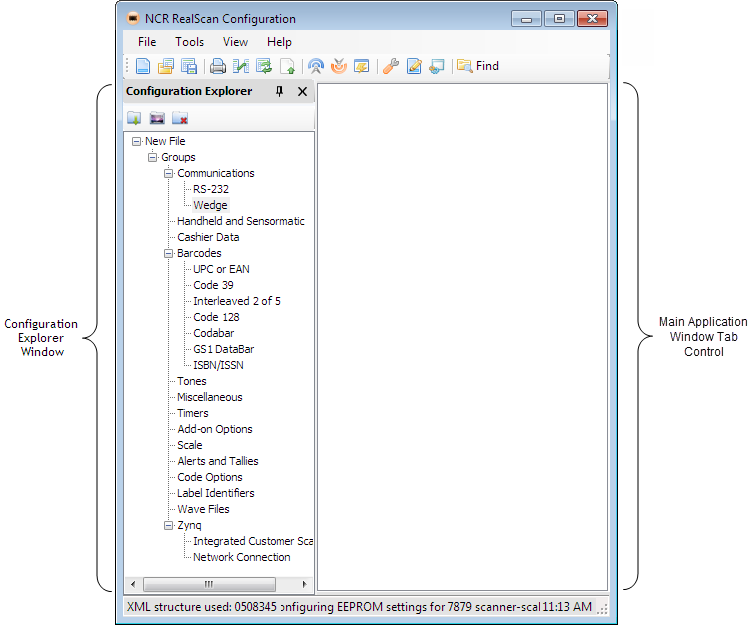

Configuration Explorer window

This window is created each time a new or existing EEPROM configuration is loaded into the application. It contains a tree view that organizes the settings into groups. It shows the supported groups/tab names parsed from the binary file.

The following table provides the options available through the Configuration Explorer window.

OptionDescription
Inserting or loading a tab page to Main Application Window Tab Control

The following are three ways to insert or load a tab page:

  • Select a node from the configuration tree view and select the View tab.
  • Double-click a selected node.
  • Select the Show All tabs.
Selected NodeLoad the selected node to the main application’s tab control either by selecting View Tab or by double-clicking the selected node.
Main Application’s Tab ControlDisplays the tab page of the selected node.

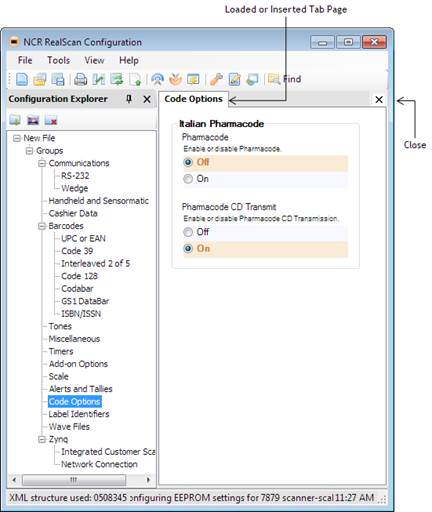

The following image shows an example when selecting a node.

The following image is an example when selecting Show All Tabs.
