Custom Bag Tag Printer

1.Open the Pedestal. See Opening the Pedestal.

2.Remove the paper from the Printer Mechanism by pulling the paper out or by rotating the paper roll until the paper is out.

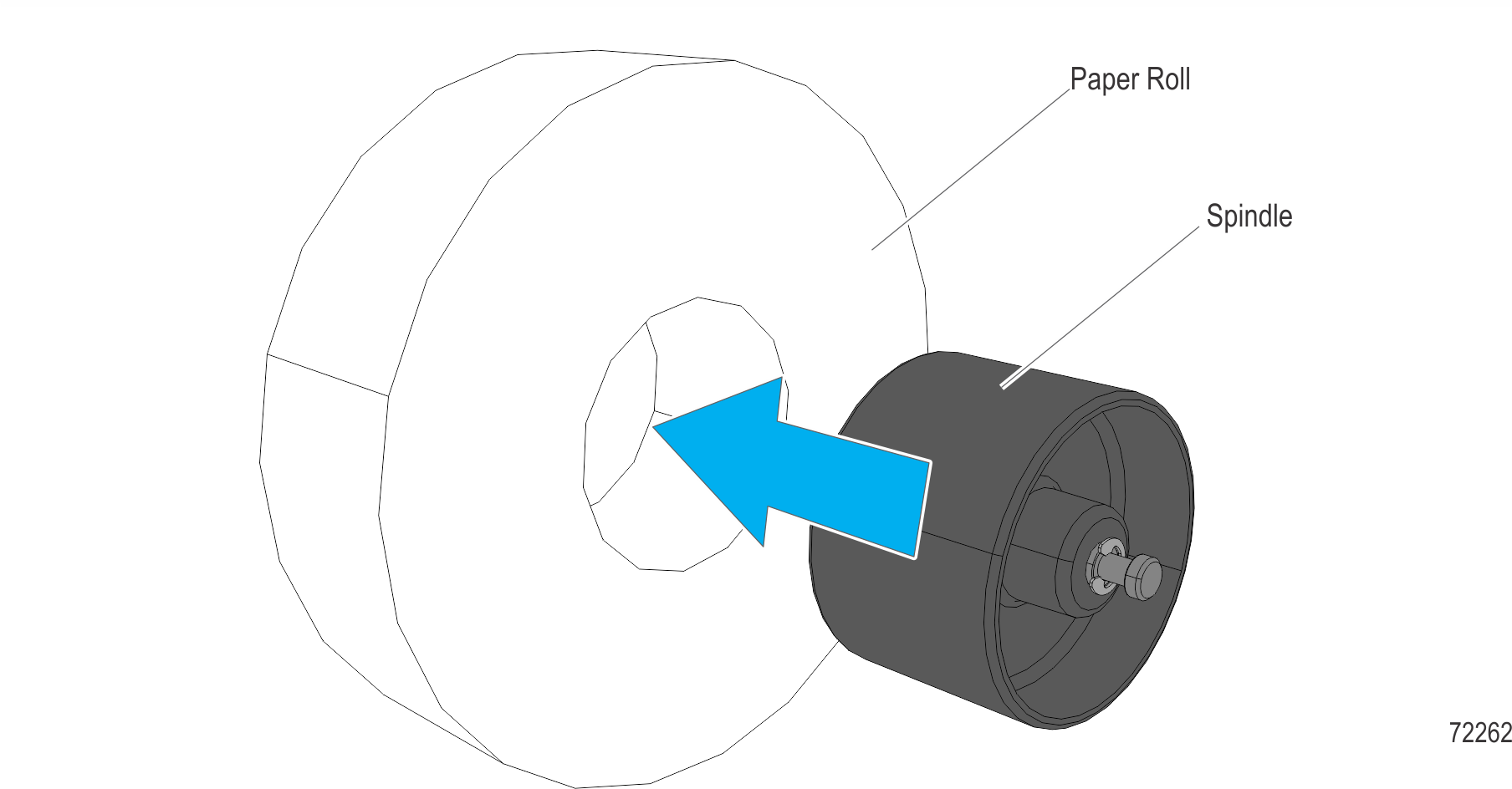

3.Remove the paper roll spindle from the printer cradle, and then remove the used paper roll from the spindle.

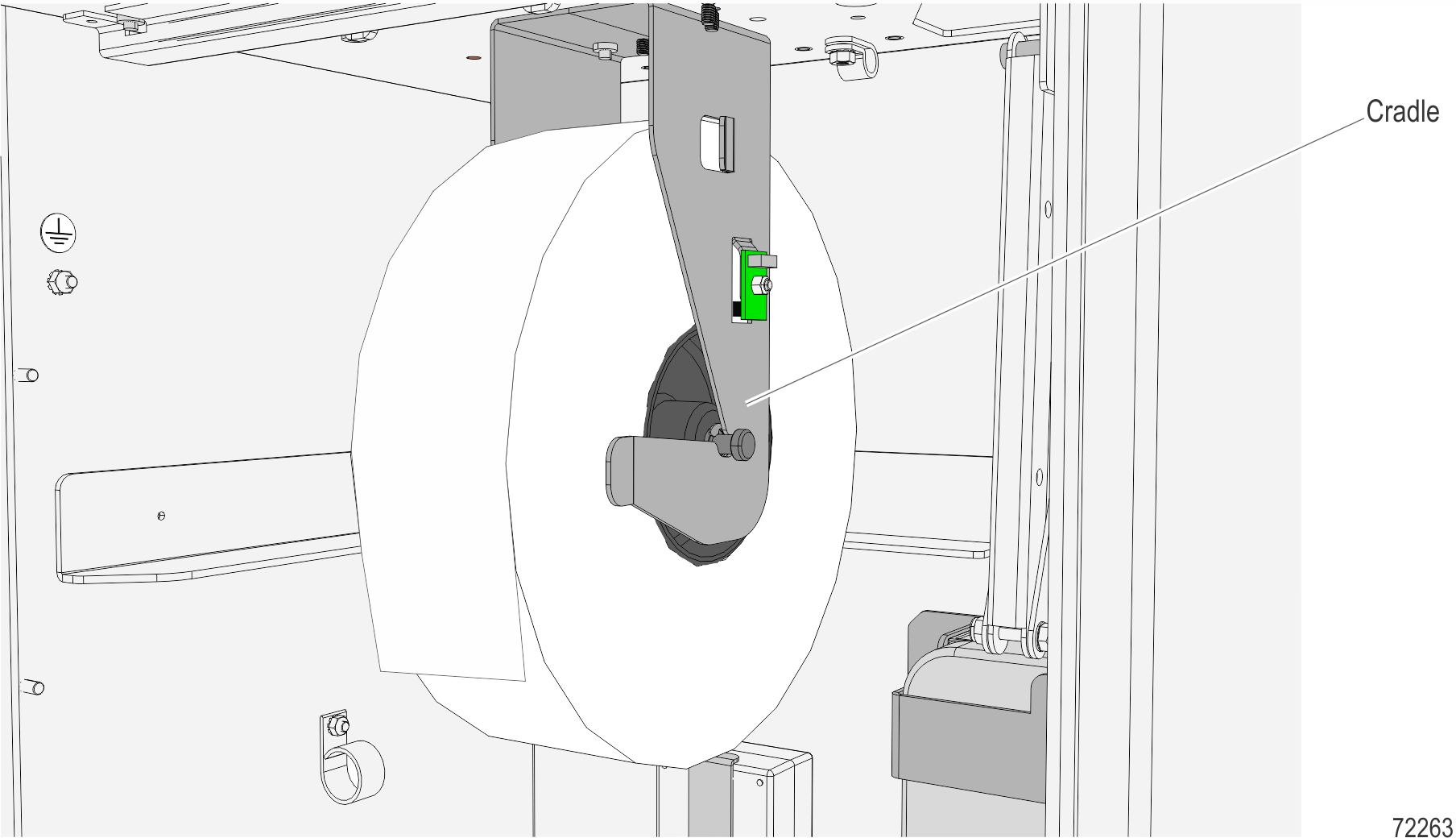

4.Insert the paper roll spindle into the core of the new paper roll.

5.Place the paper roll spindle onto the printer cradle located below the device. Be sure that the paper is correctly positioned into the paper guides.

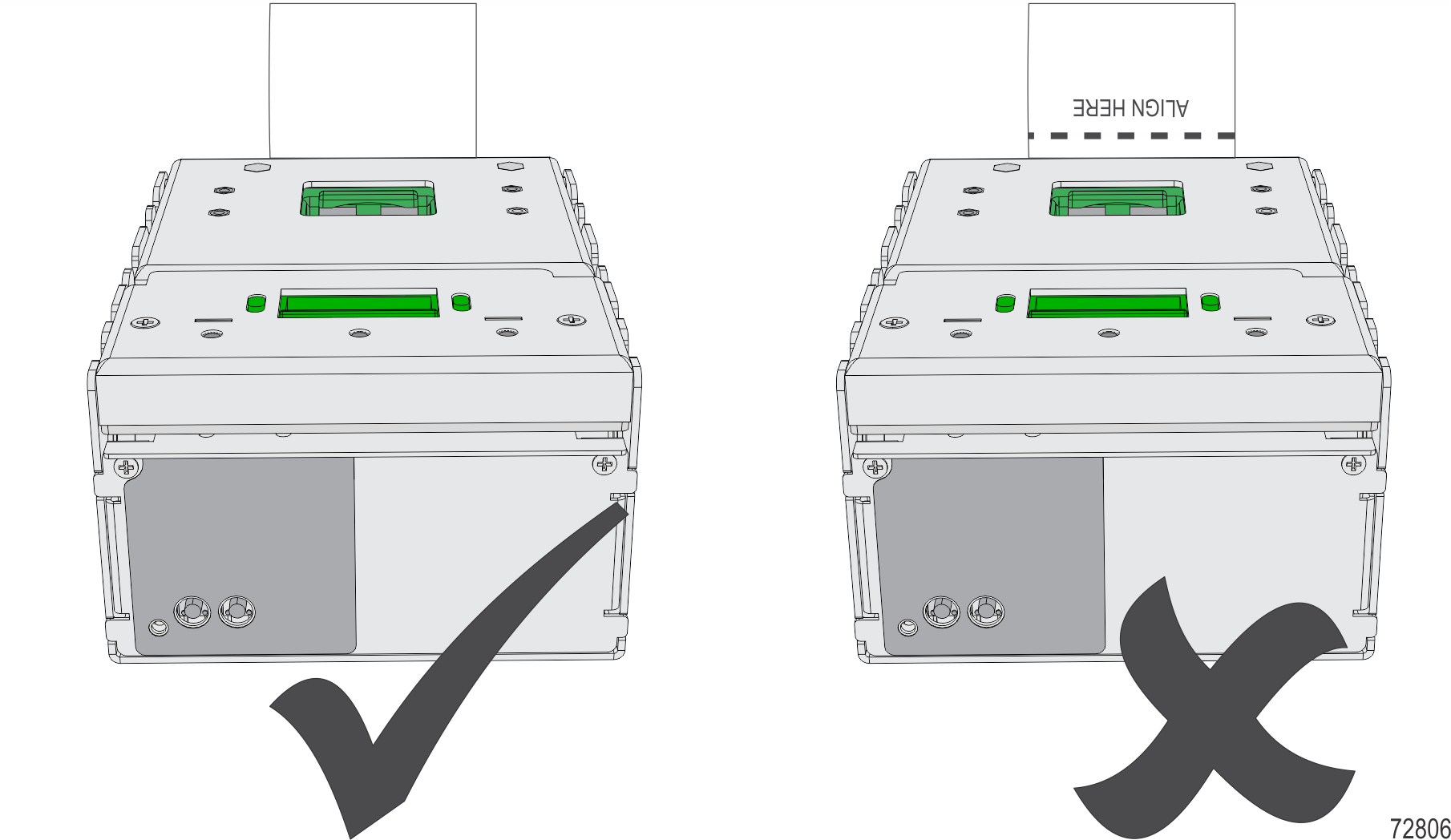

6.Route the paper edge to the back of the device. Evenly feed the leading edge of the paper into the paper entry at the rear of the printer.

Note:  It is important that the leading edge of the paper is a clean cut and free from rips, tears, or adhesive. Jamming can occur if this is not followed.

Note:  Make sure that the blank side of the paper is facing upward.

7.Wait until the paper is automatically loaded.
