No Base Plate

The kiosk is shipped out with a temporary Base Plate that can be removed before bolting the kiosk to the floor.

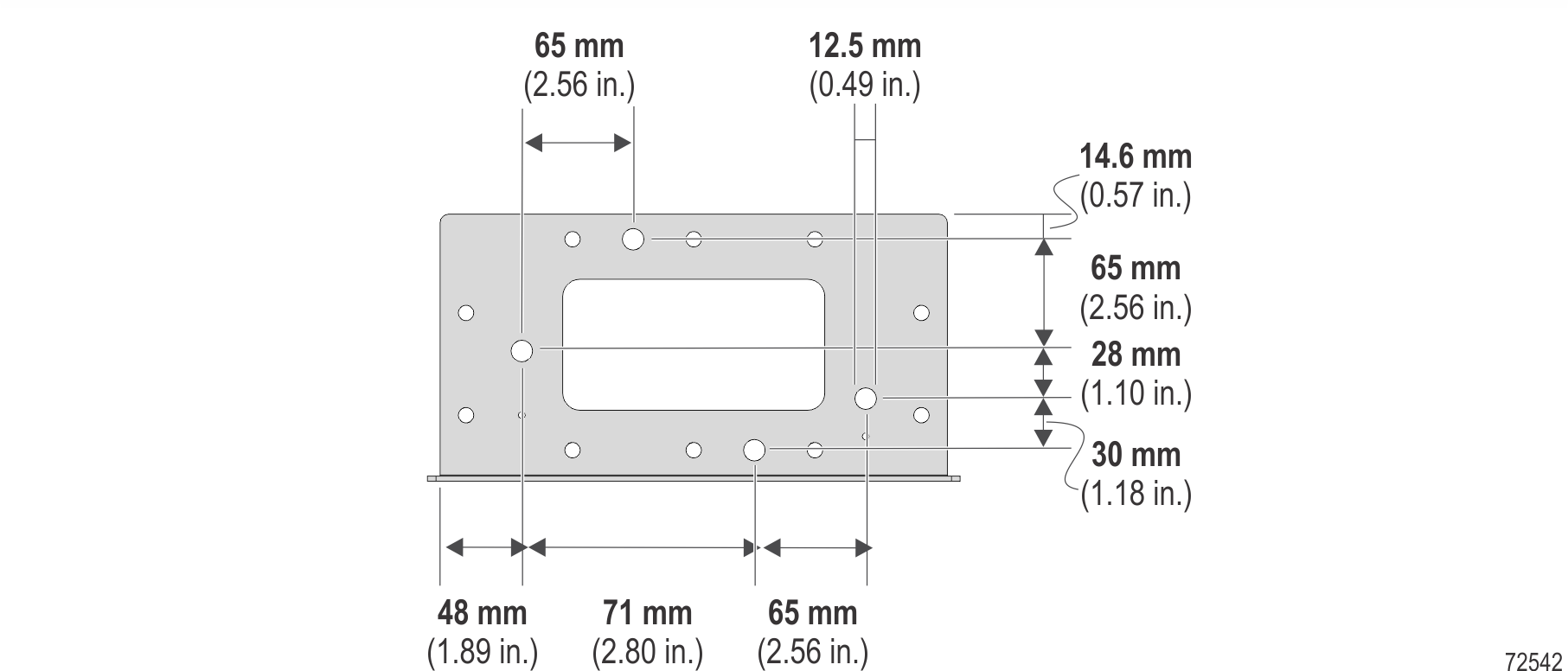

1.Mark the location of the anchor holes of the kiosk on the floor or use the dimensions below.

2.Remove the UPS.

a.Route the power cord into the kiosk through the cable entry hole.

b.Unplug the power cords or cables connected to the UPS.

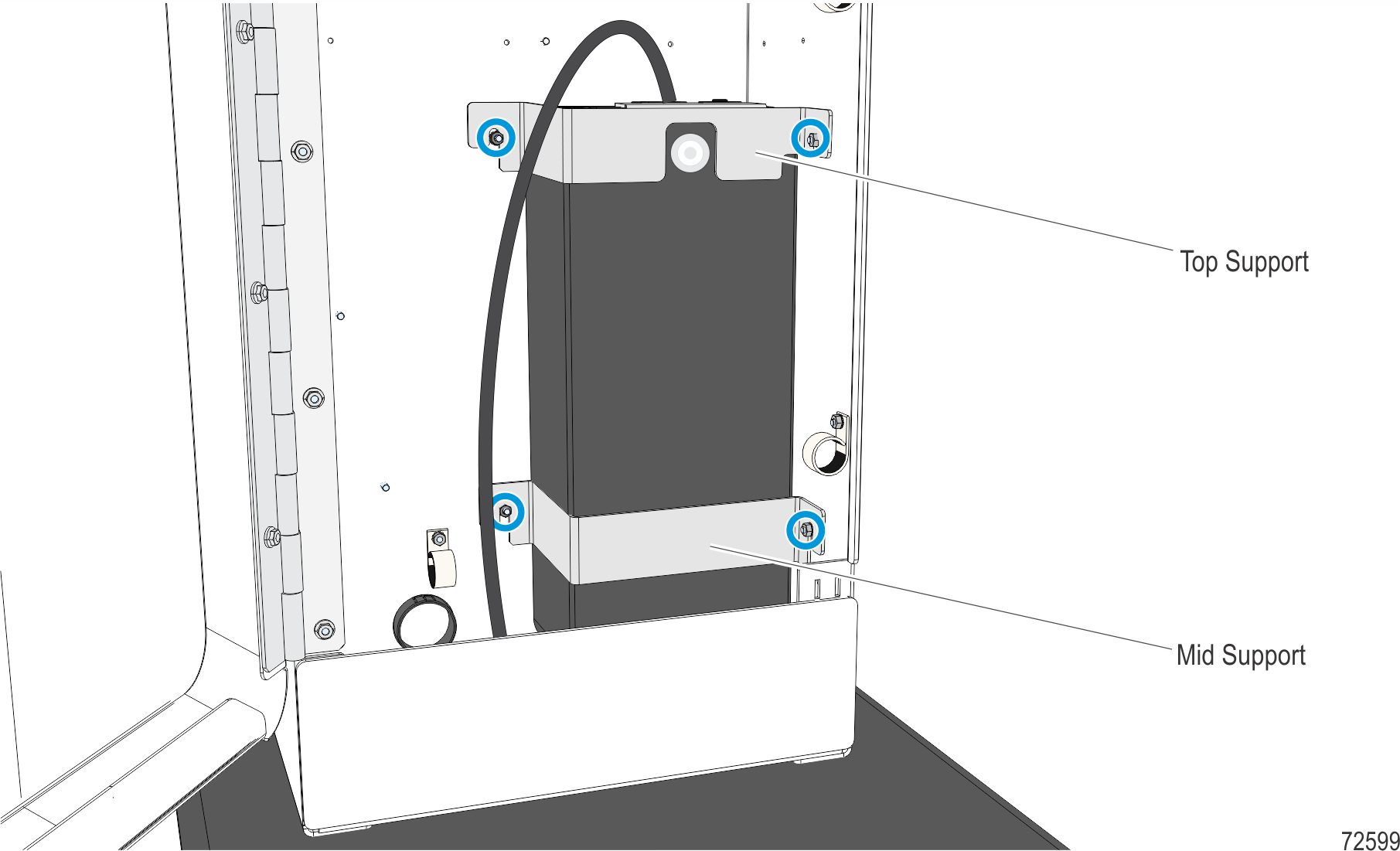

c.Remove the four M4 hex nuts that secure the Mid Support and Top Support brackets. Remove the brackets.

d.Remove the UPS.

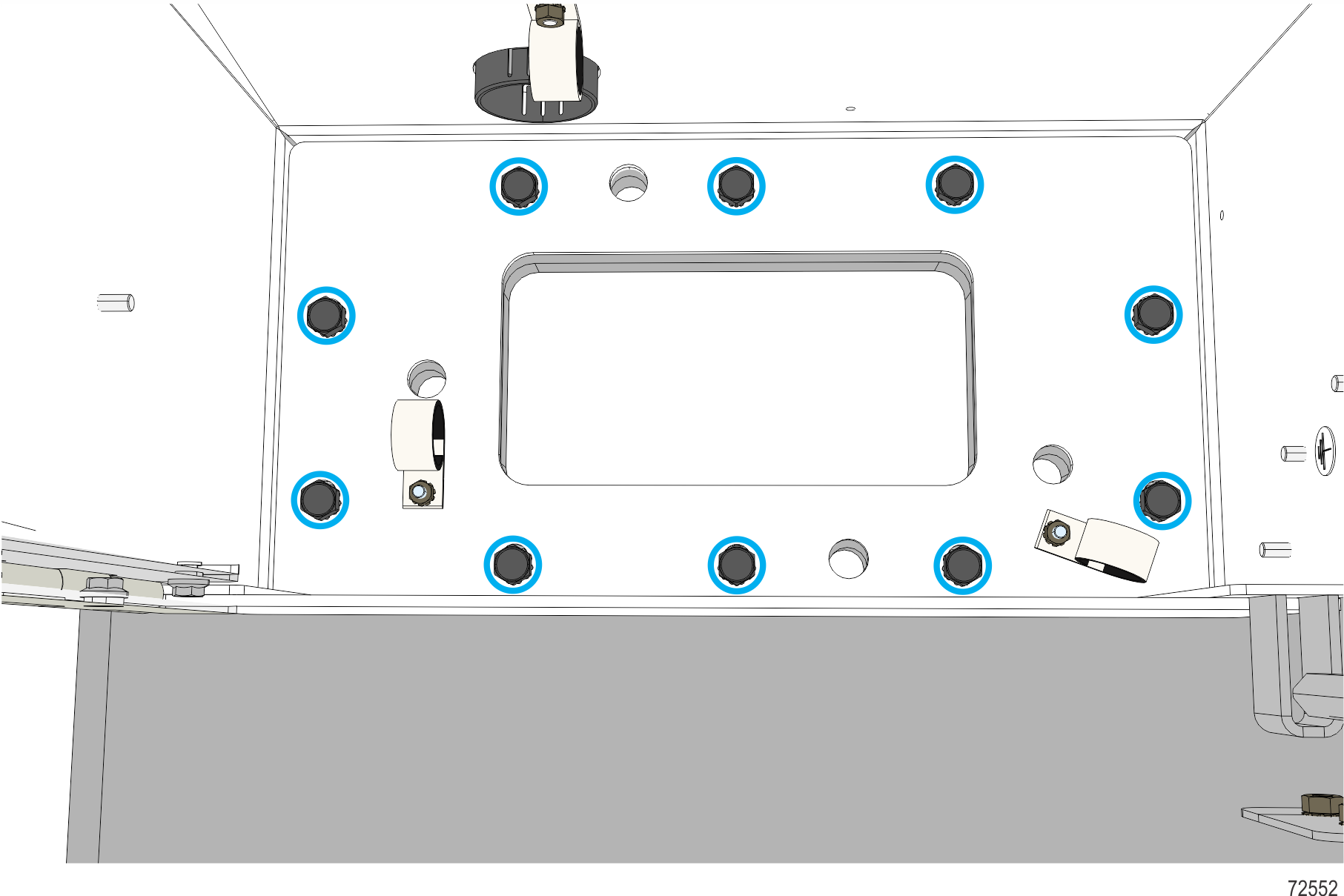

3.While holding the unit for support, remove the ten bolts that mount the pedestal to the temporary base plate.

Caution:  Low headroom on bag tag printer tray and paper roll bracket area.

4.Carefully slide the kiosk to the installation location.

Note:  Make sure all mounting holes on the pedestal are aligned with holes on the floor.

5.Mount and tighten the four anchors.

6.Re-install the UPS.

a.Mount the UPS on the pedestal.

b.Mount the Mid Support and Top Support brackets and secure with four M4 hex nuts.

c.Plug the power cords or cables to the UPS.

d.Route the UPS External cable out of the kiosk through the cable entry hole.
