Connecting the Cables

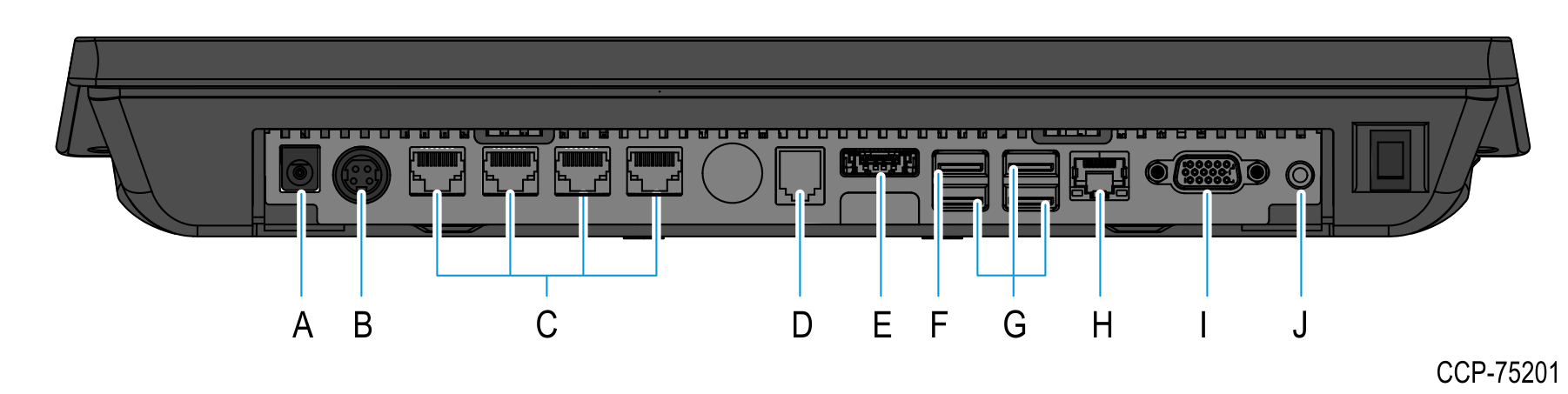

The following are the default I/O ports for the NCR EX15 POS (4505).
|
Port |
Port Name |
Description |
|---|---|---|
|
A |
DC OUT |
12 Vdc power output |
|
B |
DC IN |
19 Vdc power input |
|
C |
COM |
COM 1/2/3/4 connectors |
|
D |
DK |
Cash Drawer output |
|
E |
E-SATAp |
E-SATA + USB connector |
|
F |
USB 3.0 |
(1) USB 3.0 connector |
|
G |
USB 2.0 |
(3) USB 2.0 connectors |
|
H |
LAN |
Gigabit LAN connector |
|
I |
VGA |
VGA output |
|
J |
Line Out |
Audio line output |
