Connecting AC Power

The 7610 receives power from an external 24 V power brick.

Caution:  The 7610 requires the NCR 24 V power supply that is shipped with the terminal. Use of other power bricks may cause damage to the unit.

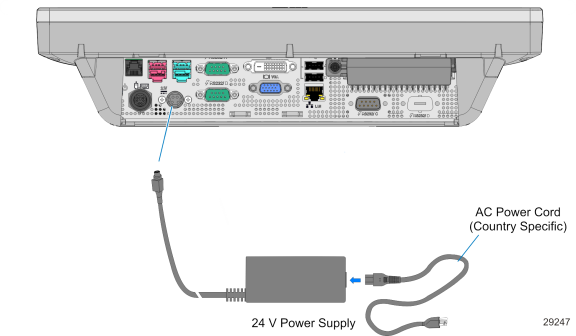

1.Connect the Power Supply cable to the DC Power connector on the terminal.

2.Connect the AC Power Cord to the Power Supply and to an AC outlet.

Caution:  Do not connect or disconnect the 24V Power Cable from the terminal with the AC Power Cord connected to an AC outlet.

Power Supply Bracket

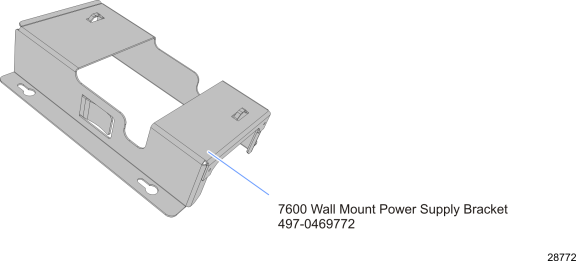

An optional power supply bracket is available to mount the power supply on a vertical surface or under a table top (see the Wall Mount Power Supply Bracket Kit Instructions (7610-K310).

Table-Top Stand w/Power Supply Enclosure

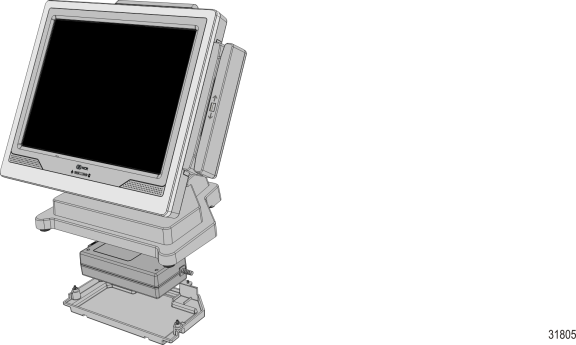

An optional stand is available that has an enclosure for the Power Supply. See the Table-Top Stand Assembly w/Power Supply Enclosure Kit Instructions (7610-K321).

Disconnecting the Power Cable

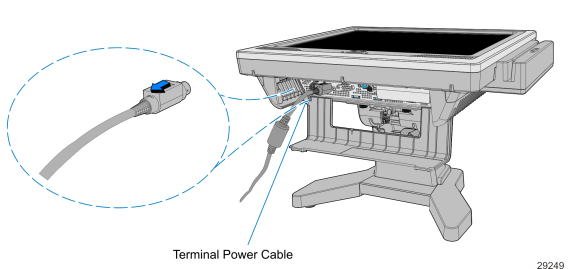

The Power Cable connector locks into position when connected to the terminal and cannot be removed by simply pulling on the cable. You must grasp the connector and slide the outside housing out from the terminal to unlock it from the terminal connector to remove it.
