NCR RealPOS 5943 12-inch LCD Cable Connections

The 5943 LCD Monitor receives video through the VGA or DVI interfaces. Power is received from the terminal using a USB+Power cable.

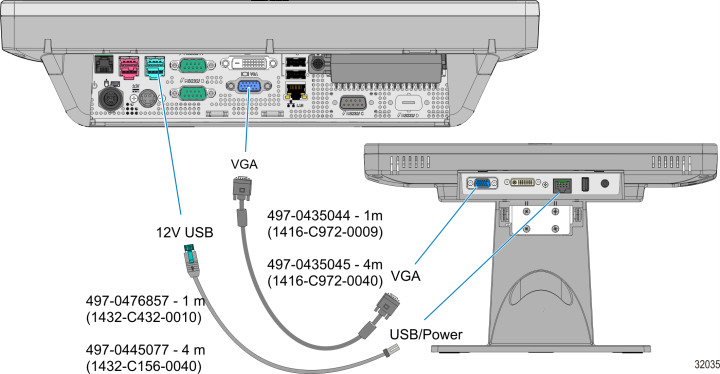

Cable Connections Using VGA Interface

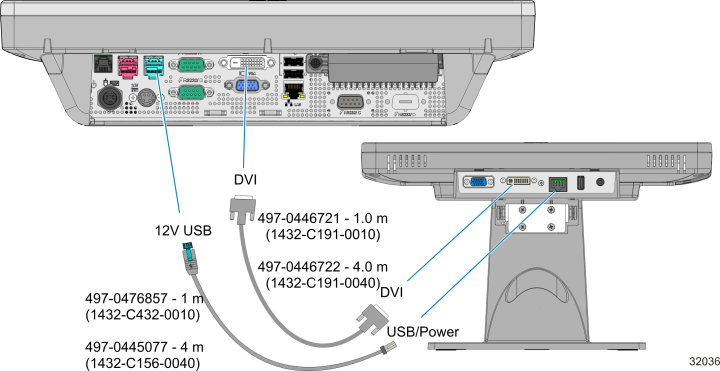

Cable Connections Using DVI Interface
