Installing a Keyboard and Mouse

The 7611 supports USB and PS/2 type keyboards. Only USB mice are supported. See the following examples of supported configurations.

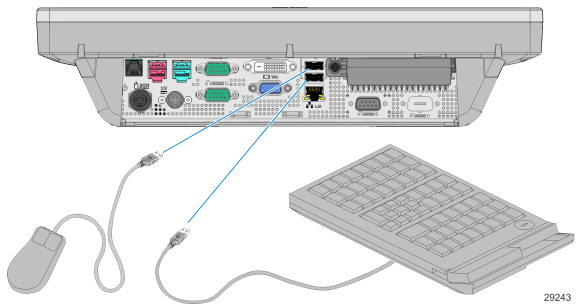

USB Mouse and USB Keyboard

PS/2 Keyboard w/Glide Pad and USB Mouse

Note:  PS/2 Extension Cables cannot be used with a PS/2 Keyboard that has a Glide Pad.

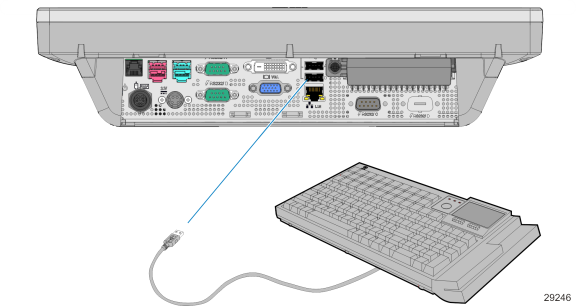

USB Keyboard w/Glide Pad
