Cable Routing

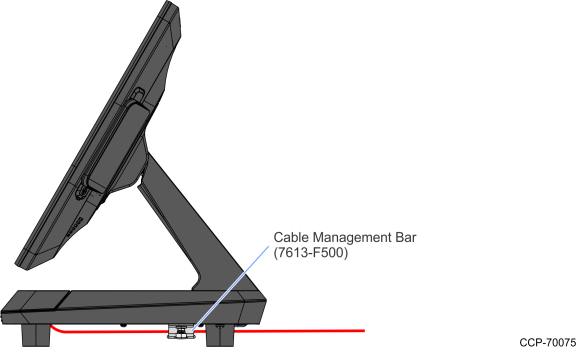

Peripheral cable connectors are located in an opening on the bottom of the terminal. The cables are routed under the terminal and through the Cable Management Bar.

For more detail see the Cable Routing section in the Hardware Installation chapter.
