Operator Controls

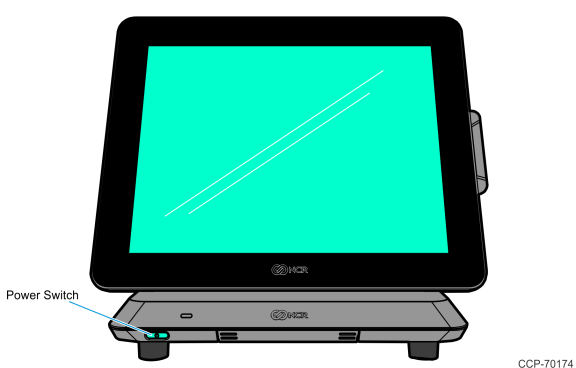

Power Switch
The Power Switch is located on the Front Panel of the POS.
Front Panel Power LED
The Front Panel Power LED has multiple functions as defined below.
| Color | Description |
|---|---|
|
Off |
System OFF or No power, No Video Signal |
|
Green |
System ON |
|
Red |
System SLEEP |

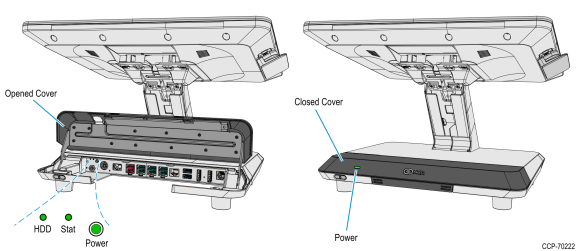

I/O Panel LED Diagnostic Indicators
There are three Status LEDs located on the I/O Panel.
| LED | Color | Description |
|---|---|---|
|
HDD |
Green (Solid or Blinking) |
Indicates HDD activity |
|
Stat |
Off |
System Off, BIOS cannot load, or System Locked |
|
Red (Solid) |
BIOS loaded, executing POST |
|
|
Red (Blinking) |
BIOS Error, POST halted |
|
|
Green (Solid) |
BIOS POST completed, OS loading, or System Locked |
|
|
Green (Blinking) |
OS & NCR Drivers loaded and running |
|
|
Power |
Off |
No power |
|
Orange |
S5 Standby |
|
|
Green |
Power On |
