Logging onto the Terminal Using AMT

After configuring the 7616 you should now be able to log into it from a browser on a remote PC.

1.Determine the target terminal's IP address.

Windows:

Start → All Programs → Accessories → Command Prompt

Enter ipconfig and press [Enter]. The IP address is displayed.

Linux:

Switch Focus to the Instructions window.

Enter ipconfig and press [Enter]. The IP address (Inet adder) is displayed.

2.Open the browser on the PC.

3.Enter the IP address in the Address line. Include the 16992 port.

http://<IP Address>:16992

Note:  The 16992 port number is fixed and cannot be changed.

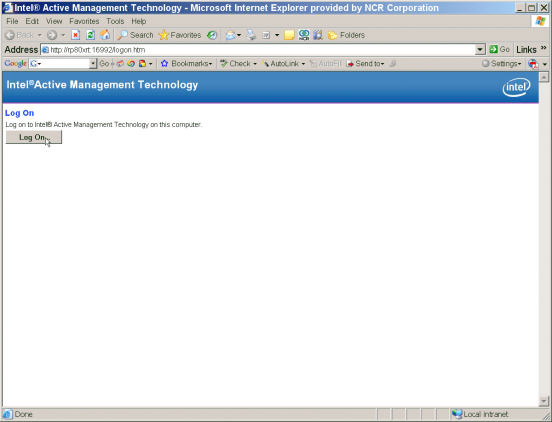

4.The AMT logon screen will appear if you are successful. Select the Log On button to log onto the terminal.

5.Enter the UserName and Password and then select OK.

UserName: admin

Password: <[your password]>

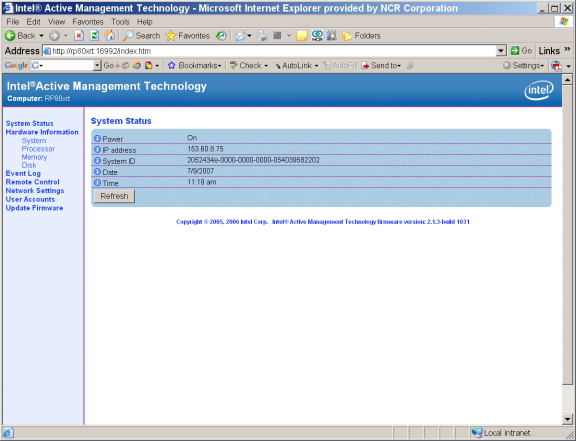

The System Status Screen is displayed. You can now control the AMT functions.
