Camera (F156)

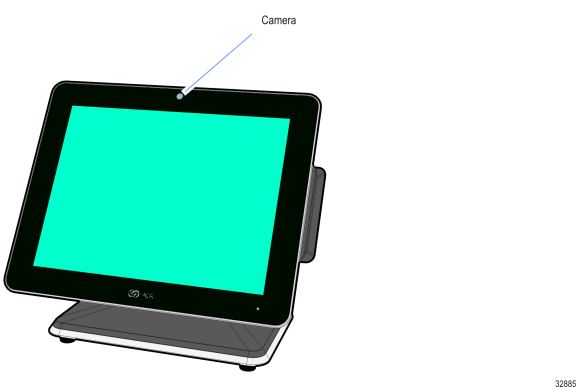

An integrated USB camera can be configured on the front of the display.

The camera module is a high speed USB 2.0 compliant webcam for Laptops. The supported image resolution is 1920 x 1080 FHD (2.0M) size utilizing a CMOS image sensor. The USB module integrates a USB 2.0 controller, color-processing engine and a high quality imager to provide up to 30 fps at FHD (1920x1080) size in high speed mode.

Key Features

•Automatic Exposure Control (AE)

•Automatic White Balance Control (AWB)

•Automatic Gain Control (AGC)

•Image Quality Control ( Brightness, Saturation, Hue, Gamma, Sharpness, Contrast, Backlight, Antiflicker, White Balance )

•Resolution support:

•16:9 1080p (1920x1080), HD720p (1280x720), 540p, 480p, 360p, 240p, 180p

•4:3 1080p (1920x1080), HD720p (1280x720), 540p, 480p, 360p, 240p, 180p

•11:9 CIF (352x288), QCIF (176x144)

•Webcam power saving

•Supported OS Win7, 8, 8.1, 32/64bit, Linux ( UVC class driver)
