Main Kiosk Only

There are two external cables that may need to be connected to the Kiosk:

•Ethernet Cable

•AC Power Cable for Kiosk with no UPS

Note:  For 110V Kiosks with a UPS, the AC external cable may already be pre-connected to the UPS.

To connect these cables, perform the following steps:

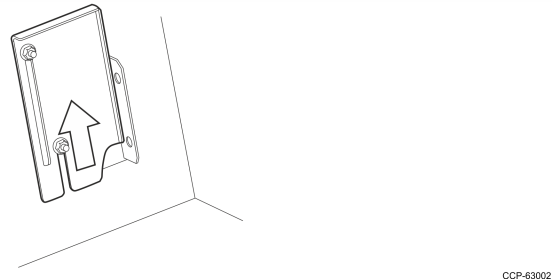

1.Open the cable entry hole by loosening the two nuts holding the cover in place. Slide the cover upwards and secure in place giving easy access to the entry hole.

2.Insert the ends of the cables through the cable entry hole. Pull sufficient length of cables to allow them to be plugged into the relevant sockets.

3.Plug the Ethernet cable into the short flying lead socket on the right-hand side of the security enclosure.

4.Plug the External AC Power Cable.

a.For Kiosk Only configurations with no UPS, plug the Power Cable into the socket on the AC inlet connector.

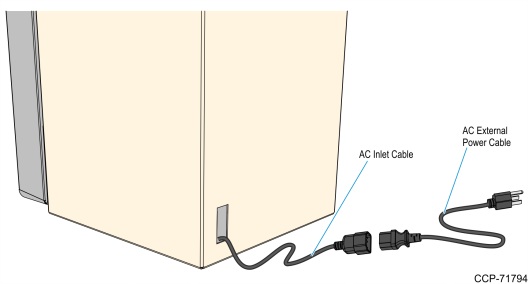

b.For 220V-240V Units with UPS, plug the AC Power Cable to the AC Inlet Cable.

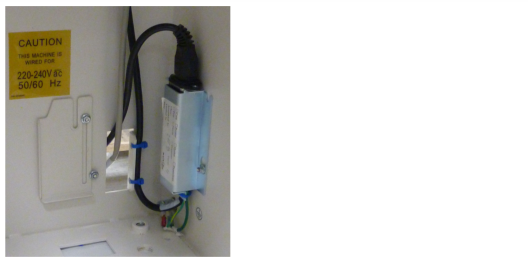

5.Ensure there are no loose cables and they are adequately strain relieved by securing the cables to the metal upright (if fitted) or mounting studs located beside the mains inlet using P-clips or cable ties provided in the accessories bag.

6.Check that the cables do not interfere with the operation or racking out of any modules.

7.Close and lock the security enclosure.

8.Close the front panel door.
