Installing the Verifone VX 805/VX 820 PIN Pad

1.Unlock and open the fascia.

2.Remove four nuts to remove the pin pad mounting bracket from the fascia.

3.Remove the two nuts to remove the PIN pad cable cover from the mounting bracket.

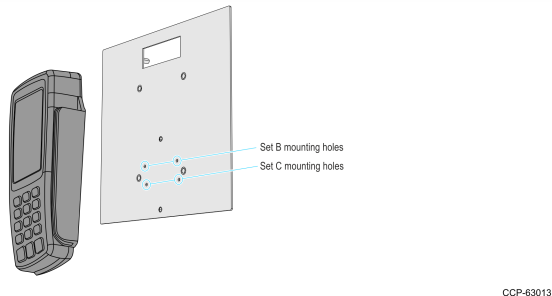

4.Connect the PIN Pad cable to the PIN pad and route the other end of the cable through the access hole on the mounting bracket.

5.Position and secure the PIN pad on the mounting bracket using two screws in the appropriate mounting holes.

•Use Set B mounting holes for Verifone VX 805

•Use Set C mounting holes for Verifone VX 820

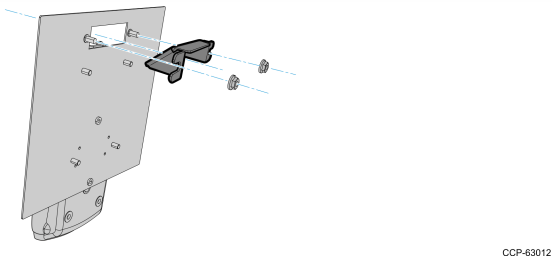

6.From behind the bracket, insert the pin pad cable cover and secure it to the bracket with two nuts.

7.Route the USB connector of the PIN pad cable through the adapter bracket access hole on the fascia.

8.Mount the mounting bracket and PIN pad assembly on the fascia and secure it on the rear side with four nuts.

9.Route and connect the USB connector of the PIN pad cable to the USB 1 Port of the motherboard. Secure the cable with cable ties as shown below.
