Turning ON the Kiosk

The kiosk should be switched ON using the power switch located in the top-box, power switch in the Sidecar if present, and the UPS power switch if present.

1.Plug the AC power cable to an AC power source.

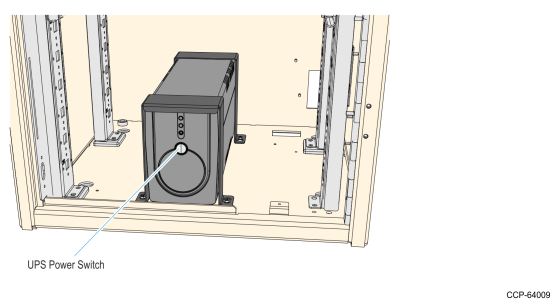

2.If present, push the UPS Power Switch to turn it ON.

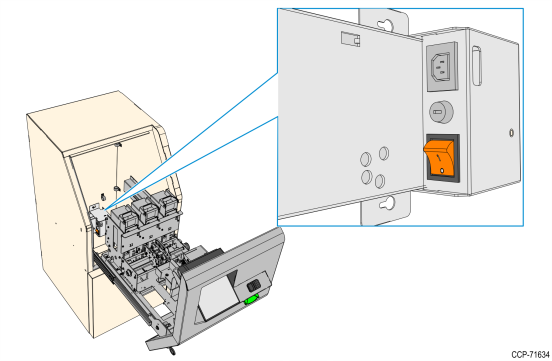

3.Push the Top Box PSU switch to the "I" position.

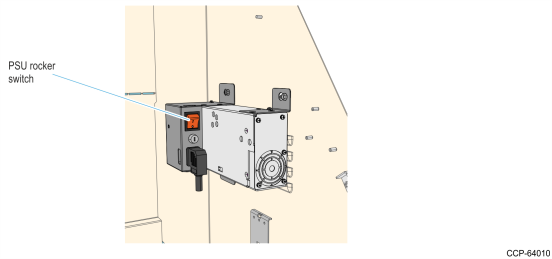

4.If a Sidecar is present, push the Sidecar PSU switch to the "I" position.
