Connecting AC Power

The NCR CX8 POS (7736) receives power from an external 24V power brick.

Caution

The CX8 requires the NCR 24V Power Supply that is shipped with the terminal. Use of other power bricks may cause damage to the unit.

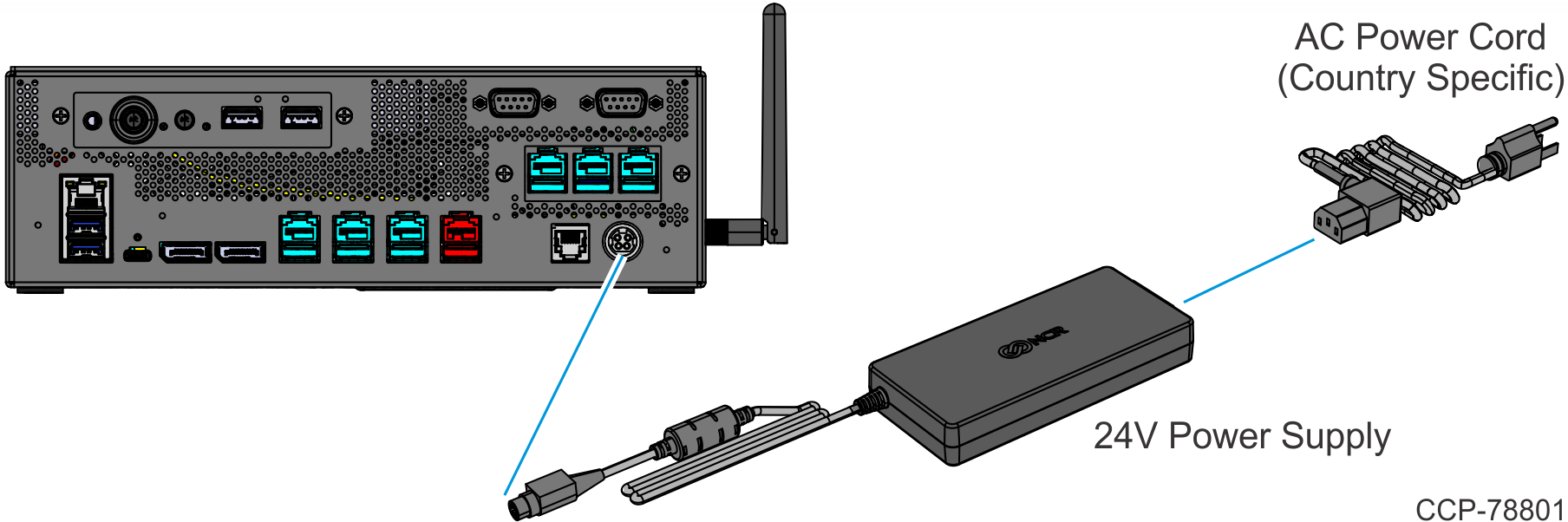

  1. Connect the Power Supply Cable to the Power In connector on the terminal.
  2. Connect the AC Power Cord to the Power Supply and to an AC outlet.

    Caution Do not connect or disconnect the Power Cable from the terminal with the AC Power Cord connected to an AC outlet.
